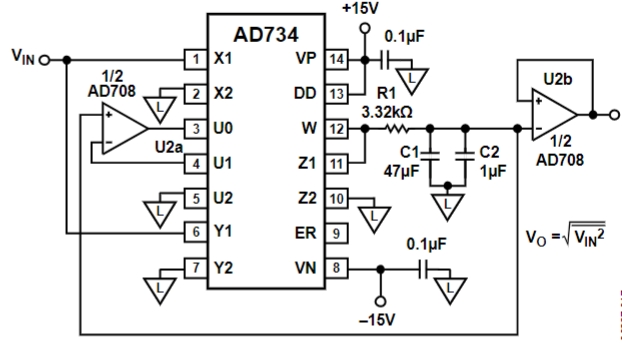

AD734ANZ Typical application Circuitry

AD734ANZ

The AD734ANZ is a versatile, high-precision, four-quadrant analog multiplier chip. It's capable of directly multiplying two analog signals, delivering an output that is the product of the two inputs. This chip finds its application in a wide array of scenarios, including signal processing, modulation, and automatic gain control circuits. Its broad bandwidth of up to 10 MHz, great precision, and versatility in operating temperature range are some of its salient characteristics.

Application Scenario: Amplitude Modulation (AM) Circuit

In this example, we'll use the AD734ANZ to create an amplitude modulation circuit, a fundamental application in communication systems.

1. Signal Inputs: Connect the AD734ANZ carrier signal to pin 2 (Y1 input) and the modulating signal to pin 14 (X1 input). These inputs are the two signals you want to multiply.

2. Power Supply: Apply a +15V supply to pin 16 (V+) and a -15V supply to pin 4 (V-). Proper power supply ensures the chip operates within its specified range.

3. Output Filtering: Connect a low-pass filter to pin 6 (W output) to extract the desired modulated signal. This step is crucial to remove high-frequency components.

4. Biasing: Set the scale factor by connecting a precision resistor between pins 8 (Scale) and 10 (Vz). For a typical application, a 12.5kΩ resistor sets a scale factor of 0.1.

5. Grounding: Connect pin 12 (GND) to the circuit ground. Proper grounding is essential for noise reduction and stable operation.

Design Considerations

When designing a circuit with the AD734ANZ, it's important to consider the following:

- Input Signal Range: Ensure that the input signals are within the acceptable range to prevent distortion.

- Power Supply: Stable and clean power supply rails are crucial for accurate operation.

- Thermal Management: Since precision analog circuits can be sensitive to temperature variations, it's important to consider thermal management in your design.

- Layout: Minimize the length of signal paths and avoid routing sensitive analog signals near noisy digital lines to reduce interference.

These instructions will help you create dependable and efficient analog multiplication circuits for a range of uses by utilizing the AD734ANZ's capabilities.
