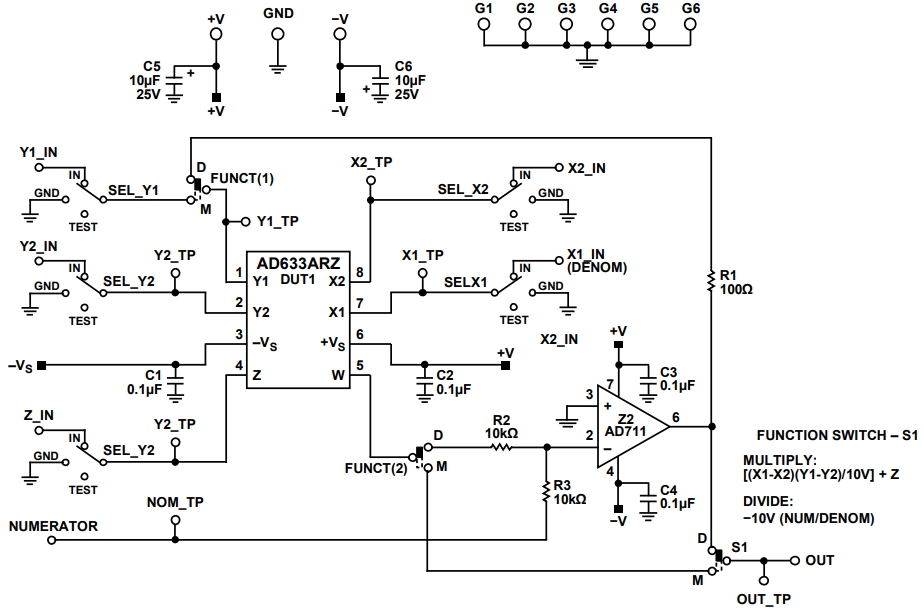

AD633JRZ-RL Typical application Circuitry

AD633JRZ-RL

The AD633JRZ-RL is a chip designed for analog signal multiplication, making it a crucial component in various signal processing applications. It stands out for its ability to perform four-quadrant multiplication, meaning it can handle both positive and negative input signals.

Key Features of the AD633JRZ-RL:

1. Four-Quadrant Multiplication: Enables the AD633JRZ-RL to multiply a wide range of input signals.

2. Integrated Scaling: The output is scaled down by a factor of 1/10, simplifying signal management.

3. Flexible Power Supply: The AD633JRZ-RL operates with a supply voltage from ±8V to ±18V.

4. Energy Efficiency: Low power consumption makes the AD633JRZ-RL suitable for battery-powered devices.

Application Scenario: Modulating Light Intensity in an LED Display

In this scenario, the AD633JRZ-RL is used to modulate the intensity of an LED display based on an audio signal, creating a visual representation of the sound.

Detailed Circuit Connection:

1. Power Supply: Connect +15V to pin 8 (V+) and -15V to pin 5 (V-) of the AD633JRZ-RL.

2. Audio Input: Connect the audio signal to pin 2 (X1) and ground pin 3 (X2) of the AD633JRZ-RL.

3. Brightness Control: Connect a DC voltage representing the desired brightness level to pin 6 (Y1) and ground pin 7 (Y2) of the AD633JRZ-RL.

4. LED Output: The modulated signal, available at pin 1 (W) of the AD633JRZ-RL, controls the intensity of the LED display.

5. Scaling Adjustment: A resistor connected between pin 4 (Z) and ground of the AD633JRZ-RL can be used to fine-tune the scaling factor.

6. Noise Filtering: Place capacitors near the power supply pins and the output pin to filter out noise and ensure stable operation.

Design Considerations:

- Signal Range: Ensure that the audio input signal is within the acceptable range of the AD633JRZ-RL to prevent distortion.

- Impedance Matching: Match the input and output impedance of the AD633JRZ-RL to the rest of the circuit for optimal signal transfer.

- Noise Management: Use shielding techniques to minimize noise pickup in the audio signal.

- Thermal Stability: Monitor the temperature of the AD633JRZ-RL to prevent any thermal-related issues in the modulation accuracy.

By employing the AD633JRZ-RL in an LED display modulation circuit, the intensity of the LEDs can be dynamically controlled based on the audio input, creating a visually appealing representation of the sound. Careful circuit design and component selection will ensure the smooth operation and longevity of the LED display system.
