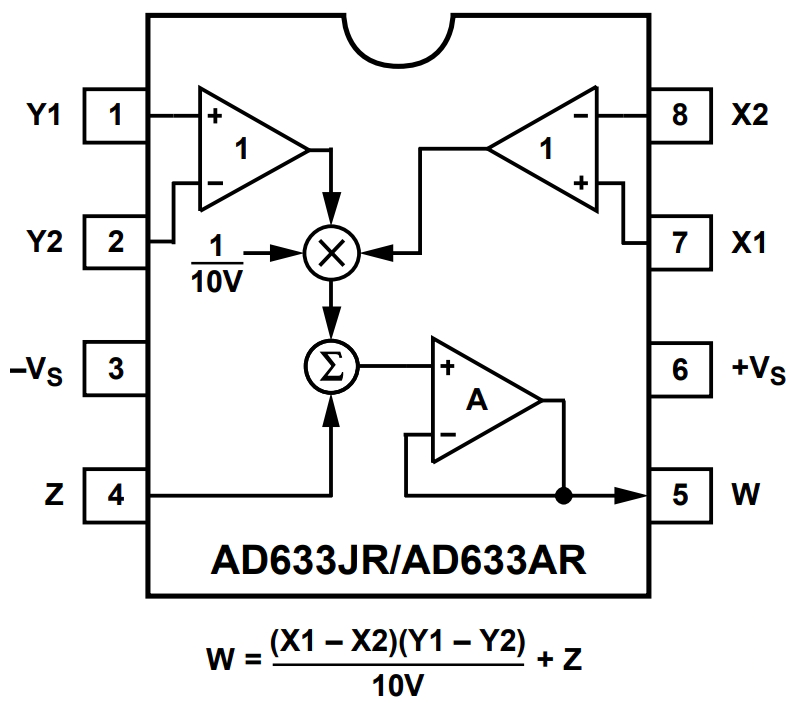

AD633JR Typical application Circuitry

AD633JR

The AD633JR is an analog multiplier chip renowned for its versatility in signal processing applications. It is capable of performing four-quadrant multiplication, which is essential in various scenarios such as modulation, demodulation, and signal conditioning.

Key Features:

1. Four-Quadrant Multiplication: Enables multiplication of both positive and negative input signals.

2. Built-In Scaling Factor: The AD633JR output is inherently scaled by a factor of 1/10, facilitating easier integration into circuits.

3. Wide Supply Voltage Range: Operates with a supply voltage range of ±8V to ±18V, accommodating diverse application requirements.

4. Low Power Consumption: Ideal for battery-operated devices or energy-efficient systems.

Application Scenario: Phase Detection in Communication Systems

In this scenario, the AD633JR is employed as a phase detector in a communication system to compare the phase difference between two signals.

Detailed Circuit Connection:

1. Power Supply: Connect +15V to pin 8 (V+) and -15V to pin 5 (V-).

2. Reference Signal: Connect the reference signal to pin 2 (X1) and ground pin 3 (X2).

3. Input Signal: Connect the signal whose phase is to be detected to pin 6 (Y1) and ground pin 7 (Y2).

4. Output Connection: The phase difference information is available at pin 1 (W) as a DC voltage proportional to the phase difference.

5. Scaling Factor Adjustment: Connect a resistor between pin 4 (Z) and ground to adjust the scaling factor if necessary.

6. Filtering: Place capacitors near the power supply pins and the output pin to filter out noise and ensure stable operation.

Design Considerations:

- Signal Amplitude: Ensure that the amplitude of the input signals is within the acceptable range to prevent clipping or distortion.

- Impedance Matching: Properly match the input and output impedance to the rest of the system to maintain signal integrity.

- Noise Reduction: Implement shielding and grounding techniques to minimize noise pickup in the signals.

- Temperature Stability: Monitor the temperature of the AD633JR to prevent thermal drift in the phase detection accuracy.

Utilizing the AD633JR in phase detection within communication systems allows for accurate comparison of signal phases, which is crucial for demodulation and signal synchronization. Attention to circuit design and component selection will ensure optimal performance and reliability in phase detection applications.
