Allegro MicroSystems ACS773ECB-200B-PFF-T

Part No.:: ACS773ECB-200B-PFF-T

Manufacturer:: Allegro MicroSystems

Package:: 5-CB Formed Leads, PFF

Datasheet:: ACS773ECB-200B-PFF-T.pdf

Description:: SENSOR CURRENT HALL 200A 5-CB

In Stock:: 3648

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACS773ECB-200B-PFF-T Specifications

Packaging:
Tube
Series:
Automotive, AEC-Q100
ProductStatus:
Active
ForMeasuring:
AC/DC
SensorType:
Hall Effect
Current-Sensing:
200A
NumberofChannels:
1
Output:
Ratiometric, Voltage
Sensitivity:
6.6mV/A
Frequency:
DC ~ 200kHz
Linearity:
±0.9%
Accuracy:
-
Voltage-Supply:
3V ~ 3.6V
ResponseTime:
2.5µs
Current-Supply(Max):
15mA
OperatingTemperature:
-40°C ~ 85°C (TA)
Polarization:
Bidirectional
MountingType:
Through Hole

ACS773ECB-200B-PFF-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACS773ECB-200B-PFF-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACS773ECB-200B-PFF-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACS773ECB-200B-PFF-T information

Views：

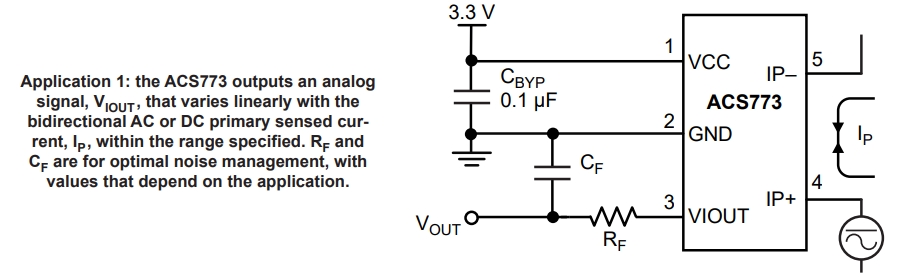

ACS773ECB-200B-PFF-T Typical application Circuitry

ACS773ECB-200B-PFF-T

The ACS773ECB-200B-PFF-T chip is a current sensor based on the Hall effect principle, capable of accurately measuring both AC and DC currents up to 200A. This sensor is known for its high accuracy, fast response time, and electrical isolation between the sensing element and the output signal. Applications including battery management systems, power supply monitoring, and motor control frequently employ it.

Example of Application: Industrial Automation's Motor Control

1. Integrated Current Sensing: Install the ACS773ECB-200B-PFF-T sensor in an industrial motor's power circuit. To measure the current flowing to the motor, connect the IP+ and IP-pins of the sensor in series with the power supply line of the motor.

2. Monitoring Voltage Output: An analog voltage output proportionate to the measured current is provided by the sensor's VOUT pin. To process the ACS773ECB-200B-PFF-T current measurements digitally, connect this pin to an analog-to-digital converter (ADC) input on a motor control unit (MCU).

3. Sensor Power source: To ensure steady functioning, power the sensor by attaching its VCC pin to a controlled 5V source. The common ground of the system must be linked to the ground pin (GND).

4. Noise Reduction: To minimize noise in the current measurement, add a low-pass filter between the VOUT pin and the ADC input. This can be achieved with a simple RC filter comprising a resistor and a capacitor.

When designing a circuit with the ACS773ECB-200B-PFF-T sensor, it is crucial to consider the following:

- Isolation: Maintain electrical isolation between the high-current path and the low-voltage measurement circuitry to ensure safety and prevent interference.

- Thermal Management: Monitor the sensor's temperature, as it can heat up with high current flow. Implement appropriate cooling measures if necessary.

- Calibration: Calibrate the sensor output to account for any offsets or non-linearities, ensuring accurate current measurements for motor control.

By integrating the ACS773ECB-200B-PFF-T sensor into the motor control system of industrial automation equipment, precise monitoring and control of the motor current can be achieved, enhancing efficiency and reliability in industrial processes.
