Allegro MicroSystems ACS759LCB-100B-PFF-T

Part No.:: ACS759LCB-100B-PFF-T

Manufacturer:: Allegro MicroSystems

Package:: 5-CB Formed Leads, PFF

Datasheet:: ACS759LCB-100B-PFF-T.pdf

Description:: SENSOR CURRENT HALL 100A AC/DC

In Stock:: 2223

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACS759LCB-100B-PFF-T Specifications

Packaging:
Bulk,Tube
Series:
-
ProductStatus:
Active
ForMeasuring:
AC/DC
SensorType:
Hall Effect, Open Loop
Current-Sensing:
100A
NumberofChannels:
1
Output:
Ratiometric, Voltage
Sensitivity:
13.2mV/A
Frequency:
DC ~ 120kHz
Linearity:
±1%
Accuracy:
±4%
Voltage-Supply:
3V ~ 3.6V
ResponseTime:
4µs
Current-Supply(Max):
13.5mA
OperatingTemperature:
-40°C ~ 150°C
Polarization:
Bidirectional
MountingType:
Through Hole

ACS759LCB-100B-PFF-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACS759LCB-100B-PFF-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACS759LCB-100B-PFF-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACS759LCB-100B-PFF-T information

Views：

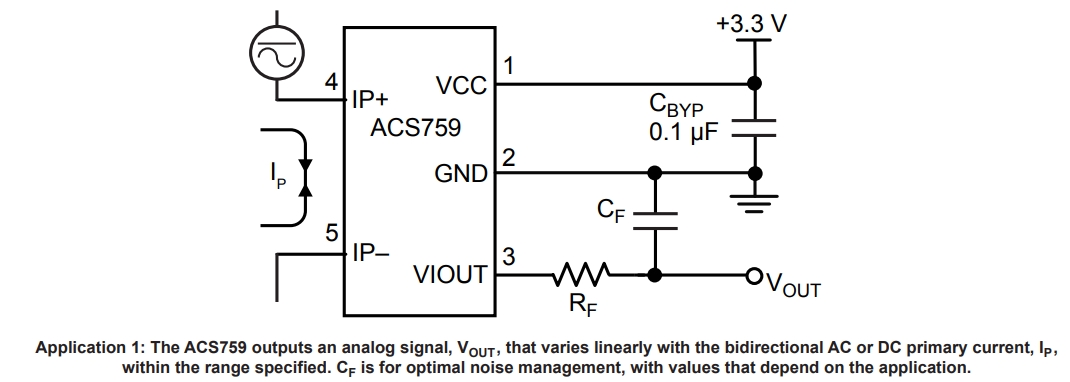

ACS759LCB-100B-PFF-T Typical application Circuitry

ACS759LCB-100B-PFF-T

The ACS759LCB-100B-PFF-T is a current sensor IC that provides precise and isolated current sensing. It uses a Hall effect sensing mechanism and has a low-resistance current conductor, making it appropriate for high-current applications.

Typical uses are as follows:

- Motor Control: For monitoring and controlling the current in motor drives.

- Power Supply Monitoring: To ensure proper current flow in power supply units.

- Battery Management: For monitoring charge and discharge currents in battery systems.

Key Features:

1. 100A Current Sensing Range: able to measure currents up to 100A, including DC and AC.

2. Low Resistance Path: Provides a low-resistance path for current flow, minimizing power loss.

3. Isolated Sensing: Offers galvanic isolation between the sensed current path and the sensor's output, enhancing safety.

Application Scenario - Motor Control:

In a motor control circuit, the ACS759LCB-100B-PFF-T can be used to monitor the current flowing through the motor for efficient and safe operation. Here's a detailed circuit design:

1. Current Path Connection: Connect the ACS759LCB-100B-PFF-T motor's positive terminal to the IP+ pin (Pin 5) and the negative terminal to the IP- pin (Pin 6) of the ACS759LCB-100B-PFF-T. This configures the sensor in series with the motor, allowing it to measure the current flowing through it.

2. Voltage Output Connection: Connect the VIOUT pin (Pin 3) to an analog input of a microcontroller or ADC. This pin provides a voltage proportional to the sensed current.

3. Supply Voltage: Connect a 5V supply to the VCC pin (Pin 8) and ground to the GND pin (Pin 1).

4. Filter Capacitor: Place a capacitor between the VIOUT pin and ground to filter noise from the output signal.

Design Considerations:

- Proper Calibration: Calibrate the output voltage to current conversion to ensure accurate current measurements.

- Thermal Management: Monitor the temperature of the sensor and ensure proper heat dissipation to prevent overheating.

- Signal Integrity: Reduce noise in the present sensor signal by using appropriate routing and shielding strategies.

- Safety Measures: Ensure that the sensor is properly isolated from high voltage circuits for safety.

By using the ACS759LCB-100B-PFF-T in a motor control application, designers can achieve precise current monitoring, which is essential for optimizing motor performance and protecting the system from overcurrent conditions.
