Name: ACS758ECB-200U-PFF-T
Brand: Allegro MicroSystems
SKU: ACS758ECB-200U-PFF-T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Allegro MicroSystems ACS758ECB-200U-PFF-T

Part No.:: ACS758ECB-200U-PFF-T

Manufacturer:: Allegro MicroSystems

Package:: 5-CB Formed Leads, PFF

Datasheet:: ACS758ECB-200U-PFF-T.pdf

Description:: SENSOR CURRENT HALL 200A 5-CB

In Stock:: 3911

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACS758ECB-200U-PFF-T Specifications

Packaging:
Tube
Series:
Automotive, AEC-Q100
ProductStatus:
Active
ForMeasuring:
DC
SensorType:
Hall Effect, Open Loop
Current-Sensing:
200A
NumberofChannels:
1
Output:
Ratiometric, Voltage
Sensitivity:
20mV/A
Frequency:
DC ~ 120kHz
Linearity:
±1%
Accuracy:
±1.2%
Voltage-Supply:
3V ~ 5.5V
ResponseTime:
4µs
Current-Supply(Max):
13.5mA
OperatingTemperature:
-40°C ~ 85°C
Polarization:
Unidirectional
MountingType:
Through Hole

ACS758ECB-200U-PFF-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACS758ECB-200U-PFF-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACS758ECB-200U-PFF-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACS758ECB-200U-PFF-T information

Views：

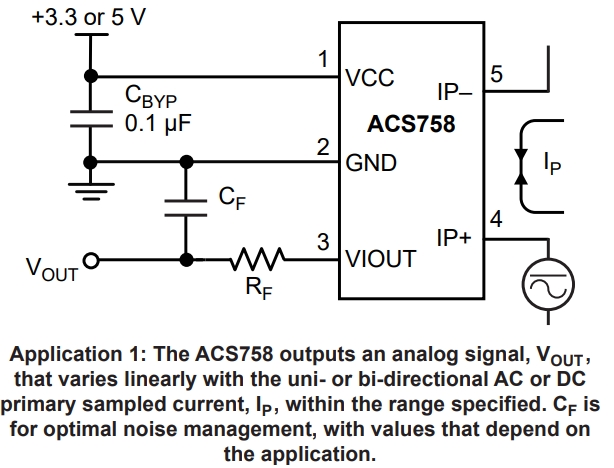

ACS758ECB-200U-PFF-T Typical application Circuitry

ACS758ECB-200U-PFF-T

Allegro Microsystems produces the ACS758ECB-200U-PFF-T, a linear current sensor integrated circuit based on the Hall effect. With the use of a Hall sensor to identify the magnetic field produced by current passing through a conductor, it is intended to measure both DC and AC currents with exceptional accuracy.

Key Specifications:

- Current Measurement Range: ±200A

- Supply Voltage: 3V to 5.5V

- Sensitivity: 20 mV/A

- Isolation Voltage: Up to 3 kVRMS

- Package: CB-PFF, a small footprint package with exposed pads for enhanced thermal performance

Application Scenario: Motor Control System

In a motor control system, the ACS758ECB-200U-PFF-T can be used to monitor the current drawn by the motor for protection and control purposes.

1. Power Supply Connection: Connect a stable 5V supply to the VCC pin (Pin 1) and ground to the GND pin (Pin 2) of the sensor.

2. Current Measurement: Use the ACS758ECB-200U-PFF-T sensor's integrated current conductor to route the motor's current. Usually, the IP+ (Pin 3) and IP- (Pin 4) pins are in the current path.

3. Output Connection: Connect the ACS758ECB-200U-PFF-T sensor's VIOUT pin (Pin 5) to an analog input of a microcontroller or a data acquisition system for current monitoring.

4. Filtering: Add a capacitor between the VIOUT pin and GND to filter high-frequency noise if necessary.

5. Calibration: Perform calibration by measuring the output voltage at known current values to ensure accurate readings.

Design Considerations:

- Orientation: Ensure that the current flows in the correct direction through the sensor to obtain accurate measurements.

- Thermal Management: Monitor the temperature of the sensor and provide adequate cooling if necessary, as the device can heat up at high current levels.

- Electrical Isolation: The sensor provides galvanic isolation between the current path and the sensor's output, ensuring safety in high-voltage applications.

- Signal Processing: Implement appropriate signal processing algorithms to convert the output voltage to current values, considering the sensor's sensitivity.

- Protection: Add protection circuitry to prevent damage to the sensor and the connected systems in case of overcurrent conditions.

By incorporating the ACS758ECB-200U-PFF-T into a motor control system, designers can achieve precise current monitoring, enabling efficient motor control and protection against overcurrent situations. Careful consideration of orientation, thermal management, electrical isolation, signal processing, and protection is essential for successful implementation.
