Name: ACS756SCB-100B-PFF-T
Brand: Allegro MicroSystems
SKU: ACS756SCB-100B-PFF-T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Allegro MicroSystems ACS756SCB-100B-PFF-T

Part No.:: ACS756SCB-100B-PFF-T

Manufacturer:: Allegro MicroSystems

Package:: 5-CB Formed Leads, PFF

Datasheet:: ACS756SCB-100B-PFF-T.pdf

Description:: SENSOR CURRENT HALL

In Stock:: 3682

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACS756SCB-100B-PFF-T Specifications

Packaging:
Tube
Series:
-
ProductStatus:
Active
ForMeasuring:
AC/DC
SensorType:
Hall Effect, Open Loop
Current-Sensing:
100A
NumberofChannels:
1
Output:
Ratiometric, Voltage
Sensitivity:
20mV/A
Frequency:
DC ~ 120kHz
Linearity:
±1.75%
Accuracy:
±7%
Voltage-Supply:
3V ~ 5.5V
ResponseTime:
3µs
Current-Supply(Max):
14mA
OperatingTemperature:
-20°C ~ 85°C
Polarization:
Bidirectional
MountingType:
Through Hole

ACS756SCB-100B-PFF-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACS756SCB-100B-PFF-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACS756SCB-100B-PFF-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACS756SCB-100B-PFF-T information

Views：

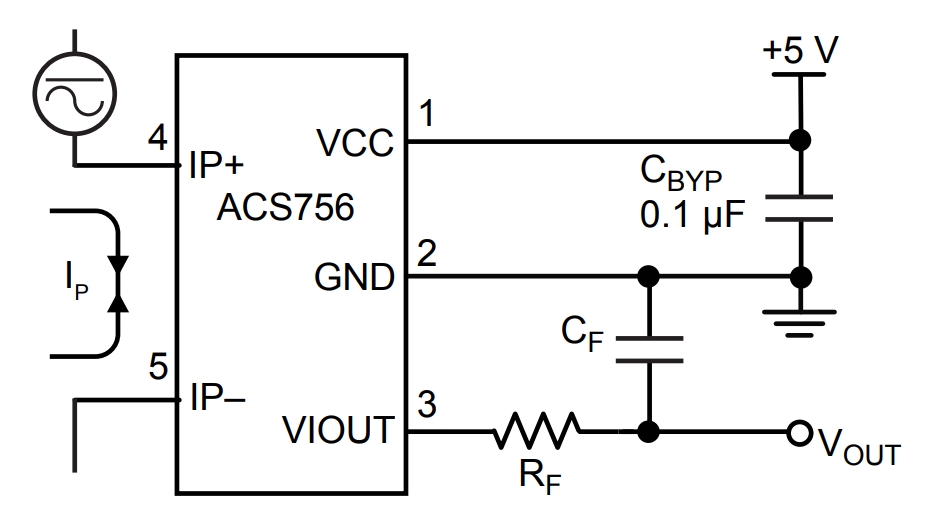

ACS756SCB-100B-PFF-T Typical application Circuitry

ACS756SCB-100B-PFF-T embodies innovation in the domain of current sensing. Employing the Hall effect principle, this chip stands out by allowing precise detection of both AC and DC currents and their translation into an analog voltage signal.

Functionality Expressed:

- Hall-effect Based Sensing: The core of ACS756SCB-100B-PFF-T lies in the Hall effect mechanism where a magnetic field's effect on a current-carrying conductor produces a voltage.

- Sensing Range: Designed to sense currents up to ±100A, it ensures broad application usability.

- Output Format: Unlike some chips, it provides an analog output, ideal for a plethora of applications requiring varying degrees of sensitivity.

Applicability Explored:

1. Motor control systems.

2. Battery monitors.

3. Load detection and management.

4. Power supplies requiring feedback control.

Scenario Deep Dive: Motor Control Systems:

1. Energizing the Chip:

- Power Connection: Link the VCC pin of the ACS756SCB-100B-PFF-T to a 5V power source. To close the circuit, anchor the GND pin to the system's common ground.

2. Routing the Current:

- Inclusive Sensing: Guide the current, which is the subject of measurement, through the ACS756SCB-100B-PFF-T's IP+ and IP- terminals. This configuration is vital to ensure that the chip senses the entire current range seamlessly.

3. Gleaning the Output:

- Analog Integration: Couple the VIOUT (Voltage Output) pin of ACS756SCB-100B-PFF-T to an analog input of a dedicated microcontroller. This facilitates the microcontroller to decipher the sensed current's intensity, enabling it to manage the motor's speed or direction based on the feedback.

4. Signal Integrity Maximization:

- Filtering Strategy: Place a capacitor between the VIOUT pin of the ACS756SCB-100B-PFF-T and ground. This strategy diminishes noise, making the output more stable.

Design Thoughtfulness:

- Magnetic Interference: It's imperative to isolate the ACS756SCB-100B-PFF-T from any intrusive magnetic fields. This precaution ensures that readings remain pristine and free from distortions.

- Thermal Dynamics: Given the ACS756SCB-100B-PFF-T's sensitivity to temperature fluctuations, maintain its ambient temperature within recommended bounds. If it's subjected to elevated currents regularly, consider integrating passive cooling solutions.

- Calibration Nuances: For precision-centric applications, calibrate the ACS756SCB-100B-PFF-T within its destined operational milieu.

- Safety Armor: Safeguarding the ACS756SCB-100B-PFF-T against unexpected electrical spikes by integrating appropriate surge protection measures is non-negotiable.

In summation, the ACS756SCB-100B-PFF-T epitomizes the pinnacle of current sensing technology. With judicious deployment, it can be the cornerstone of sophisticated electronic systems.
