What is the Additional Feature ?

Name: ACS720KLATR-15AB-T
Brand: Allegro MicroSystems
SKU: ACS720KLATR-15AB-T
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Allegro MicroSystems ACS720KLATR-15AB-T

Part No.:: ACS720KLATR-15AB-T

Manufacturer:: Allegro MicroSystems

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: ACS720KLATR-15AB-T.pdf

Description:: CURRENT SENSOR

In Stock:: 500

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ACS720KLATR-15AB-T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
ACS720
ProductStatus:
Active
ForMeasuring:
AC/DC
SensorType:
Hall Effect, Open Loop
Current-Sensing:
15A
NumberofChannels:
1
Output:
Ratiometric, Current
Sensitivity:
90mV/A
Frequency:
120kHz
Linearity:
±0.75%
Accuracy:
±1.6%
Voltage-Supply:
4.5V ~ 5.5V
ResponseTime:
4µs (Typ)
Current-Supply(Max):
16mA
OperatingTemperature:
-40°C ~ 125°C
Polarization:
Bidirectional
MountingType:
Surface Mount

ACS720KLATR-15AB-T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ACS720KLATR-15AB-T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ACS720KLATR-15AB-T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ACS720KLATR-15AB-T information

Views：

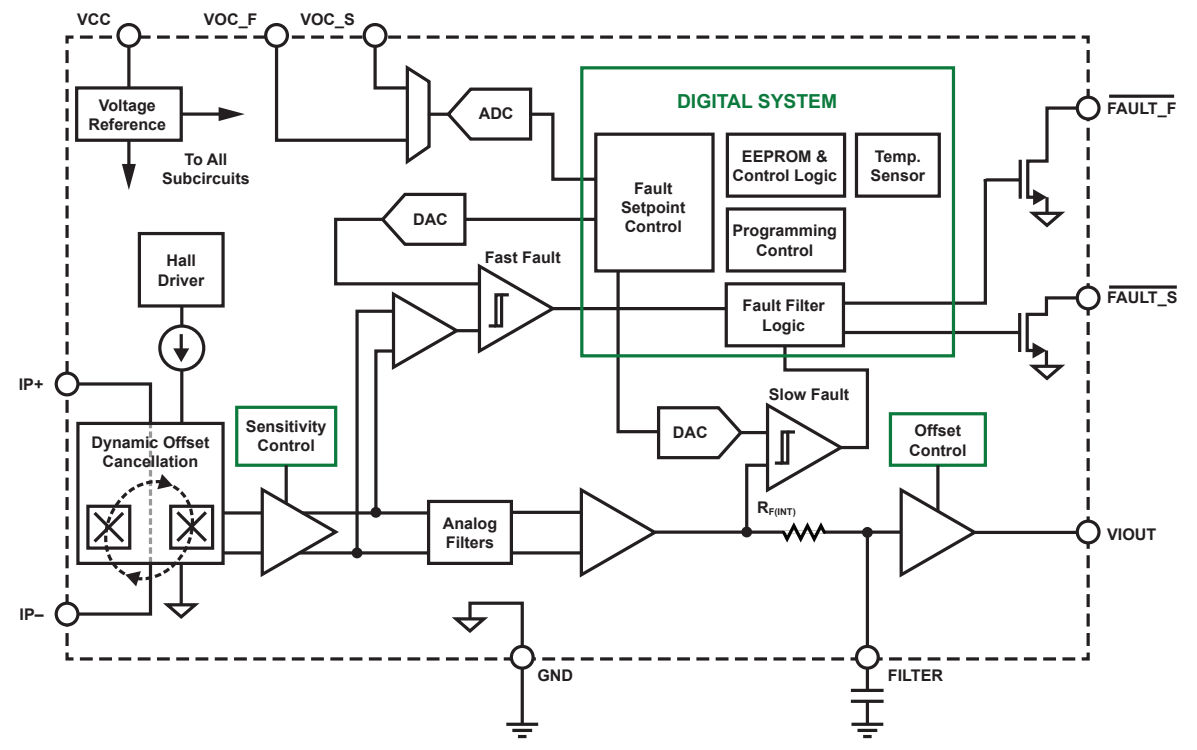

ACS720KLATR-15AB-T Typical application Circuitry

ACS720KLATR-15AB-T

The ACS720KLATR-15AB-T is part of Allegro Microsystems' ACS720 series, a family of high-precision, galvanically isolated current sensors. This series is specifically designed for applications requiring accurate and fast current measurements, such as motor control, power management, and overcurrent protection systems. The ACS720KLATR-15AB-T, with its integrated Hall effect sensor, offers a low-resistance current path and electrical isolation between the path being measured and the sensor's output. This feature significantly enhances safety and performance in systems where direct electrical contact with the high-voltage side is undesirable or dangerous.

1. Power Supply Voltage (VCC Pin): The ACS720KLATR-15AB-T operates with a supply voltage (VCC) typically ranging from 3.0 volts to 5.5 volts, providing flexibility in interfacing with various microcontrollers and digital systems. This voltage should be applied to the VCC pin, with careful attention to providing a stable and noise-free supply for accurate current sensing.

2. Ground Connection (GND Pin): The GND pin needs to be connected to the system ground. It functions as the power supply and signal output's reference point. Establishing a good ground connection is essential for minimizing noise and ensuring the accuracy of the current measurements.

3. Current Sensing Input (IP+, IP- Pins): The current to be measured flows through these input pins, creating a magnetic field detected by the Hall effect sensor within the ACS720KLATR-15AB-T. The IP+ and IP- pins denote the direction of the current flow, which is crucial for determining the polarity of the output signal. The low-resistance path ensures minimal power loss while allowing high current measurement.

4. Analog Voltage Output (VOUT Pin): The VOUT pin provides an analog voltage output proportional to the current flowing through the IP+ and IP- pins. This output can be directly connected to an analog-to-digital converter (ADC) on a microcontroller for digital processing. The voltage level at VOUT varies linearly with the sensed current, allowing for precise current monitoring in real-time applications.

5. Filter Capacitor Connection (Cf Pin): The Cf pin allows for the connection of an external capacitor to filter the output signal. Adding a capacitor at this pin can reduce the noise of the output signal, which is beneficial in applications where signal smoothness is critical. The capacitor's value can be changed to get the required noise and bandwidth performance.

6. Overcurrent Fault Output (FAULT Pin): An overcurrent incident is indicated by the open-drain output known as the FAULT pin. It can be connected to an interrupt pin on a microcontroller to implement protective actions or to signal an alarm system. This pin typically remains high and goes low when the current exceeds the preset threshold defined for the specific model of the ACS720 series.

The ACS720KLATR-15AB-T is engineered for easy integration into a wide range of applications requiring current sensing. Its compact form factor, combined with the high accuracy and isolation provided by the Hall effect sensing mechanism, makes it an excellent choice for developing sophisticated electronic systems where precise current monitoring and control are necessary. Proper implementation involves ensuring a stable power supply, minimal resistance in the current path, and appropriate filtering and signal processing to achieve the best performance from this advanced current sensor solution.
