Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
FS150R12KT4B9BOSA1IGBT MOD 1200V 150A 750W |
3495 | 280.88 |
Add To CartInquiry Now |
Tray | EconoPACK™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | 750 W | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
FS650R08A4P2BPSA1HYBRID PACK 1 |
3911 | 545.45 |
Add To CartInquiry Now |
Tray | HybridPACK™ DC6 | Active | Trench Field Stop | Three Phase Inverter | 750 V | 375 A | 20 mW | 1.35V @ 15V, 375A | 1 mA | 65 nF @ 50 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
IXXN200N60B3IGBT MOD 600V 280A 940W SOT227B |
3199 | 36.02 |
Add To CartInquiry Now |
Tube | XPT™, GenX3™ | Active | PT | Single | 600 V | 280 A | 940 W | 1.7V @ 15V, 100A | 50 µA | 9.97 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
IXYN82N120C3IGBT MOD 1200V 105A 500W SOT227B |
3309 | 38.39 |
Add To CartInquiry Now |
Tube | XPT™, GenX3™ | Active | - | Single | 1200 V | 105 A | 500 W | 3.2V @ 15V, 82A | 25 µA | 4.1 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
FMS7G15US60IGBT, 15A, 600V, N-CHANNEL |
3023 | 20.40 |
Add To CartInquiry Now |
Box | - | Obsolete | - | Three Phase Inverter with Brake | 600 V | 15 A | 73 W | 2.7V @ 15V, 15A | 250 µA | 935 pF @ 30 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
BSM20GD60DLCIGBT MODULE |
2720 | 29.99 |
Add To CartInquiry Now |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
Datasheet |
|
FS50R07W1E3B11ABOMA1IGBT MODULES |
3838 | 50.42 |
Add To CartInquiry Now |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 650 V | 70 A | 205 W | 1.9V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FMG1G50US60LIGBT, 50A, 600V, N-CHANNEL |
2048 | 34.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Single | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 250 µA | 3.46 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FMG1G50US60HIGBT, 50A, 600V, N-CHANNEL |
3065 | 34.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Single | 600 V | 50 A | 250 W | 2.8V @ 15V, 50A | 250 µA | 3.46 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FMG2G75US60IGBT, 75A, 600V, N-CHANNEL |
3944 | 35.45 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 7.056 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

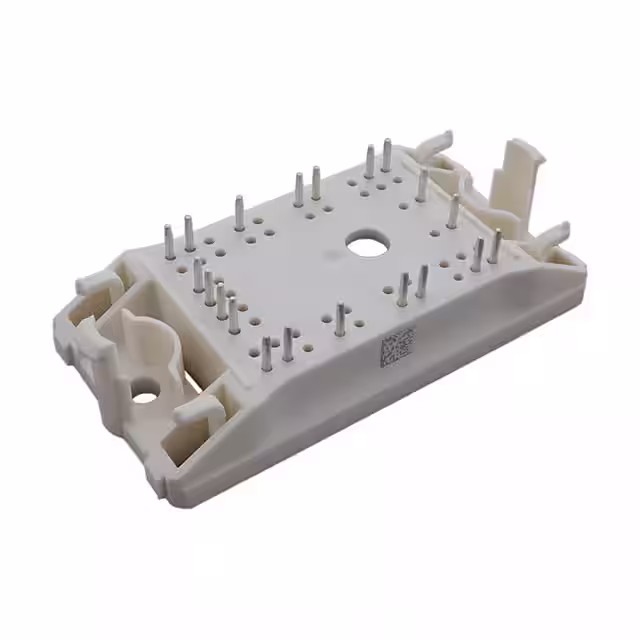

NXH80T120L3Q0S3GPIM GENERATION3 Q0PACK 1200V, 80 |
3562 | 54.25 |
Add To CartInquiry Now |
Tray | - | Active | Trench Field Stop | Half Bridge | 1200 V | 75 A | 188 W | 2.4V @ 15V, 80A | 300 µA | 18.15 nF @ 20 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
FMG1G75US60HIGBT, 75A, 600V, N-CHANNEL |
3449 | 36.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Single | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 7.056 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FMG1G75US60LIGBT, 75A, 600V, N-CHANNEL |
3532 | 36.00 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Single | 600 V | 75 A | 310 W | 2.8V @ 15V, 75A | 250 µA | 7.056 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
MID75-12A3IGBT MODULE 1200V 90A 370W Y4M5 |
3948 | 55.63 |
Add To CartInquiry Now |
Box | - | Active | NPT | Single | 1200 V | 90 A | 370 W | 2.7V @ 15V, 50A | 4 mA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FMG1G100US60HIGBT, 100A, 600V, N-CHANNEL |
2674 | 37.99 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Single | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 10.84 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FMG1G100US60LIGBT, 100A, 600V, N-CHANNEL |
3067 | 37.99 |
Add To CartInquiry Now |
Bulk | - | Obsolete | - | Single | 600 V | 100 A | 400 W | 2.8V @ 15V, 100A | 250 µA | 10.84 nF @ 30 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
| |
|
FP25R12W2T7B11BPSA1LOW POWER EASY |
2837 | 57.70 |
Add To CartInquiry Now |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 25 A | 20 mW | 1.6V @ 15V, 25A | 5.6 µA | 4.77 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
| |
|
DF200R07W2H3B77BPSA1LOW POWER EASY AG-EASY2B-411 |
2389 | 57.82 |
Add To CartInquiry Now |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
| |
|
FP35R12W2T7B11BOMA1LOW POWER EASY |
2211 | 58.59 |
Add To CartInquiry Now |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 35 A | 20 mW | 1.6V @ 15V, 35A | 5.8 µA | 6.62 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
MDI100-12A3IGBT MODULE 1200V 135A 560W Y4M5 |
3714 | 59.67 |
Add To CartInquiry Now |
Box | - | Active | NPT | Single | 1200 V | 135 A | 560 W | 2.7V @ 15V, 75A | 5 mA | 5.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
