Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|

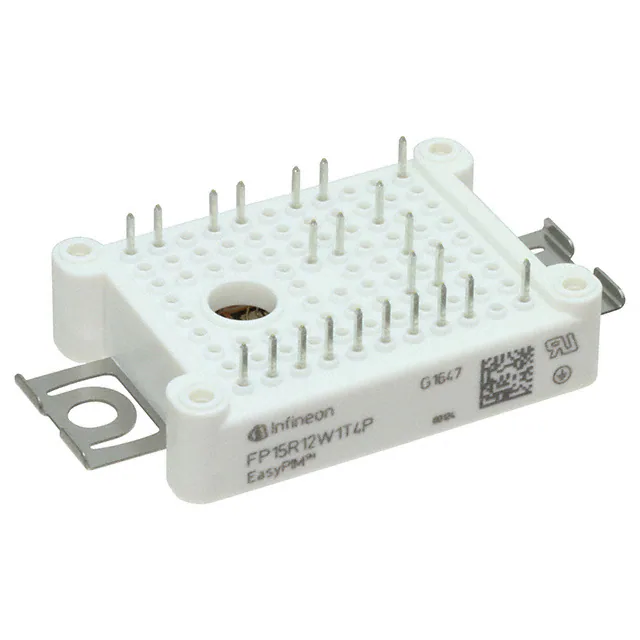

FP15R12W1T4PBPSA1IGBT MOD 1200V 30A 20MW |
3353 | 46.15 |
Add To CartInquiry Now |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 30 A | 20 mW | 2.25V @ 15V, 15A | 1 mA | 890 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C | Chassis Mount |
| |
|
DF150R12W1H3FB11BOMA1IGBT MODULE LOW POWER EASY |
3452 | 55.19 |
Add To CartInquiry Now |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
Datasheet |
|
APTGT50SK170T1GIGBT MODULE 1700V 75A 312W SP1 |
2628 | 62.51 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Single | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
MDI145-12A3IGBT MODULE 1200V 160A 700W Y4M5 |
3382 | 66.18 |
Add To CartInquiry Now |
Box | - | Active | NPT | Single | 1200 V | 160 A | 700 W | 2.7V @ 15V, 100A | 6 mA | 6.5 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
NXH50C120L2C2ESGIGBT MODULE, CIB 1200 V, 50 A IG |
3881 | 81.98 |
Add To CartInquiry Now |
Tube | - | Active | - | Three Phase Inverter with Brake | 1200 V | 50 A | 20 mW | 2.4V @ 15V, 50A | 250 µA | 11.897 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole |
|
Datasheet |
|

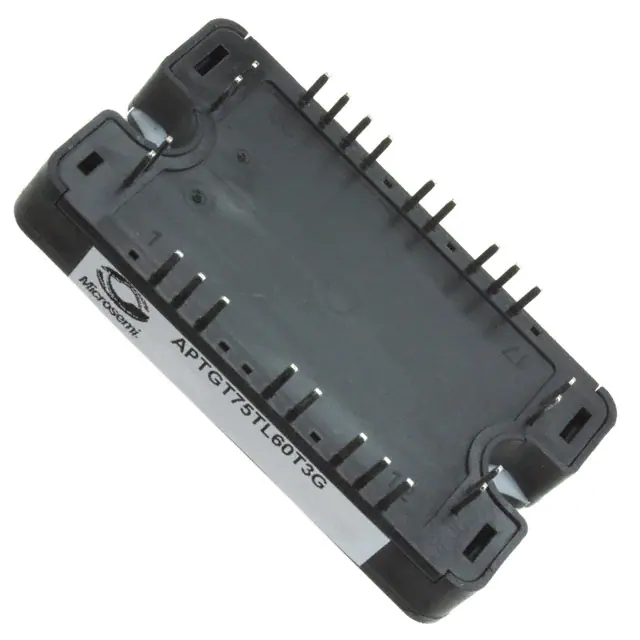

APTGT75TL60T3GIGBT MODULE 600V 100A 250W SP3 |
2819 | 94.16 |
Add To CartInquiry Now |
Tube | - | Active | Trench Field Stop | Three Level Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
| |
|
F3L200R07W2S5FB11BOMA1IGBT MODULE LOW POWER EASY |
2947 | 95.58 |
Add To CartInquiry Now |
Tray | - | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
Datasheet |
|
NXH35C120L2C2SGIGBT MODULE, CIB 1200 V, 35 A IG |
3586 | 106.60 |
Add To CartInquiry Now |
Tube | - | Active | - | Three Phase Inverter with Brake | 1200 V | 35 A | 20 mW | 2.4V @ 15V, 35A | 250 µA | 8.33 nF @ 20 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Through Hole |
|
Datasheet |
|
MKI50-12F7IGBT MODULE 1200V 65A 350W E2 |
2791 | 115.74 |
Add To CartInquiry Now |
Box | - | Active | NPT | Full Bridge Inverter | 1200 V | 65 A | 350 W | 3.8V @ 15V, 50A | 700 µA | 3.3 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount |
|
Datasheet |
|

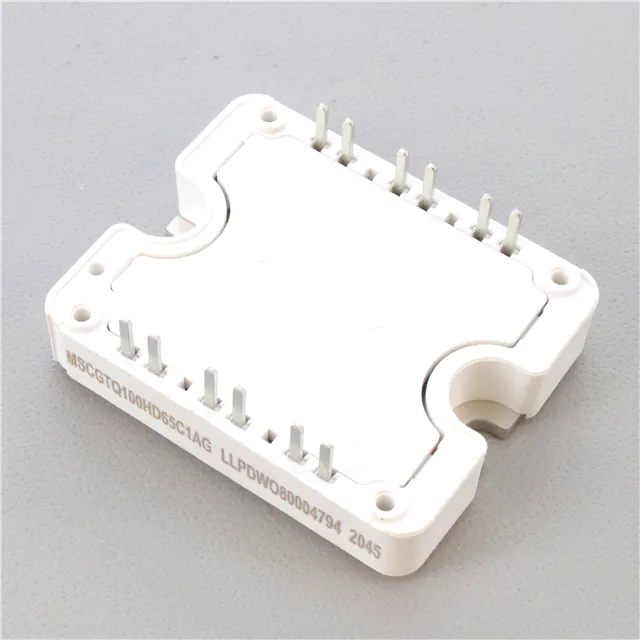

MSCGTQ100HD65C1AGPM-IGBT-TFS-SBD~-SP1F |
2902 | 133.91 |
Add To CartInquiry Now |
Tube | MSC | Active | Trench | Half Bridge | 650 V | 80 A | - | - | 80 A | - | Standard | No | - | Chassis Mount |
| |
|
FF300R07ME4BOSA1GBT MODULE 650V 300A |
2977 | 147.44 |
Add To CartInquiry Now |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | 2 Independent | 650 V | 300 A | 20 mW | 1.95V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FZ400R12KS4HOSA1IGBT MOD 1200V 510A 2500W |
2072 | 162.66 |
Add To CartInquiry Now |
Tray | C | Active | - | Single | 1200 V | 510 A | 2500 W | 3.7V @ 15V, 400A | 5 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
Datasheet |
|
FS75R12KT3GBOSA1IGBT MOD 1200V 100A 355W |
3978 | 164.87 |
Add To CartInquiry Now |
Tray | EconoPACK™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 355 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
Datasheet |
|
FS75R17KE3BOSA1IGBT MOD 1700V 130A 465W |
2830 | 199.94 |
Add To CartInquiry Now |
Tray | - | Active | - | Full Bridge | 1700 V | 130 A | 465 W | 2.45V @ 15V, 75A | 5 mA | 6.8 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
Datasheet |
|

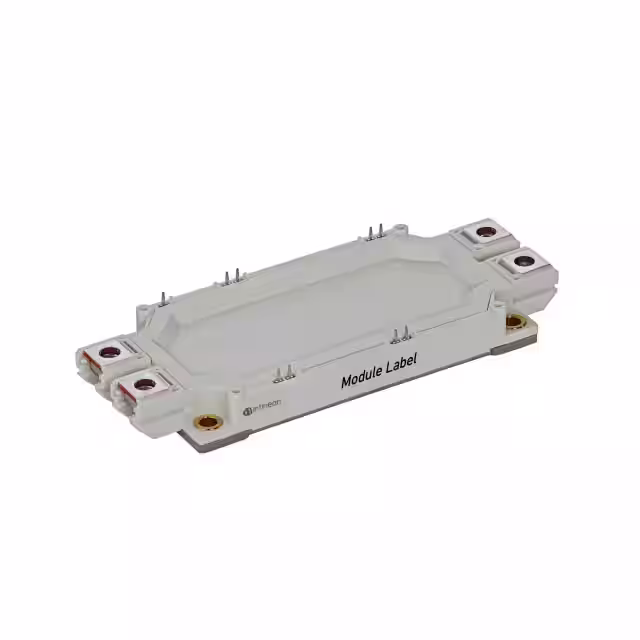

IFF300B12ME4PB11BPSA1IGBT MOD 1200V 300A 20MW ECONO |
3984 | 202.35 |
Add To CartInquiry Now |
Tray | EconoDUAL™ 3 | Active | Trench Field Stop | Half Bridge | 1200 V | 300 A | 20 mW | 2.1V @ 15V, 300A | 3 mA | - | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
FS100R17N3E4BOSA1IGBT MOD 1700V 100A 600W |
2025 | 226.40 |
Add To CartInquiry Now |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1700 V | 100 A | 600 W | 2.3V @ 15V, 100A | 1 mA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

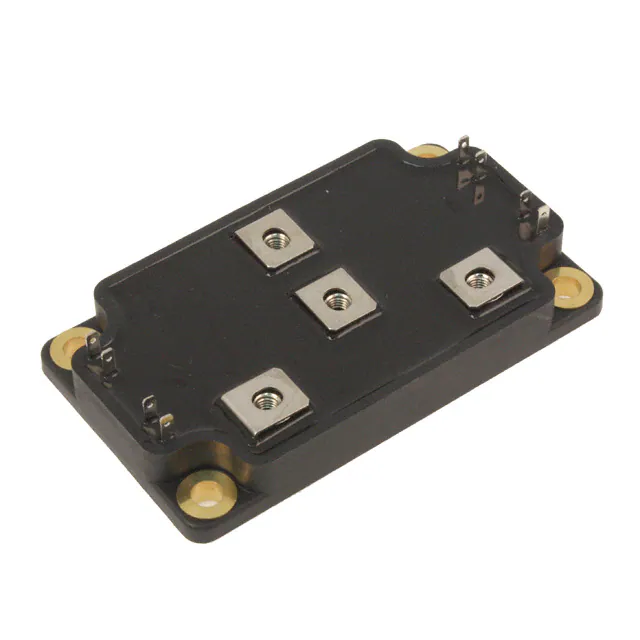

APTGT200TL60GIGBT MODULE 600V 300A 652W SP6 |
3213 | 249.95 |
Add To CartInquiry Now |
Bulk | - | Active | Trench Field Stop | Three Level Inverter | 600 V | 300 A | 652 W | 1.9V @ 15V, 200A | 350 µA | 12.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|

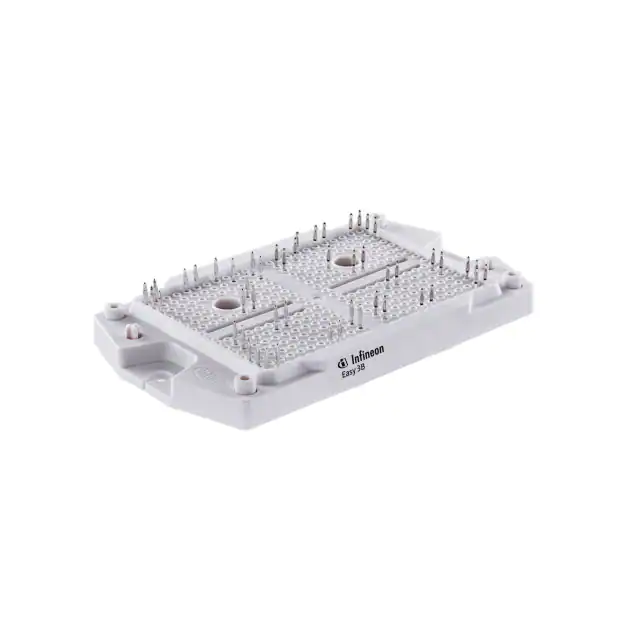

FS3L200R10W3S7FB11BPSA1IGBT MODULE LOW POWER EASY |
3026 | 249.97 |
Add To CartInquiry Now |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Level Inverter | 950 V | 70 A | 20 mW | 1.55V @ 15V, 25A | 31 µA | 6.48 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|

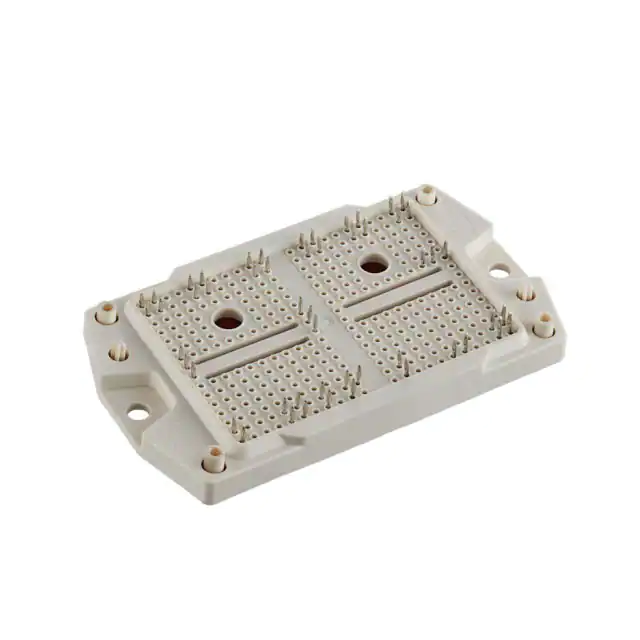

F3L400R10W3S7FB11BPSA1IGBT MODULE LOW POWER EASY |
2692 | 266.61 |
Add To CartInquiry Now |
Tray | EasyPACK™ | Active | Trench Field Stop | Three Level Inverter | 950 V | 220 A | 20 mW | 2V @ 15V, 150A | 71 µA | 49.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FP150R12KT4BPSA1IGBT MODULE 1200V 150A |
2307 | 338.20 |
Add To CartInquiry Now |
Tray | EconoPIM™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 2.1V @ 15V, 150A | 1 mA | 9.35 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
