Cart ( )| Datasheet | Photo | Mfr. Part # | Stock | Price | Quantity | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Datasheet |
|
FF900R12IE4BOSA1IGBT MOD 1200V 900A 5100W |
3733 | 640.90 |
Add To CartInquiry Now |
Tray | PrimePack™2 | Active | Trench Field Stop | Single | 1200 V | 900 A | 5100 W | 2.05V @ 15V, 900A | 5 mA | 54 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FS820R08A6P2LBBPSA1IGBT MODULE 820A HYBRID PK DRIVE |
2044 | 693.00 |
Add To CartInquiry Now |
Tray | HybridPACK™ | Active | Trench Field Stop | Three Phase Inverter | - | 820 A | - | - | - | - | Standard | No | 175°C (TJ) | Chassis Mount |
|
Datasheet |
|
FS950R08A6P2BBPSA1IGBT MODULE 750V 950A |
2967 | 917.70 |
Add To CartInquiry Now |
Tray | HybridPACK™ | Active | Trench Field Stop | Three Phase Inverter | 750 V | 950 A | 870 W | 1.35V @ 15V, 450A | 1 mA | - | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
Datasheet |
|

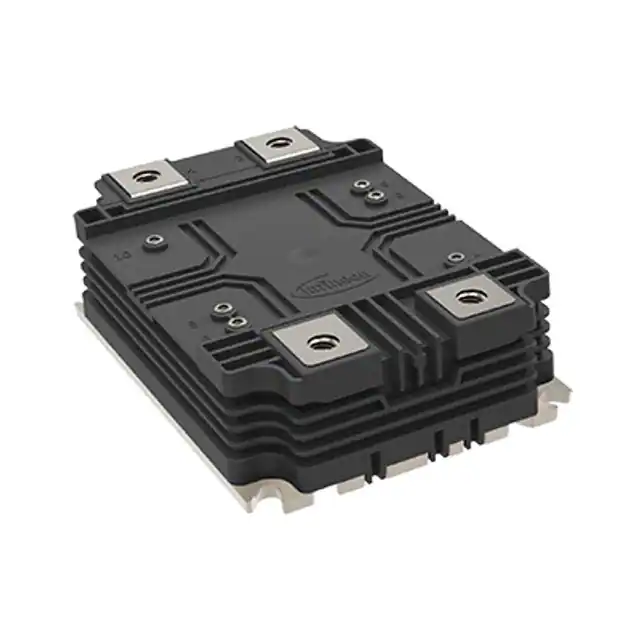

FF450R33T3E3BPSA1IGBT MOD 3300V 450A AGXHP100-3 |
2493 | 1559.88 |
Add To CartInquiry Now |
Tray | XHP™3 | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|

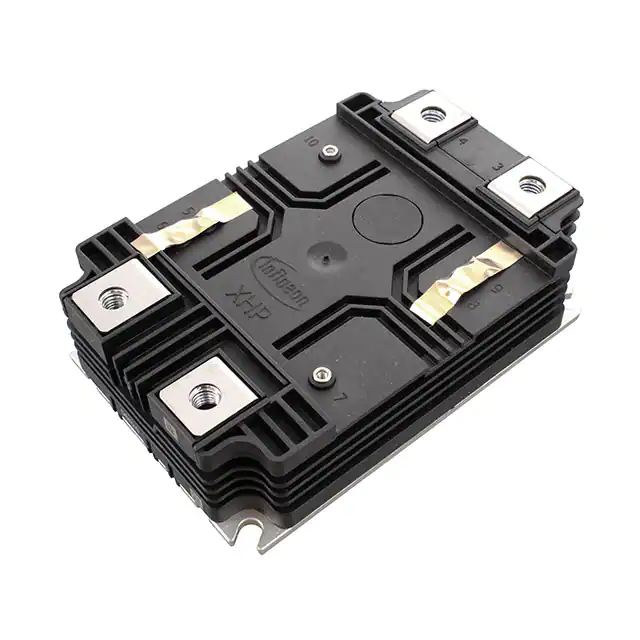

FF450R33T3E3B5BPSA1IGBT MOD 3300V 450A AGXHP100-6 |
3589 | 1685.88 |
Add To CartInquiry Now |
Tray | XHP™3 | Active | Trench Field Stop | Half Bridge Inverter | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | 84 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|

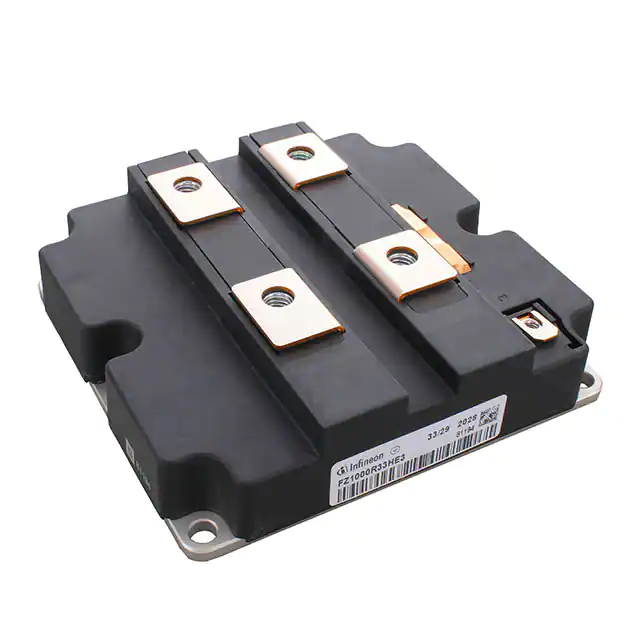

FZ1000R33HE3BPSA1IGBT MODULE 3300V 1000A |
2167 | 1689.87 |
Add To CartInquiry Now |
Tray | IHM-B | Active | Trench Field Stop | Single Switch | 3300 V | 1000 A | - | 3.1V @ 15V, 100A | 5 mA | 190 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
FF1800R17IP5PBPSA1IGBT MODULE 1700V 3600A |
2795 | 1864.89 |
Add To CartInquiry Now |
Tray | PrimePACK™3+ | Active | Trench Field Stop | Half Bridge | 1700 V | 3600 A | 1800000 W | 2.2V @ 15V, 1800A | 5 mA | 105 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount |
|
Datasheet |
|
FZ2400R17HP4B29BOSA2IGBT MODULE 1700V 4800A |
2520 | 1922.42 |
Add To CartInquiry Now |
Tray | IHM-B | Active | Trench Field Stop | Single Switch | 1700 V | 4800 A | 15500 W | 2.25V @ 15V, 2400A | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
F3L150R12W2H3B11BPSA1IGBT MOD 1200V 75A 500W |
3704 | 91.44 |
Add To CartInquiry Now |
Tray | EasyPACK™ | Active | - | Three Phase Inverter | 1200 V | 75 A | 500 W | 1.75V @ 15V, 75A | 1 mA | 8.7 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
FZ1500R33HE3BPSA1IGBT MODULE 3300V 1500A |
3757 | 2345.07 |
Add To CartInquiry Now |
Tray | IHM-B | Active | Trench Field Stop | Full Bridge | 3300 V | 1500 A | 17000 W | 3.1V @ 15V, 1500A | 5 mA | 280 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount |
| |
|

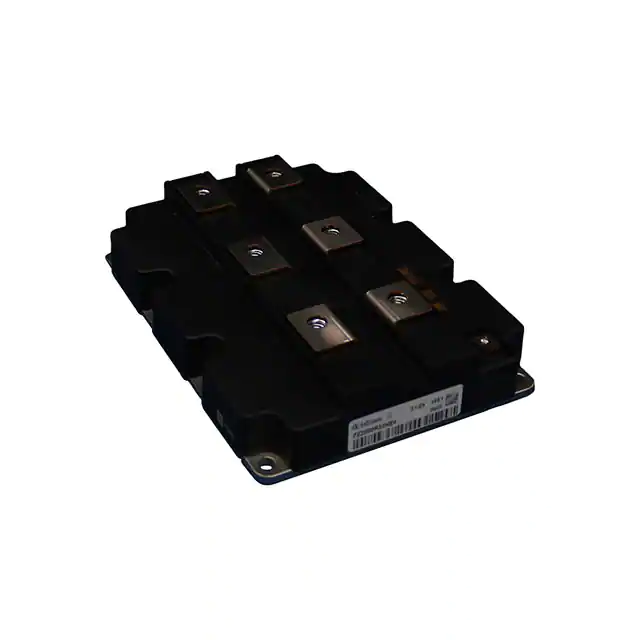

FZ2000R33HE4BOSA1IGBT MOD IHV IHM T XHP 3 3-6 5K |
2425 | 3599.44 |
Add To CartInquiry Now |
Tray | IHM-B | Active | Trench Field Stop | Single Switch | 3300 V | 2000 A | 4.2 mW | 2.2V @ 15V, 2kA (Typ) | 5 mA | 280 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
FF150R12KT3GHOSA1IGBT MOD 1200V 225A 780W |
3034 | 128.46 |
Add To CartInquiry Now |
Tray | C | Not For New Designs | Trench Field Stop | Single Chopper | 1200 V | 225 A | 780 W | 2.15V @ 15V, 150A | 5 mA | 11 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount |
|
Datasheet |
|
FF200R12KE3HOSA1IGBT MODULE 1200V 1050W |
2373 | 146.20 |
Add To CartInquiry Now |
Tray | - | Active | - | 2 Independent | 1200 V | - | 1050 W | 2.15V @ 15V, 200A | 5 mA | 14 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount |
|
Datasheet |
|
FP75R12KT4B15BOSA1IGBT MOD 1200V 75A 385W |
3834 | 189.32 |
Add To CartInquiry Now |
Tray | EconoPIM™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
FS100R12KT4GBOSA1IGBT MOD 1200V 100A 515W |
2495 | 194.67 |
Add To CartInquiry Now |
Tray | EconoPACK™ 3 | Not For New Designs | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
2ED300C17STROHSBPSA1IGBT MODULE 1700V 30A |
3189 | 222.95 |
Add To CartInquiry Now |
Tray | EiceDriver™ | Active | - | 2 Independent | 1700 V | - | - | - | - | - | Standard | No | -40°C ~ 85°C | Through Hole |
|
Datasheet |
|
FS200R07N3E4RBOSA1IGBT MOD 650V 200A 600W |
2562 | 227.62 |
Add To CartInquiry Now |
Tray | EconoPACK™ 3 | Active | Trench Field Stop | Three Phase Inverter | 650 V | 200 A | 600 W | 1.95V @ 15V, 200A | 1 mA | 13 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
FP100R12KT4BOSA1IGBT MOD 1200V 100A 515W |
2213 | 233.28 |
Add To CartInquiry Now |
Tray | EconoPIM™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
|
Datasheet |
|
FP20R06W1E3BOMA1IGBT MODULE 600V 27A 94W |
3215 | 41.70 |
Add To CartInquiry Now |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 600 V | 27 A | 94 W | 2V @ 15V, 20A | 1 mA | 1.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
Datasheet |
|
APT85GR120JD60IGBT MOD 1200V 116A 543W SOT227 |
2636 | 40.60 |
Add To CartInquiry Now |
Tube | - | Active | NPT | Single | 1200 V | 116 A | 543 W | 3.2V @ 15V, 85A | 1.1 mA | 8.4 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount |
