u-blox ZED-F9P-04B

Part No.:: ZED-F9P-04B

Manufacturer:: u-blox

Package:: 54-SMD Module

Datasheet:: ZED-F9P-04B.pdf

Description:: MOD RF RX PRECISION GNSS, RTK

In Stock:: 3266

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

ZED-F9P-04B Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
ZED-F9P
ProductStatus:
Active
Frequency:
1.207GHz, 1.2276GHz, 1.246GHz, 1.561GHz, 1.575GHz, 1.602GHz
Sensitivity:
-167dBm
DataRate(Max):
921.6kbps
ModulationorProtocol:
BeiDou, Galileo, GLONASS, GNSS, GPS
Applications:
General Purpose
Current-Receiving:
130mA
DataInterface:
I²C, SPI, UART, USB
MemorySize:
-
AntennaConnector:
-
Features:
-
Voltage-Supply:
2.7V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

ZED-F9P-04B this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including ZED-F9P-04B price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for ZED-F9P-04B to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

ZED-F9P-04B information

Views：

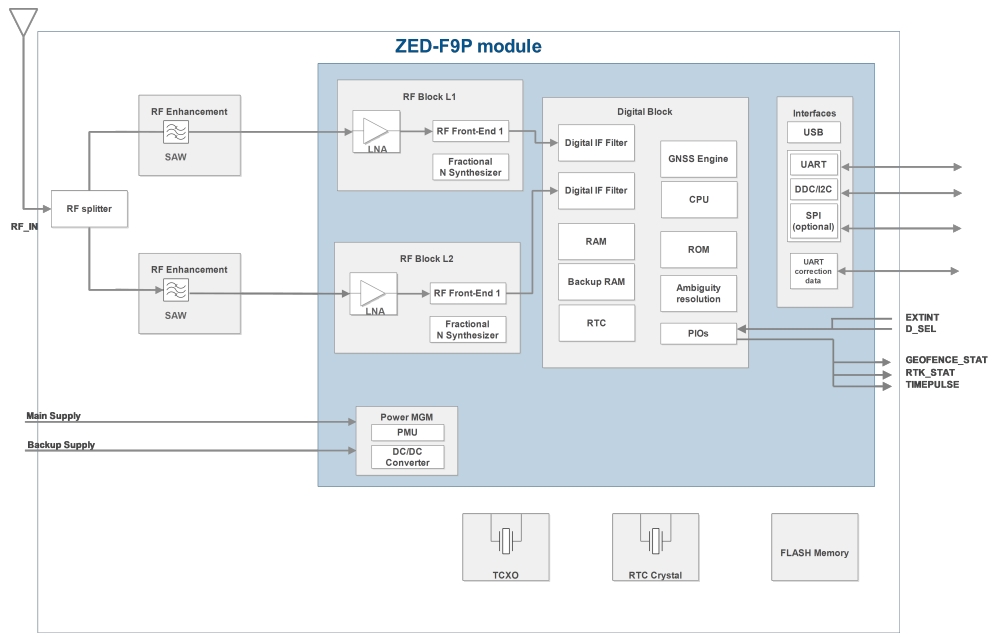

ZED-F9P-04B Typical application Circuitry

ZED-F9P-04B

The ZED-F9P-04B chip is a high-precision GNSS module designed for applications requiring centimeter-level accuracy in positioning. It is part of the u-blox F9 series and is equipped with multi-band GNSS technology, enabling it to receive signals from multiple satellite constellations simultaneously.

Application Scenarios: The ZED-F9P-04B is ideal for use in autonomous vehicles, precision agriculture, drone navigation, surveying, and mapping applications where accurate positioning is critical.

Parameter Features:

- Accuracy: Delivers centimeter-level positioning accuracy.

- GNSS Support: Supports multiple GNSS constellations, including GPS, GLONASS, Galileo, and BeiDou.

- Update Rate: Capable of providing position updates at up to 20 Hz.

- Communication Interfaces: Offers various interfaces such as UART, SPI, I2C, and USB for flexible connectivity.

- Voltage Range: Operates within a voltage range of 3.0V to 3.6V.

Example Circuit Design for Precision Agriculture:

1. Power Supply Connection: Connect the VCC pin (pin 1) of the ZED-F9P-04B to a 3.3V power source to ensure proper operation.

2. Ground Connection: Link the GND pin (pin 2) to the ground of the agricultural equipment's control system for a stable reference.

3. Antenna Connection: Attach a high-quality GNSS antenna to the RF_IN pin (pin 3) to receive satellite signals. Ensure the antenna has a clear view of the sky.

4. UART Communication: Set up UART communication by connecting the TX (pin 4) and RX (pin 5) pins to the control system's UART interface for data exchange.

5. I2C Integration: For additional sensor integration, use the SDA (pin 6) and SCL (pin 7) pins to connect to the I2C bus of the control system.

6. PPS Output: Utilize the TIMEPULSE pin (pin 8) to provide a pulse-per-second signal to the control system for precise timing synchronization.

Circuit Design Considerations:

- Antenna Quality: Use a high-quality GNSS antenna with multi-band capability to maximize the positioning accuracy of the ZED-F9P-04B.

- Power Supply Stability: Ensure the power supply is stable and free from noise to avoid disruptions in GNSS signal processing.

- EMI/EMC Considerations: Implement appropriate shielding and grounding techniques to minimize electromagnetic interference that could affect GNSS signal reception.

- Firmware Configuration: Customize the firmware settings of the ZED-F9P-04B to optimize its performance for precision agriculture, including selecting the appropriate GNSS constellations and setting the desired update rate.
