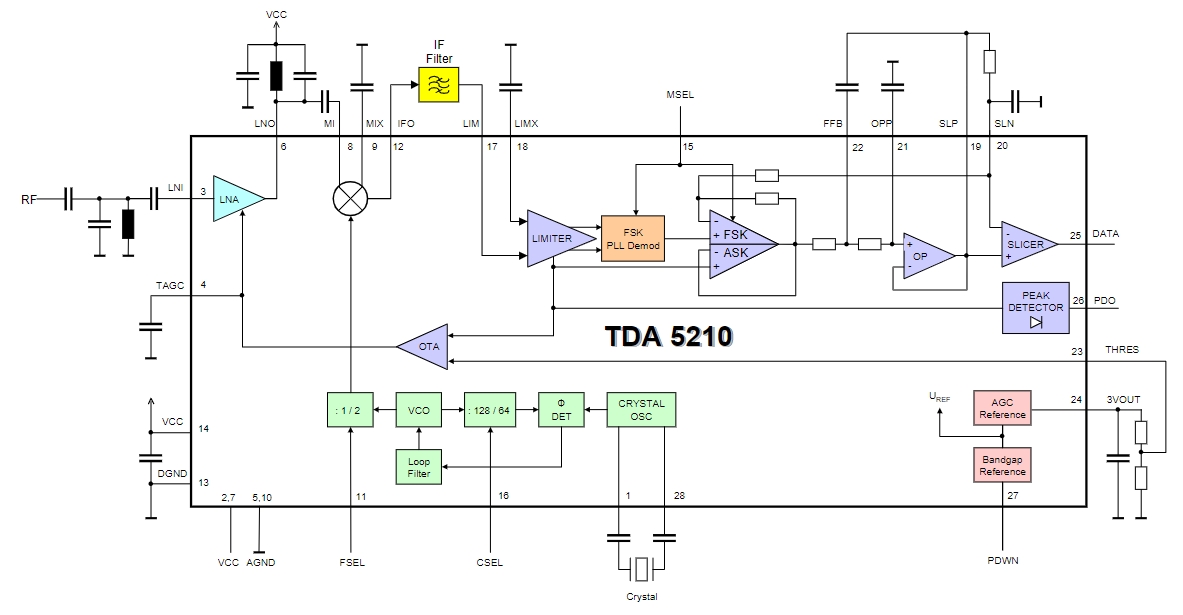

TDA5210T Typical application Circuitry

TDA5210T

An ASK/FSK receiver integrated circuit (IC) for low-power, low-voltage wireless applications is the TDA5210T. It is widely used in applications that require wireless communication, such as remote controls, home automation systems, and telemetry systems.

Application Scenarios of TDA5210T:

1. Remote Control Systems: Used in car key fobs, garage door openers, and other remote control applications.

2. Automation of the Home: Perfect for wireless connectivity in smart home appliances, such as safety systems, lighting controls, and thermostats.

3. Telemetry and Sensor Networks: Suitable for transmitting data from sensors in industrial, agricultural, and weather monitoring systems.

Key Features:

1. ASK/FSK Modulation Support: Capable of handling both Amplitude Shift Keying (ASK) and Frequency Shift Keying (FSK) modulation, providing flexibility in wireless communication.

2. Low Power Consumption: Suitable for battery-operated devices, it is designed for energy-efficient operation.

3. High Sensitivity: Ensures reliable signal reception even in environments with weak signals.

Example Circuit Design - Garage Door Opener Using TDA5210T:

Comprehensive Circuit Connection Strategy:

1. Power Supply and Grounding:

- Pin 16 (VCC): Connect to a stable power source, typically 5V.

- Pin 8 (GND): Connect to the ground of the circuit.

2. Antenna Input:

- Pin 1 (RF_IN): Connect to the antenna for receiving wireless signals from the remote transmitter.

3. Intermediate Frequency (IF) and Demodulation:

- Pins 9 (IF), 10 (IF), 15 (FSKIN), 14 (ASKIN): Connect these to the appropriate components as per the datasheet to set up the IF stage and demodulation for ASK/FSK signals.

4. Data Output:

- Pin 13 (DATA): Route this pin to the microcontroller or the decoding circuit to process the received commands.

5. Filtering and Stability:

- Place decoupling capacitors close to Pin 16 (VCC) and Pin 8 (GND) to filter out power supply noise.

- Use a filter at Pin 1 (RF_IN) to prevent RF interference.

6. Protection Features:

- Implement ESD protection on the antenna input and transient protection on the power supply inputs.

Circuit Design Considerations:

1. Antenna Design and Placement: Carefully design and position the antenna for optimal signal reception and minimal interference.

2. Power Supply Stability: Ensure a clean and stable power supply to prevent malfunctions or data errors.

3. Noise Reduction: To reduce noise and interference in the circuit, use appropriate grounding and shielding procedures.

4. Component Quality and Selection: Choose high-quality components that match the required specifications for frequency and impedance to ensure reliable operation.

5. Thermal Management: While the TDA5210T is generally low-power, ensure that any associated power amplifiers or additional components are adequately cooled.

In conclusion, the TDA5210T is a versatile and efficient choice for wireless communication applications, particularly suitable for devices like garage door openers where reliable signal reception is crucial. When designing circuits with the TDA5210T, it's important to focus on antenna design, power supply stability, noise reduction, component quality, and thermal management to achieve optimal performance and reliability in wireless communication systems.

TDA5210T information

TDA5210T Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
Frequency:
810MHz ~ 870MHz, 400MHz ~ 440MHz
Sensitivity:
-107dBm
DataRate(Max):
-
ModulationorProtocol:
ASK, FSK
Applications:
Alarm Systems, Communication Systems
Current-Receiving:
4.8mA
DataInterface:
PCB, Surface Mount
MemorySize:
-
AntennaConnector:
PCB, Surface Mount
Features:
-
Voltage-Supply:
4.6V ~ 5.5V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount
