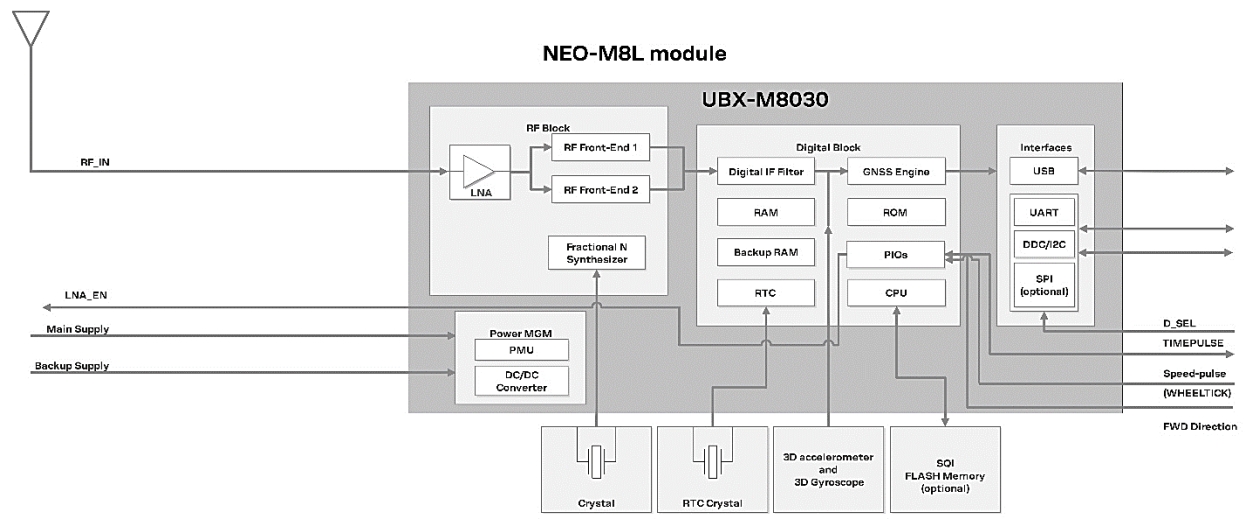

    NEO-M8L-06B Typical application Circuitry

    NEO-M8L-06B

    The NEO-M8L-06B is a type of GNSS (Global Navigation Satellite System) module from u-blox, a leading provider in positioning and wireless communication technologies. This module is designed for automotive applications, offering high accuracy positioning and dead reckoning capabilities.

    Application Scenario: In-Car Navigation System

    One application scenario for the NEO-M8L-06B is in the development of an in-car navigation system. This system requires precise positioning information to provide accurate driving directions and route optimization.

    Detailed Circuit Connection

    - Power Supply to NEO-M8L-06B: First, ensure a stable power supply to the NEO-M8L-06B module. The VCC pin of the NEO-M8L-06B should be connected to a 3.0V to 3.6V power source. Ground the GND pin to the system's ground plane. A decoupling capacitor (typically 10 µF) should be placed close to the power supply pins to filter out noise.

    - GNSS Antenna Connection: Connect an active GNSS antenna to the RF_IN pin of the NEO-M8L-06B module. For optimal signal reception, a high-quality antenna is essential. For best results, the antenna should be positioned so that it has an unobstructed view of the sky.

    - Serial Communication Interface: For communication with a microcontroller or processor, use the UART interface of the NEO-M8L-06B. Connect the TX pin of the NEO-M8L-06B to the RX pin of the microcontroller and the RX pin of the NEO-M8L-06B to the TX pin of the microcontroller. This setup enables bidirectional communication for sending commands to the NEO-M8L-06B and receiving positioning data.

    - I2C Communication for Sensor Data: The NEO-M8L-06B also features an I2C interface for accessing its integrated sensors' data. Attach the NEO-M8L-06B's SDA and SCL pins to the microcontroller's matching SDA and SCL pins. This connection allows the retrieval of accelerometer and gyroscope data for advanced dead reckoning calculations.

    - Dead Reckoning Interface: For dead reckoning, additional connections might be required depending on the specific application, such as connections to vehicle speed sensors or a gyroscope for better accuracy during GNSS outages.

    Design Considerations

    - Power Management: Ensuring stable and clean power supply to the NEO-M8L-06B is crucial. Power fluctuations can cause inaccurate readings or even reset the module.

    - Antenna Position: The NEO-M8L-06B's performance is significantly impacted by the location of the GNSS antenna. It should be positioned away from objects that could interfere with the signal, such as massive metal surfaces.

    - Serial Communication Speed: Configuring the UART interface with an appropriate baud rate that matches the microcontroller ensures reliable communication. Too high a baud rate might lead to data loss, especially at higher data rates from the NEO-M8L-06B.

    - EMI/RFI Considerations: Given the NEO-M8L-06B's sensitivity to RF signals, it's important to design the PCB layout to minimize interference. This includes careful routing of signal traces and proper grounding.

    - Temperature Range: The NEO-M8L-06B operates within a specified temperature range. The design should consider the operating environment to ensure the module functions correctly under all conditions.

    In summary, when integrating the NEO-M8L-06B into an in-car navigation system, careful attention must be paid to power supply management, antenna placement, communication interface setup, and EMI/RFI mitigation to ensure optimal performance. This advanced module, with its GNSS and dead reckoning capabilities, offers a reliable solution for automotive navigation systems, enhancing the accuracy and reliability of in-car navigation and telematics systems.
