Texas Instruments UCD90160ARGCR

Part No.:: UCD90160ARGCR

Manufacturer:: Texas Instruments

Package:: 64-VFQFN Exposed Pad

Datasheet:: UCD90160ARGCR.pdf

Description:: IC SUPERVISOR 16 CHANNEL 64VQFN

In Stock:: 2447

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

UCD90160ARGCR Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
Type:
Sequencer
NumberofVoltagesMonitored:
16
Voltage-Threshold:
Adjustable/Selectable
Output:
-
Reset:
Active Low
ResetTimeout:
2µs Minimum
OperatingTemperature:
-40°C ~ 110°C (TA)
MountingType:
Surface Mount

UCD90160ARGCR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including UCD90160ARGCR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for UCD90160ARGCR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

UCD90160ARGCR information

Views：

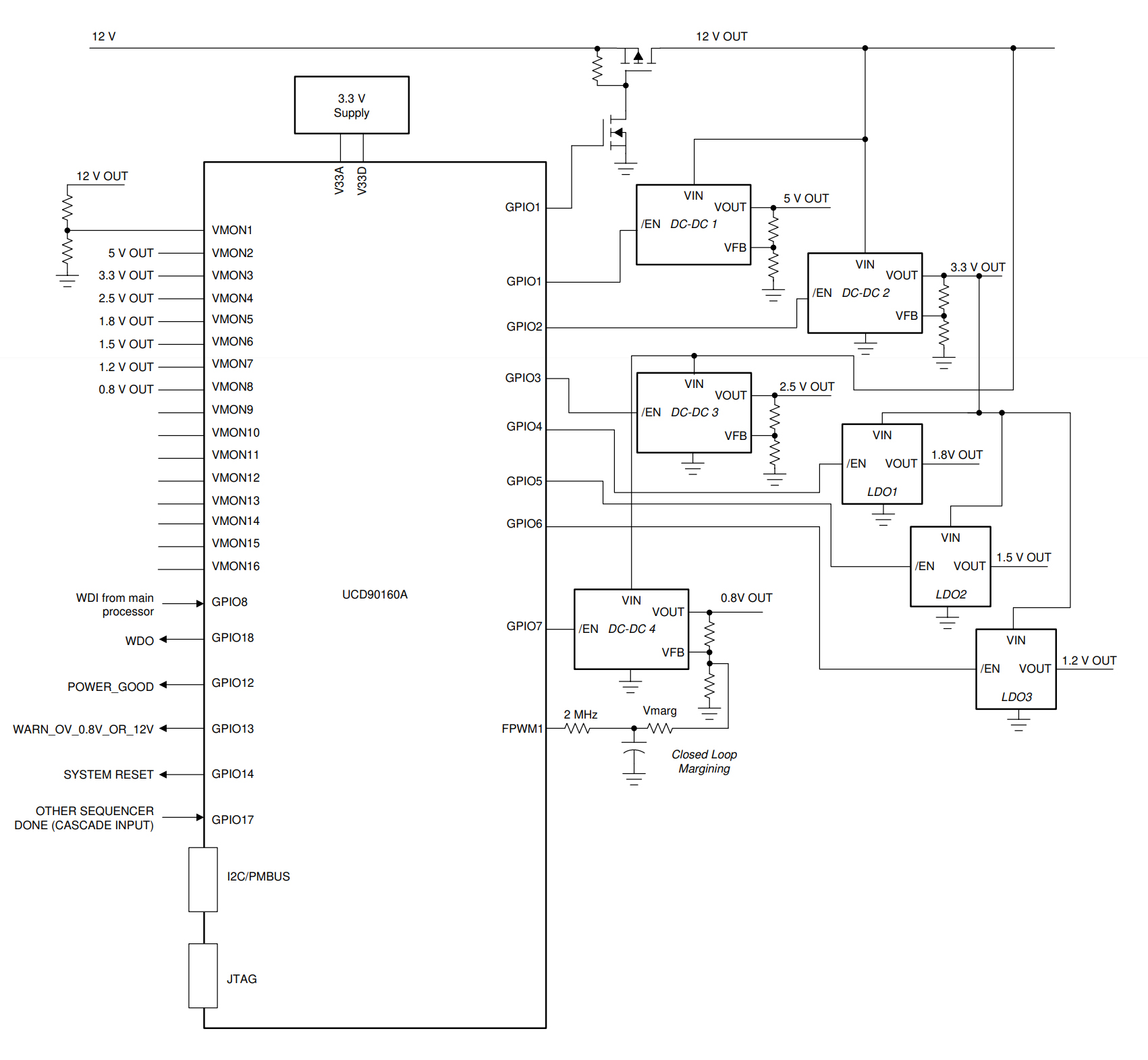

UCD90160ARGCR Typical application Circuitry

UCD90160ARGCR

The UCD90160ARGCR is a multi-rail power sequencer and system health monitor by Texas Instruments. This device is capable of sequencing up to 16 rails and monitoring up to 12 rails without the need for additional components. Understanding the exact circuit connection for the UCD90160ARGCR is critical as part of the integration process. Here's a step-by-step guide to connecting it:

1. Voltage Monitoring Inputs (VMON0 - VMON11: Pins 8-19): These pins allow the UCD90160ARGCR to monitor system voltages. Depending on the application's needs, not all pins might be used. Each pin can be connected to the voltage rail you want to monitor through a resistor divider network. This enables the UCD90160ARGCR to read voltages higher than its maximum input rating.

2. GPS/O Pins (GPS/O0 - GPS/O15: Pins 21-36): These versatile pins can be configured either as general-purpose inputs or as open-drain outputs. This is where you can connect devices or signals that need to be controlled or sequenced by the UCD90160ARGCR.

3. Power Supply Pins (VDD: Pin 37, VSS: Pin 38): VDD should be connected to a 3.3V supply, and VSS should be tied to the system ground. Close to these pins, its good practice to place decoupling capacitors to ensure the stability of the UCD90160ARGCR.

4. I2C Interface Pins (SDA: Pin 39, SCL: Pin 40): These pins facilitate I2C communication. Connect SDA and SCL to the I2C bus of your microcontroller or system, ensuring to add pull-up resistors as needed. This allows for communication between the system and the UCD90160ARGCR for purposes of setup, control, or monitoring.

5. RESET Output (RESET: Pin 3): This active-low open-drain output can be used to reset a processor or other components. It's generally tied to an external pull-up resistor.

6. WATCHDOG Input (WDI: Pin 4): This pin accepts a watchdog input pulse from a processor or controller, allowing the UCD90160ARGCR to initiate a reset if the pulses stop, indicating a system fault.

7. PM bus Alert Output (ALERT: Pin 2): This active-low open-drain output can notify a controller when a fault is detected. Like the RESET pin, it's typically tied to an external pull-up resistor.

8. Clock Pins (IN: Pin 5, OUT: Pin 6): Connect a crystal between these pins to provide the clock source for the UCD90160ARGCR. This ensures accurate timing for sequencing and monitoring functions.

Incorporating the UCD90160ARGCR into a design brings a robust power sequencing and system health monitoring solution. Always refer to the data sheet of the UCD90160ARGCR for detailed information and specific guidelines. Proper layout, grounding, and decoupling are essential to achieve optimal performance and reliability from the device.
