Analog Devices Inc./Maxim Integrated MAX706RESA+T

Part No.:: MAX706RESA+T

Manufacturer:: Analog Devices Inc./Maxim Integrated

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: MAX706RESA+T.pdf

Description:: IC SUPERVISOR 1 CHANNEL 8SOIC

In Stock:: 4347

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MAX706RESA+T this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including MAX706RESA+T price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for MAX706RESA+T to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

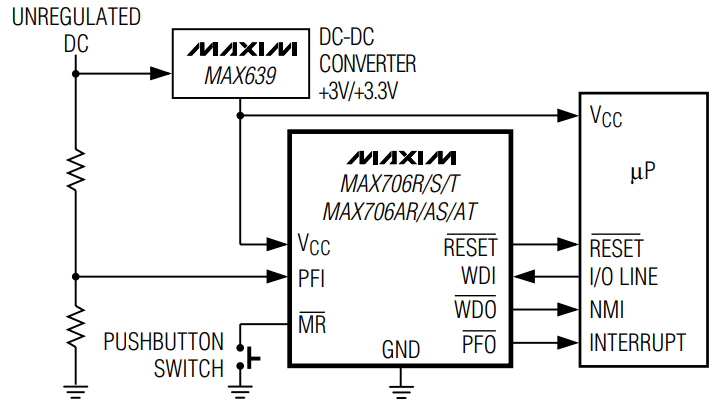

MAX706RESA+T Typical application Circuitry

MAX706RESA T

The MAX706RESA+T is a crucial component of the MAX706 series, designed by Maxim Integrated, which specializes in microprocessor (µP) supervisory circuits. These circuits are adept at enhancing system reliability through vigilant power supply monitoring, automatic system resets upon power failures, and integration of a watchdog timer to maintain system integrity. The MAX706RESA+T, with its precision in voltage monitoring and reset functionality, is ideally suited for a wide array of applications, including computing systems, communication devices, and industrial controls, where maintaining operational stability is paramount.

1. Power Supply Input (VCC): The VCC pin powers the MAX706RESA+T and is typically connected to a voltage source within the 2.7V to 5.5V range. This broad voltage range allows the device to be versatile across different digital systems. The VCC pin also plays a pivotal role in monitoring the system's supply voltage to ensure it remains within safe operational limits.

2. Ground Connection (GND): Establishing a common ground through the GND pin is essential for the accurate operation of the MAX706RESA+T. A stable ground ensures the effectiveness of the supervisory functions, providing a reference point for the device's internal operations.

3. Reset Outputs (RESET, RESET): The device features dual reset outputs, offering both active-low (RESET) and active-high (RESET) configurations. These outputs are crucial in signaling the µP to reset when the supply voltage falls below a specific threshold, ensuring the system reboots from a known, stable state in case of power anomalies.

4. Manual Reset Input (MR): The inclusion of a Manual Reset (MR) pin provides the capability to externally trigger a system reset. This functionality is particularly useful for system maintenance, allowing operators to manually initiate a reset via a switch or an external logic signal.

5. Watchdog Timer Input (WDI): The WDI pin is integral to the MAX706RESA+T's watchdog timer feature. This input is designed to receive periodic pulses from the µP. If the WDI fails to receive a pulse within a predetermined window, the device interprets this as a system error and activates the reset output, thereby preventing system hang-ups.

6. Supply Voltage Supervision (VCC): Through the VCC pin, the MAX706RESA+T continuously monitors the supply voltage level. This vigilant supervision ensures that the device can respond promptly if the voltage drops below the safe threshold, activating the reset function to maintain system stability.

Incorporating the MAX706RESA+T into an electronic system involves a detailed approach to ensure each pin is correctly connected, optimizing the device's supervisory capabilities. The MAX706 series, with the MAX706RESA+T as a significant offering, demonstrates Maxim Integrated's commitment to providing advanced supervisory solutions that ensure the reliability and stability of µP-based systems in various applications.

MAX706RESA+T information

MAX706RESA+T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Simple Reset/Power-On Reset
NumberofVoltagesMonitored:
1
Voltage-Threshold:
2.63V
Output:
Push-Pull, Totem Pole
Reset:
Active Low
ResetTimeout:
140ms Minimum
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount
