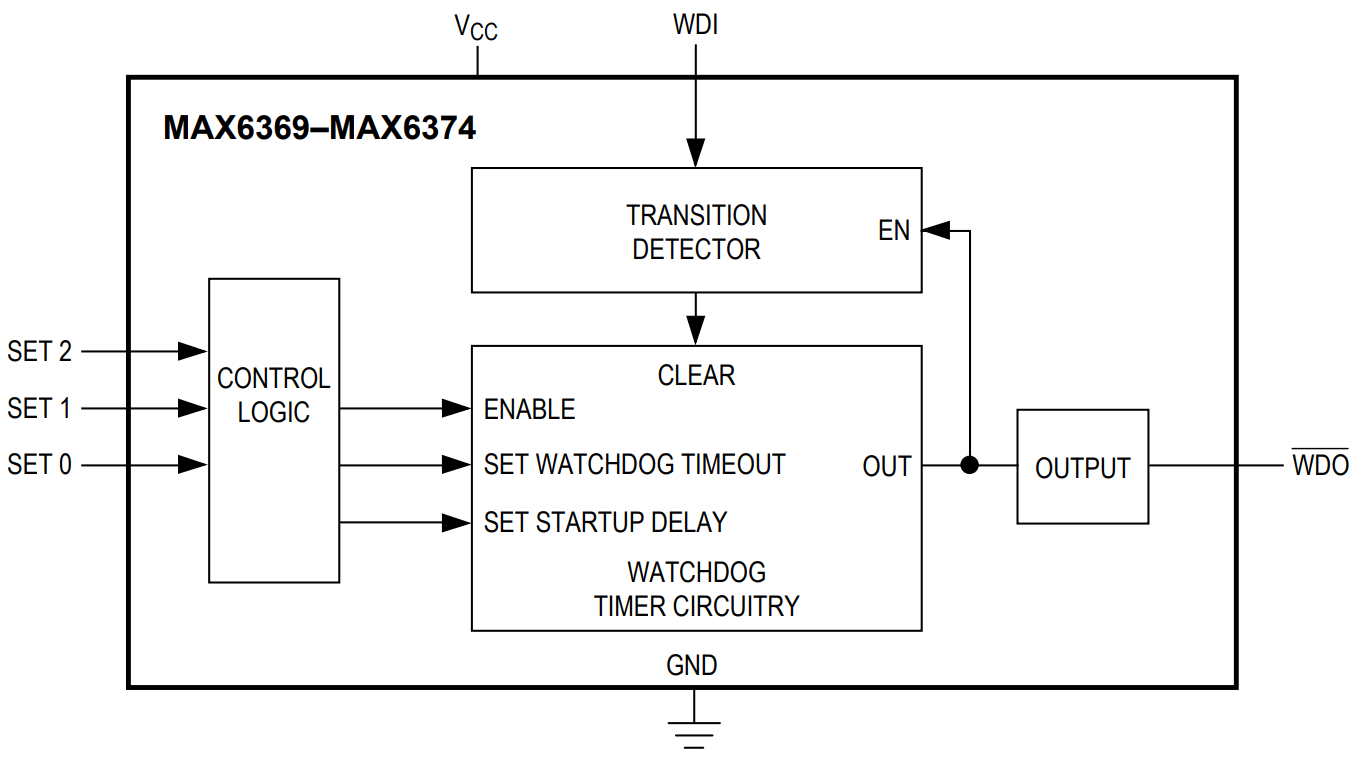

MAX6369KA+T Typical application Circuitry

MAX6369KA+T

The MAX6369KA+T is part of Maxim Integrated's MAX6369 series, a line of pin-selectable watchdog timers. These devices are designed to provide reliable system monitoring, primarily used in microprocessor (μP) systems to monitor the μP operation. The MAX6369KA+T is particularly adept at resetting a μP if it fails to respond within a preset time frame, an essential feature for maintaining system integrity and preventing malfunction.

1. Power Supply Pins (VCC and GND): The VCC pin should be connected to the power supply, which can range from +2.5V to +5.5V, depending on the system requirements. The Ground (GND) pin establishes the common reference for the power supply and the signal levels, crucial for the stable operation of the circuit.

2. Watchdog Input (WDI): The WDI (Watchdog Input) pin is critical for the watchdog timer function. It typically connects to a μP. The μP should regularly toggle this pin within a preset timeout period. If the WDI does not toggle within this period, the MAX6369KA+T interprets it as a system failure and initiates a reset sequence.

3. Reset Output (RST): The RST (Reset Output) pin is used to reset the μP. When the MAX6369KA+T detects a system failure (i.e., the WDI pin has not been toggled in time), it drives the RST pin low for a preset period, thereby resetting the μP.

4. Timing Adjustment Pins (TP1, TP2): These pins are used to set the watchdog timer's timeout period and the reset pulse width. By connecting these pins to VCC, GND, or leaving them open (floating), various timing configurations can be achieved.

5. Manual Reset (MR): The MR (Manual Reset) pin allows for an external reset. When this pin is driven low, it forces the MAX6369KA+T to assert a reset, independent of the watchdog timer.

6. Optional Capacitor Pin (CAP): An external capacitor can be connected to this pin to set an extended watchdog timeout period. This feature is useful in applications requiring longer monitoring intervals.

The MAX6369KA+T is an ideal solution for enhancing the reliability of microprocessor-based systems, particularly in applications where uninterrupted operation is critical. This includes industrial controls, telecommunications, and automotive systems. In order to guarantee efficient monitoring and system stability, it is crucial to take into account the particular needs of the MAX6369KA+T, such as the intended watchdog timeout duration and the operating voltage range.

MAX6369KA+T information

MAX6369KA+T Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Watchdog Circuit
NumberofVoltagesMonitored:
1
Voltage-Threshold:
Adjustable/Selectable
Output:
Open Drain or Open Collector
Reset:
Active Low
ResetTimeout:
Adjustable/Selectable
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount
