Texas Instruments TPS3619-33DGKR

Part No.:: TPS3619-33DGKR

Manufacturer:: Texas Instruments

Package:: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Datasheet:: TPS3619-33DGKR.pdf

Description:: IC SUPERVISOR 1 CHANNEL 8VSSOP

In Stock:: 2278

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TPS3619-33DGKR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Battery Backup Circuit
NumberofVoltagesMonitored:
1
Voltage-Threshold:
2.93V
Output:
Push-Pull, Totem Pole
Reset:
Active Low
ResetTimeout:
60ms Minimum
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

TPS3619-33DGKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TPS3619-33DGKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TPS3619-33DGKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TPS3619-33DGKR information

Views：

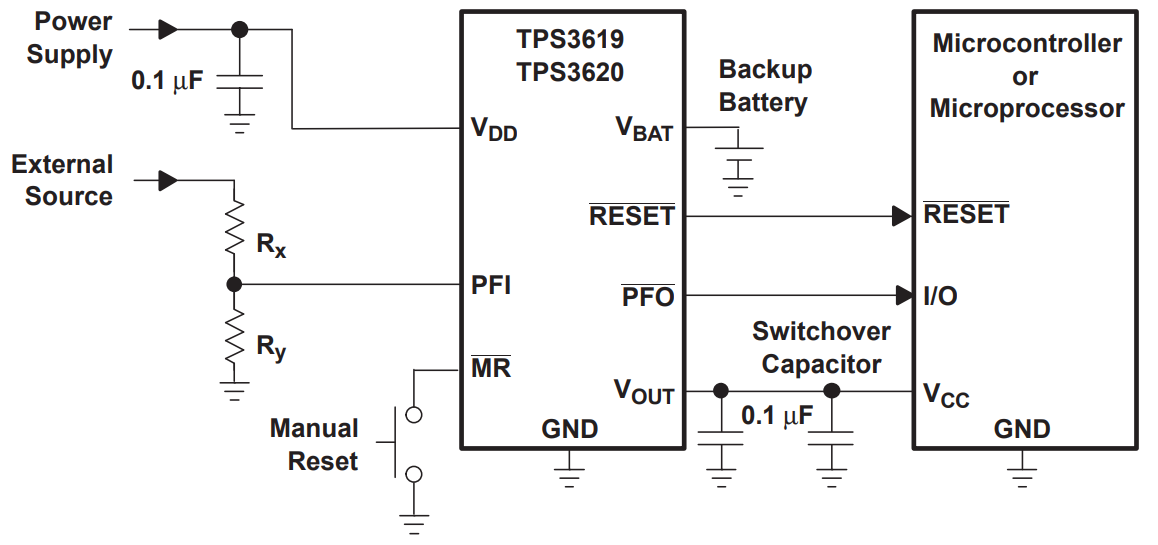

TPS3619-33DGKR Typical application Circuitry

TPS3619-33DGKR is a microprocessor supervisory circuit that offers power-on reset control and watchdog timer features. Essentially, it monitors the supply voltage for microprocessors, microcontrollers, DSPs, and other digital systems and assists in resetting or restarting the system in case of a malfunction or power interruption.

Application Scenarios:

The TPS3619-33DGKR can be used across various electronic platforms including, but not limited to, smart devices, networking equipment, automotive systems, industrial controllers, and computer systems. Its primary role is to ensure the system's proper initialization during power-up and to maintain system integrity during power disturbances.

Key Features:

1. Watchdog Timer with a dedicated output.

2. Manual Reset input.

3. Supply voltage monitoring.

4. wide range of operating temperatures.

5. very little power usage.

Application Example – Industrial Controller System Monitoring:

1. Supply Voltage Input:

- The `VDD` pin of the TPS3619-33DGKR should be connected directly to the system's power supply, allowing the chip to monitor the supply voltage.

2. Resetting the System:

- The `RESET` pin provides a reset signal. This ought to be connected to the controller's or CPU's reset input. In cases where the voltage drops below a predetermined threshold or if the watchdog timer isn't periodically reset, this pin goes active, signaling the controller to reset.

3. Grounding:

- The `GND` pin must be connected to the system's ground to complete the circuit.

4. Watchdog Timer:

- The watchdog timer's output can be found on the 'WDO' pin. It can be connected to an interrupt on the controller, signaling it if the system hasn't been reset within a set timeframe, indicating a possible system hang or malfunction.
- The `WDI` pin is the watchdog timer input. It expects periodic signals from the system. If these signals are absent, it triggers the `WDO`.

5. Manual Reset Mechanism:

- The `MR` pin provides a manual reset option. It can be connected to an external push-button that users can press to manually reset the system.

Design Considerations:

1. Supply Noise: To ensure the TPS3619-33DGKR operates correctly and doesn't false-trigger, use decoupling capacitors close to the VDD pin to filter potential supply noise.

2. Watchdog Timing: Ensure that the system's software or firmware resets the watchdog timer at suitable intervals to avoid unwanted resets.

3. Component Placement: It's advisable to place the TPS3619-33DGKR and associated components in close proximity on the PCB. This minimizes trace lengths and potential interference.

4. External Interference: Given its monitoring nature, keep the TPS3619-33DGKR away from high-frequency or high-power components to prevent undesired interactions.

In summation, the TPS3619-33DGKR is an invaluable component for systems demanding consistent operation and protection against unforeseen power interruptions or malfunctions. Proper integration into a circuit, considering component placement and noise protection, ensures its reliable operation.
