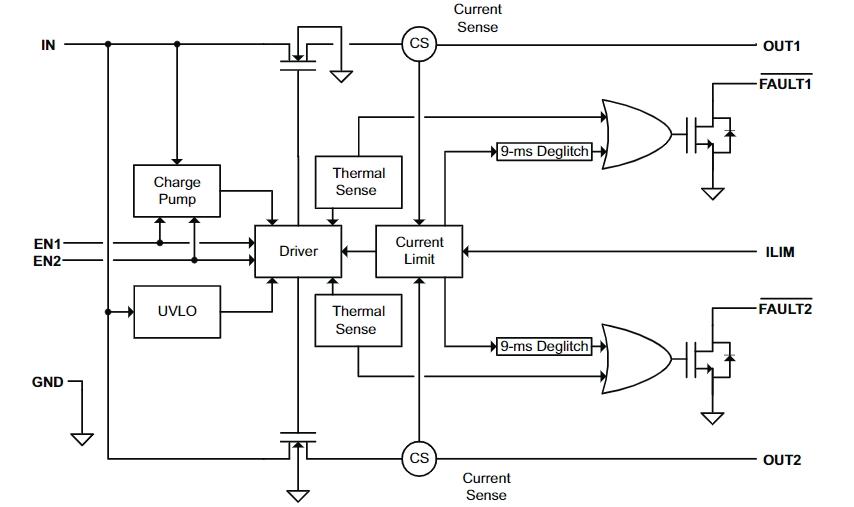

TPS2561DRCEVM-424 Typical application Circuitry

TPS2561DRCEVM-424

The TPS2561DRCEVM-424 is an evaluation module (EVM) for the TPS2561DRC (dual-channel precision adjustable current-limit power distribution switch). This EVM is designed to facilitate testing and development of the TPS2561DRC chip.

Functionality of TPS2561DRC in TPS2561DRCEVM-424

The TPS2561DRC, the core component of the EVM, functions as a dual-channel adjustable current-limited power distribution switch. It manages power distribution in electronic circuits with an emphasis on precision current regulation and overcurrent protection.

Application Scenarios

This EVM (and the TPS2561DRC) is used in:

- Development of Charging Stations: For designing and testing multi-port USB chargers.

- Consumer Electronics Prototyping: In creating power management solutions for devices like smartphones and tablets.

- Industrial Equipment Development: For prototyping power control systems in industrial applications.

Key Specifications

- Programmable Current Limit: Allows customization of current thresholds for each channel.

- Independent Channel Operation: Manages two separate power paths.

- Overcurrent and Thermal Protection: Safety features to prevent damage due to excessive current or overheating.

- Low RDS(on): Ensures efficient power transmission with minimal loss.

Application Example: Prototyping a Dual-Port USB Charger

Using the TPS2561DRCEVM-424 for developing a dual-port USB charger involves the following circuit connections:

Circuit Connection Guide

1. Power Input (VIN Connector): Connect the main 5V power supply to this connector on the EVM.

2. USB Outputs (OUT1 and OUT2 Connectors): Connect these to the USB ports of the charger, controlling power delivery to devices.

3. Current Limit Setting (ILIM Connector): Use external components connected to this header to set specific current limits for each channel.

4. Enable Control (EN1 and EN2 Connectors): These connectors are linked to a control unit (like a microcontroller) to switch each USB port on or off.

5. Ground Connection (GND Connector): Provides a common ground reference for the EVM.

6. Fault Indicators (FLT1 and FLT2 Connectors): Connect to a diagnostic interface to monitor and signal fault conditions.

Design Considerations

When designing with the TPS2561DRCEVM-424, consider the following:

- Prototyping Efficiency: Utilize the EVM for rapid testing and iteration of designs.

- Current Limit Accuracy: Ensure the set current limits match the requirements of the USB devices.

- Thermal Management in Design: Account for heat dissipation in the final product.

- Device Compatibility: Ensure the final design is compatible with a range of USB-powered devices.

By following these guidelines and using the EVM for prototyping, developers can effectively utilize the TPS2561DRCEVM-424 to design and test power management solutions, such as a dual-port USB charger, ensuring efficient power distribution and robust protection for connected devices.
