Texas Instruments TLV9052SIDGSR

Part No.:: TLV9052SIDGSR

Manufacturer:: Texas Instruments

Package:: 10-TFSOP, 10-MSOP (0.118, 3.00mm Width)

Datasheet:: TLV9052SIDGSR.pdf

Description:: IC CMOS 2 CIRCUIT 10VSSOP

In Stock:: 12841

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLV9052SIDGSR Specifications

Package/Case:
10-TFSOP, 10-MSOP (0.118, 3.00mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
CMOS
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
15V/µs
GainBandwidthProduct:
5 MHz
-3dbBandwidth:
-
Current-InputBias:
2 pA
Voltage-InputOffset:
330 µV
Current-Supply:
330µA
Current-Output/Channel:
50 mA
Voltage-SupplySpan(Min):
1.8 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

TLV9052SIDGSR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLV9052SIDGSR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLV9052SIDGSR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLV9052SIDGSR information

Views：

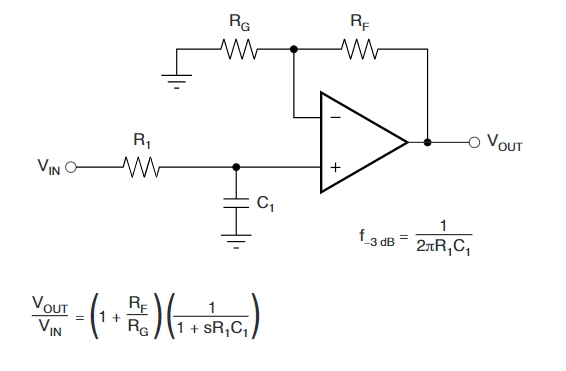

TLV9052SIDGSR Typical application Circuitry

TLV9052SIDGSR

The TLV9052SIDGSR is a dual operational amplifier (op-amp) integrated circuit, developed by Texas Instruments. It is designed for general-purpose applications and is known for its low power consumption, small size, and high performance. This op-amp is commonly used in signal conditioning, active filtering, and audio processing, as well as in sensor interfaces and battery-powered devices.

Application Scenario: Active Low-Pass Filter Design

In the design of an active low-pass filter, the TLV9052SIDGSR is used to attenuate high-frequency signals, making it ideal for audio applications or noise reduction in signal processing systems.

Parameter Features:

- Low Power Consumption: Ideal for battery-powered and portable applications.

- Wide Supply Voltage Range: Can operate across a range of voltages, making it versatile for different circuit designs.

- Rail-to-Rail Output: Provides maximum dynamic range, especially useful in low voltage applications.

Specific Circuit Connection - Active Low-Pass Filter

1. Power Supply Connections: Connect the V+ pin to a positive power supply and the V- pin to the ground. This chip operates effectively across a range of power supply voltages.

2. Input Signal Connection: Connect the input signal to the non-inverting input (Pin 3) of the first op-amp within the TLV9052SIDGSR.

3. Feedback Loop for Filtering: Connect a resistor and capacitor in series between the output (Pin 1) and the inverting input (Pin 2) of the first op-amp. This configuration sets the filter's cutoff frequency.

4. Output Connection: The output of the first op-amp (Pin 1) gives the filtered signal, which can be connected to a subsequent stage or output device.

Considerations in Circuit Design

1. Power Supply Noise and Stability: Ensure a clean and stable power supply to minimize noise in the output signal.

2. Component Selection: Choose appropriate values for resistors and capacitors to achieve the desired filter characteristics.

3. PCB Layout: Careful layout planning is important to minimize noise and interference, especially in sensitive audio applications.

4. Thermal Management: Although the TLV9052SIDGSR has low power consumption, ensure adequate ventilation in the

design to prevent any potential thermal issues, especially in enclosed or compact spaces.

In conclusion, the TLV9052SIDGSR is an effective and versatile op-amp for applications such as active low-pass filters. When designing circuits with this chip, attention to power supply quality, component selection, PCB layout, and thermal management are key to achieving optimal performance and reliability.
