Texas Instruments TLV272IDRG4

Part No.:: TLV272IDRG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TLV272IDRG4.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 3150

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLV272IDRG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
2.6V/µs
GainBandwidthProduct:
3 MHz
-3dbBandwidth:
-
Current-InputBias:
1 pA
Voltage-InputOffset:
500 µV
Current-Supply:
550µA (x2 Channels)
Current-Output/Channel:
8 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
16 V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

TLV272IDRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLV272IDRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLV272IDRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLV272IDRG4 information

Views：

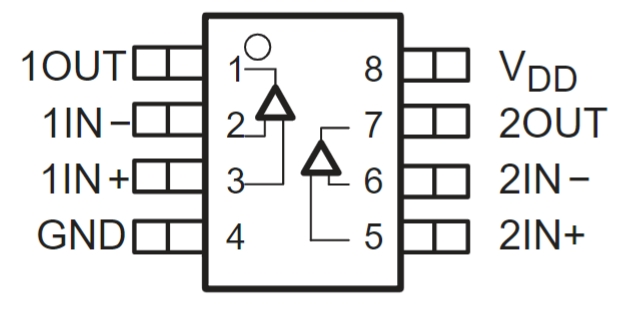

TLV272IDRG4 Typical application Circuitry

TLV272IDRG4

The TLV272IDRG4 is a dual operational amplifier (op-amp) integrated circuit developed by Texas Instruments. This op-amp is characterized by its low power consumption, wide bandwidth, and rail-to-rail output, making it particularly useful in applications such as signal conditioning, sensor amplification, active filters, and audio processing.

Application Scenario: Sensor Signal Amplification

In sensor signal amplification, the TLV272IDRG4 is employed to amplify low-level signals from sensors, making them suitable for further processing or analog-to-digital conversion, a common requirement in data acquisition systems.

Parameter Features:

- Low Power Consumption: Ideal for battery-powered or energy-efficient devices.

- Wide Bandwidth: Ensures accurate signal processing across a wide frequency range.

- Rail-to-Rail Output: Allows for maximum dynamic range in signal amplification.

- Dual Op-Amp Configuration: Offers two operational amplifiers in one package, which can be beneficial for handling multiple signals or complex configurations.

Specific Circuit Connection - Sensor Signal Amplification

1. Power Supply Connections: Attach the V-pin to the ground and the V+ pin to a positive power source (up to 16V). Ensuring a stable power supply is critical for accurate amplification.

2. Sensor Input Connection: Attach the sensor's output to the non-inverting input (IN+) of the first op-amp. Ensure that the sensor output voltage is within the operating range of the TLV272IDRG4.

3. Feedback Loop for Gain Control: Connect a resistor network between the output (OUT) and the inverting input (IN-) to set the desired amplification gain.

4. Output to Processing Unit: The amplified signal from the OUT pin can be directed to further processing units, such as ADCs or microcontrollers.

5. Bypass Capacitor on Power Line: To reduce noise and increase stability, use a bypass capacitor (usually 0.1 µF) in close proximity to the power supply pins.

Considerations in Circuit Design

1. Power Supply Integrity: Ensure a clean and stable power supply, as fluctuations and noise can significantly impact the performance of the op-amp.

2. Correct Gain Setting : Accurately calculate and set the gain required for the sensor signal to prevent distortion or saturation.

3. PCB Layout and Shielding: Design the PCB to minimize noise and crosstalk, especially important in analog circuits. Proper shielding may be necessary to protect the signal paths from external interference.

4. Thermal Considerations: Although the TLV272IDRG4 is a low-power device, consider heat dissipation in the layout, particularly if operating near maximum supply voltage or in high ambient temperatures.

In conclusion, the TLV272IDRG4 is a versatile and efficient op-amp well-suited for applications like sensor signal amplification. Careful attention to power supply quality, gain settings, PCB layout, and thermal management is crucial in designing circuits with this chip to ensure optimal performance and signal integrity.
