Texas Instruments TLE2062CDG4

Part No.:: TLE2062CDG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TLE2062CDG4.pdf

Description:: IC OPAMP JFET 2MHZ 8SOIC

In Stock:: 2222

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLE2062CDG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Active
AmplifierType:
J-FET
NumberofCircuits:
2
OutputType:
-
SlewRate:
3.4V/µs
GainBandwidthProduct:
2 MHz
-3dbBandwidth:
-
Current-InputBias:
4 pA
Voltage-InputOffset:
900 µV
Current-Supply:
625µA (x2 Channels)
Current-Output/Channel:
80 mA
Voltage-SupplySpan(Min):
7 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

TLE2062CDG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLE2062CDG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLE2062CDG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLE2062CDG4 information

Views：

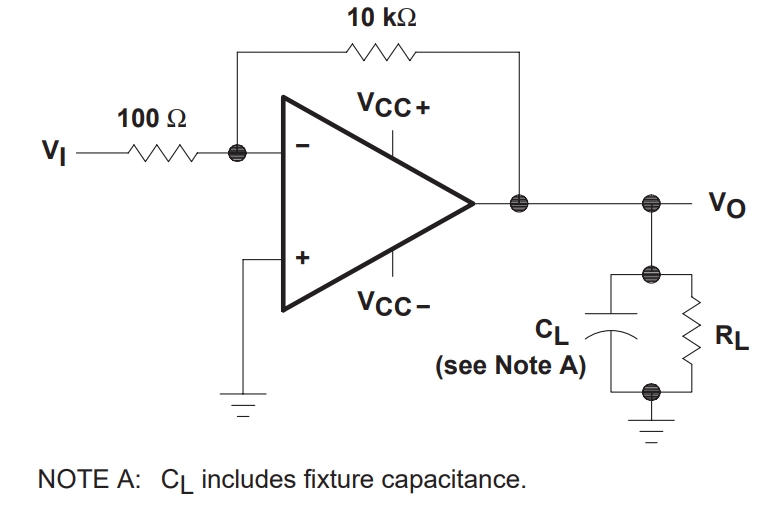

TLE2062CDG4 Typical application Circuitry

TLE2062CDG4

The TLE2062CDG4 is a distinct operational amplifier (op-amp) recognized for its dual-channel configuration and energy-efficient operation. It finds its niche in a variety of electronic circuits due to its versatile attributes.

1. Dual-Channel Op-Amp Function: This chip features two operational amplifiers in a single package, making it highly suitable for compact and integrated circuit designs.

2. Diverse Application Spectrum: The TLE2062CDG4 is extensively utilized in precision analog processing, signal conditioning, and audio amplification, especially in scenarios demanding low power consumption.

3. Key Technical Specifications: Notable for its broad supply voltage range (approximately ±4V to ±18V), the TLE2062CDG4 also boasts low input bias current and high input impedance, which are advantageous for handling delicate analog signals.

4. Circuit Implementation - Precision Analog Processor:

- Signal Input Configuration: Direct the analog signal to the non-inverting input (pin 3) of the first amplifier.

- Gain Setting: Create a feedback loop from the output (pin 1) to the inverting input (pin 2), using resistors to set the desired gain level.

- Stable Power Supply Setup: Connect a ±10V supply to V+ (pin 8) and V- (pin 4), ensuring the use of decoupling capacitors for a smooth power supply.

- Output Extraction: Obtain the processed analog signal from the output (pin 1) of the first op-amp.

5. Design Factors to Consider:

- Voltage Compatibility: It's crucial to ensure the supply voltage aligns with the chip's operating range to prevent damage.

- Minimizing Noise Interference: Implementing a noise-reducing PCB layout is vital for maintaining signal integrity.

- Effective Thermal Management: Good heat dissipation practices are essential, despite the chip's low-power design, for maintaining operational stability.

The TLE2062CDG4's dual op-amp configuration makes it exceptionally useful in applications where space is limited but dual signal processing is required. Its low power consumption and high input impedance make it an ideal choice for battery-operated devices and sensitive analog signal processing applications. The TLE2062CDG4 chip's versatility in operating across a wide voltage range adds to its adaptability in various electronic designs, from small-scale consumer electronics to more complex industrial systems.
