Texas Instruments TLC2652I-8DR

Part No.:: TLC2652I-8DR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TLC2652I-8DR.pdf

Description:: IC OPAMP ZERO-DRIFT 1 CIRC 8SOIC

In Stock:: 2403

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLC2652I-8DR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
LinCMOS™
ProductStatus:
Active
AmplifierType:
Zero-Drift
NumberofCircuits:
1
OutputType:
-
SlewRate:
3.1V/µs
GainBandwidthProduct:
1.9 MHz
-3dbBandwidth:
-
Current-InputBias:
4 pA
Voltage-InputOffset:
0.6 µV
Current-Supply:
1.5mA
Current-Output/Channel:
50 mA
Voltage-SupplySpan(Min):
3.8 V
Voltage-SupplySpan(Max):
16 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

TLC2652I-8DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLC2652I-8DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLC2652I-8DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLC2652I-8DR information

Views：

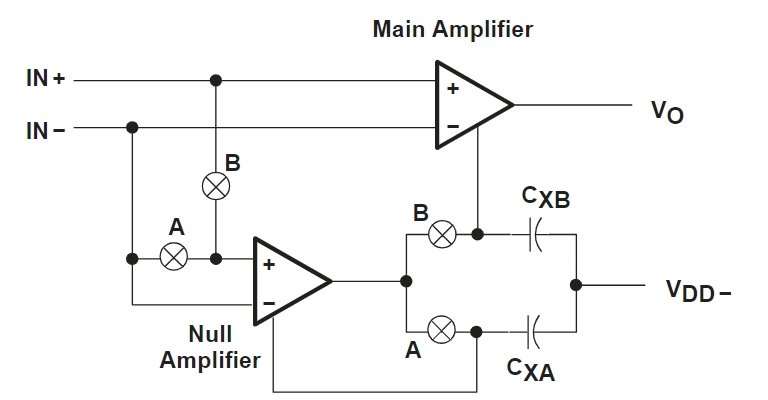

TLC2652I-8DR Typical application Circuitry

TLC2652I-8DR

The TLC2652I-8DR is a precision operational amplifier (op-amp) featuring a chopper-stabilized design. This op-amp is widely used in applications requiring high accuracy and low noise, such as medical instrumentation, precision measurement devices, and sensor signal amplification. The key features of the TLC2652I-8DR include:

1. Low Input Offset Voltage: The TLC2652I-8DR offers very low input offset voltage, making it ideal for precision applications.

2. Low Noise: Its chopper-stabilized design significantly reduces noise, enhancing signal quality.

3. Wide Bandwidth: The op-amp provides a wide bandwidth, suitable for a range of signal processing tasks.

4. High Input Impedance: The high input impedance minimizes the loading effect on the signal source.

An application scenario for the TLC2652I-8DR is in a Precision Sensor Signal Amplification Circuit:

- Objective: To amplify low-level signals from a precision sensor in a laboratory measurement device.

1. Sensor Interface: Connect the output of the precision sensor to the non-inverting input (IN+) of the TLC2652I-8DR.

2. Power Supply Connection: Attach a stable power source to the VDD pin and connect the ground to the VSS pin of the TLC2652I-8DR. Ensure power supply stability for accurate amplification.

3. Feedback Network: Configure a feedback network between the output (OUT) and inverting input (IN-) of the TLC2652I-8DR. Use precision resistors to set the desired gain.

4. Output to ADC: Connect the output of the TLC2652I-8DR to an Analog-to-Digital Converter (ADC) for digital processing of the amplified signal.

5. Decoupling Capacitors: Place decoupling capacitors close to the power supply pins of the TLC2652I-8DR to minimize power supply noise.

Design considerations when using the TLC2652I-8DR include:

- Stability and Bypassing: Ensure the stability of the op-amp by properly bypassing the power supply pins with capacitors to reduce noise.

- Gain Setting Accuracy: Use precision resistors in the feedback network to accurately set the gain and maintain the linearity of amplification.

- Thermal Management: Take into account the circuit's thermal characteristics, as high temperatures can compromise the TLC2652I-8DR's functionality.

- Signal Integrity: Maintain the integrity of the input signal by minimizing the length of the traces and avoiding interference from other signals.

In summary, the TLC2652I-8DR is an advanced operational amplifier suitable for precision sensor signal amplification, known for its low noise and high accuracy. Key design considerations include ensuring power supply stability, accurate gain setting, thermal management, and maintaining signal integrity.
