Texas Instruments TLC1543QDWRG4

Part No.:: TLC1543QDWRG4

Manufacturer:: Texas Instruments

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: TLC1543QDWRG4.pdf

Description:: IC ADC 10BIT SAR 20SOIC

In Stock:: 3619

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TLC1543QDWRG4 Specifications

Packaging:
Tape & Reel (TR),Bulk
Series:
-
Product Status:
Discontinued at Mosen
Number of Bits:
10
Sampling Rate(PerSecond):
38k
Number of Inputs:
11
Input Type:
Single Ended
Data Interface:
SPI
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
Selectable Address
Operating Temperature:
-40°C ~ 125°C

TLC1543QDWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TLC1543QDWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TLC1543QDWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TLC1543QDWRG4 information

Views：

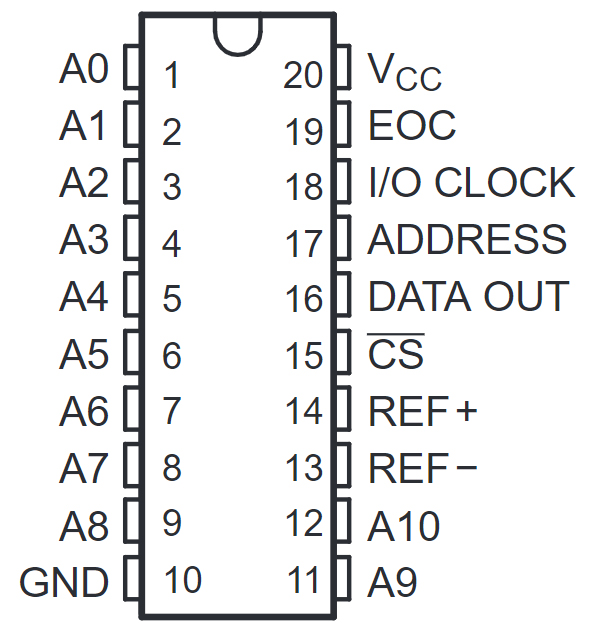

TLC1543QDWRG4 Typical application Circuitry

TLC1543QDWRG4

The TLC1543QDWRG4 is a part of the TLC1543 series, a 10-bit analog-to-digital converter (ADC) with an integrated multiplexer and sample-and-hold circuit. This device is particularly designed for low-power operation and high-performance data acquisition systems.

1. Power Supply Connections: The TLC1543QDWRG4 requires a single power supply, typically +5V. Join pin 16 (the Vcc pin) to the +5V supply.. The ground (GND) connection is made at pin 8.

2.Reference Voltage Setup: often known as Vref, establishes the range of input voltages that the ADC is capable of reliably converting. Connect a stable reference voltage to Vref+ (pin 14). Vref- is typically connected to GND (pin 9).

3. Analog Input Configuration: The TLC1543QDWRG4 features an 11-channel multiplexer. Analog inputs can be connected to pins AIN0 to AIN10 (pins 1 to 11). Ensure that the analog signals are within the 0 to Vref+ range.

4. Digital Interface: For data communication, connect the I/O port (pin 13) to the microcontroller or processor. Depending on the control signals, the I/O port acts as the serial clock (SCLK), serial data in (SDI), and serial data out (SDO).

5. Signals of Control: When pulled low, the Chip Select (\CS) pin (pin 15) starts the conversion process. When the conversion is finished, the End of Conversion (EOC) output (pin 12), which can be used to synchronize data retrieval, goes low..

6. Timing Considerations: Proper timing must be maintained for the CS, I/O, and EOC signals to ensure accurate data conversion and retrieval in the TLC1543QDWRG4.

7. Decoupling Capacitors: To minimize noise and ensure stable operation, connect a 0.1 µF decoupling capacitor close to the Vcc and GND pins of the TLC1543QDWRG4.

In your circuit design, ensure that all connections are secure and that the TLC1543QDWRG4 is integrated according to the specific needs of your application, taking into account the ADC's speed, power consumption, and resolution specifications.
