Analog Devices Inc. AD7655ASTZRL

Part No.:: AD7655ASTZRL

Manufacturer:: Analog Devices Inc.

Package:: 48-LQFP

Datasheet:: AD7655ASTZRL.pdf

Description:: IC ADC 16BIT SAR 48LQFP

In Stock:: 4928

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

AD7655ASTZRL Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
PulSAR®
Product Status:
Active
Number of Bits:
16
Sampling Rate(PerSecond):
1M
Number of Inputs:
2, 4
Input Type:
Pseudo-Differential, Single Ended
Data Interface:
SPI, Parallel, DSP
Configuration:
MUX-S/H-MUX-ADC
Ratio-S/H:ADC:
2:1
Number of A/D Converters:
1
Architecture:
SAR
Reference Type:
External
Voltage-Supply Analog:
5V
Voltage-Supply Digital:
5V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 85°C

AD7655ASTZRL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including AD7655ASTZRL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for AD7655ASTZRL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

AD7655ASTZRL information

Views：

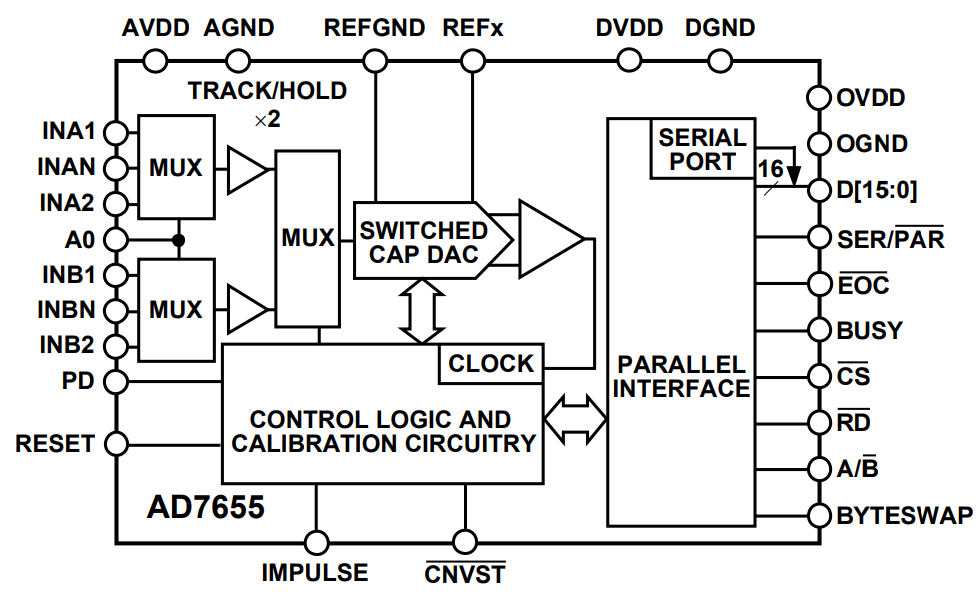

AD7655ASTZRL Typical application Circuitry

AD7655ASTZRL

The AD7655ASTZRL is a critical member of Analog Devices' family of dual 16-bit analog-to-digital converters (ADCs), celebrated for their precision and efficiency in converting analog signals into high-resolution digital data. Designed to meet the stringent requirements of applications such as precision data acquisition, medical equipment, and industrial process control, the AD7655ASTZRL distinguishes itself with simultaneous dual-channel sampling capability. This feature enables the accurate and synchronized acquisition of data from two analog sources, a necessity in complex systems where data integrity and timing are crucial.

1. Dedicated Analog Input Channels (AIN1A, AIN1B, AIN2A, AIN2B Pins): The AD7655ASTZRL offers four analog input pins, divided into two pairs: AIN1A and AIN1B for the first channel, and AIN2A and AIN2B for the second. This configuration allows for the differential sampling of analog signals, enhancing the precision and reducing the noise in the conversion process. The ability to process two differential signals simultaneously underscores the AD7655ASTZRL's utility in multi-signal environments.

2. Reference Voltage Configuration (REFIN+/REFIN- Pins): For ensuring the accuracy of conversions, the AD7655ASTZRL utilizes external reference voltage inputs through the REFIN+ and REFIN- pins. These pins are vital for setting the ADC's reference voltage, influencing the scale of digital conversion and thereby allowing users to tailor the device's performance to specific application needs.

3. Parallel Digital Interface (DB[15:0], CS, RD, WR Pins): The AD7655ASTZRL is equipped with a 16-bit parallel data bus (DB[15:0]) for the output of digital data, alongside control pins including CS (Chip Select), RD (Read), and WR (Write). This setup facilitates the rapid and straightforward retrieval of digital data post-conversion, making the ADC compatible with a wide range of microcontrollers and digital processors for efficient data processing and analysis.

4. Power Supply and Ground Separation (AVDD, DVDD, AGND, DGND Pins): To power its operations, the AD7655ASTZRL requires separate analog (AVDD) and digital (DVDD) power supplies, enhancing the device's performance by isolating the analog and digital sections to reduce noise interference. The separation of analog (AGND) and digital (DGND) grounds further mitigates potential signal contamination, ensuring the fidelity of both the input analog signals and the output digital data.

5. Conversion Control and Status Indication (CONVST, BUSY Pins): The conversion process is initiated through the CONVST pin, which starts the sampling and conversion upon triggering, allowing precise control over data acquisition timing. The BUSY pin serves as an indicator of the ADC's status, signaling when the device is actively converting and when the data is ready for retrieval, thereby optimizing the data handling workflow.

6. System Reset for Reliability (RESET Pin): The inclusion of a RESET pin provides a mechanism for resetting the internal circuits of the AD7655ASTZRL, ensuring that the device starts in a known state or can be quickly recovered from error conditions. This feature is essential for maintaining the reliability and stability of systems that incorporate the ADC.

The AD7655ASTZRL is a testament to Analog Devices' commitment to advancing ADC technology, offering high-speed, dual-channel data conversion with exceptional precision. Its detailed pin layout and operational features are meticulously designed to facilitate easy integration into advanced electronic systems, making the AD7655ASTZRL a valuable asset for engineers and designers tasked with developing applications requiring meticulous analog-to-digital conversion.
