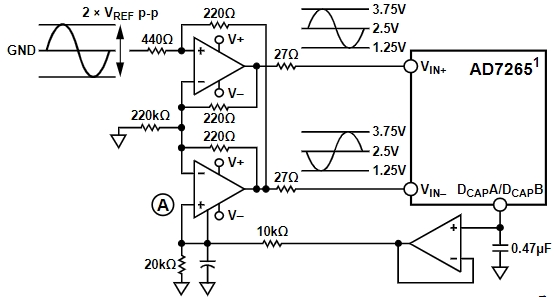

AD7265BSUZ-REEL7 Typical application Circuitry

AD7265BSUZ-REEL7

The AD7265BSUZ-REEL7 is a dual-channel, 12-bit ADC, offering simultaneous sampling capability with a high-speed serial interface. This chip is particularly suitable for applications that demand precise synchronization of multiple signals, such as in vibration analysis systems or multi-sensor monitoring setups.

Core Features of AD7265BSUZ-REEL7

1. Dual-Channel Simultaneous Sampling: Ensures accurate time-correlated measurements, vital for applications like vibration analysis in rotating machinery.

2. High-Speed Serial Data Transfer: Enables swift communication with microcontrollers or DSPs, essential for real-time monitoring applications.

3. Flexible Power Supply Options: Supports a 5V analog supply (AVDD) and a digital supply (DVDD) ranging from 2.7V to 5.25V, accommodating various system requirements.

Application Example: Vibration Analysis System

In a vibration analysis system for rotating machinery, the AD7265BSUZ-REEL7 can be used to simultaneously sample acceleration and velocity signals. Here's a detailed connection setup for this application:

1. Supply Voltage Connections: Connect a 5V source to the AVDD pin for the analog supply and a 3.3V source to the DVDD pin for the digital interface.

2. Sensor Inputs: Attach the acceleration sensor to the IN1 pin and the velocity sensor to the IN2 pin for concurrent sampling of these signals.

3. Reference Voltage Connection: Link a stable 2.5V reference to the REF pin to set the input range for the ADC.

4. SPI Interface: Connect the SCLK, SDI, and SDO pins to the corresponding SPI interface pins on a microcontroller for efficient data transfer.

5. Correct Grounding: To preserve signal integrity, make sure the AGND and DGND pins are connected to the system ground.

Integration of AD7265BSUZ-REEL7 Design Guidance

Take into account the following when creating a circuit with the AD7265BSUZ-REEL7:

- Maintain Signal Integrity: To reduce noise and distortion, use short, impedance-matched traces for the analog inputs.

- Power Supply Filtering: To reduce noise and provide a steady supply, place decoupling capacitors next to the AVDD and DVDD pins.

- Stable Reference Source: Employ a high-quality voltage reference for the REF pin to guarantee accurate and consistent ADC performance.

Utilizing the AD7265BSUZ-REEL7 in a vibration analysis system allows for the precise and simultaneous sampling of acceleration and velocity signals, providing valuable insights into the condition and performance of rotating machinery.

AD7265BSUZ-REEL7 information

AD7265BSUZ-REEL7 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
Product Status:
Active
Number of Bits:
12
Sampling Rate(PerSecond):
1M
Number of Inputs:
6, 12
Input Type:
Differential, Pseudo-Differential, Single Ended
Data Interface:
SPI, DSP
Configuration:
MUX-S/H-ADC
Ratio-S/H:ADC:
1:1
Number of A/D Converters:
2
Architecture:
SAR
Reference Type:
External, Internal
Voltage-Supply Analog:
2.7V ~ 5.25V
Voltage-Supply Digital:
2.7V ~ 5.25V
Features:
Simultaneous Sampling
Operating Temperature:
-40°C ~ 125°C
