Texas Instruments TL084IDRG4

Part No.:: TL084IDRG4

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.154, 3.90mm Width)

Datasheet:: TL084IDRG4.pdf

Description:: IC OPAMP JFET 4 CIRCUIT 14SOIC

In Stock:: 2710

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TL084IDRG4 Specifications

Package/Case:
14-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
J-FET
NumberofCircuits:
4
OutputType:
-
SlewRate:
13V/µs
GainBandwidthProduct:
3 MHz
-3dbBandwidth:
-
Current-InputBias:
30 pA
Voltage-InputOffset:
3 mV
Current-Supply:
1.4mA (x4 Channels)
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

TL084IDRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL084IDRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL084IDRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TL084IDRG4 information

Views：

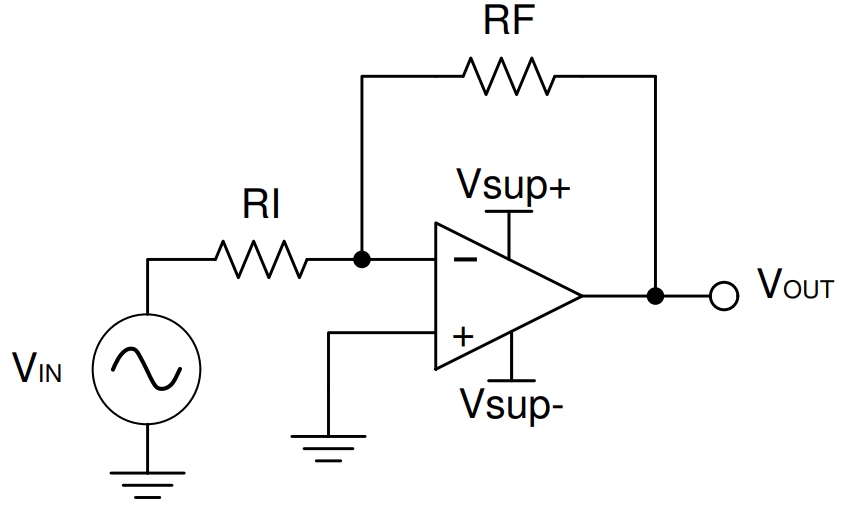

TL084IDRG4 Typical application Circuitry

TL084IDRG4

The TL084IDRG4 is an integrated circuit known for its functionality as a quad operational amplifier (op-amp) with JFET inputs, designed for a wide spectrum of electronic applications.

1. Core Functionality of TL084IDRG4: This op-amp is comprised of four independent amplifiers, each offering high input impedance and low input bias current. These features are crucial for precision applications where signal integrity is a priority.

2. Application Range: The TL084IDRG4 is commonly used in audio processing, active filtering, signal conditioning, analog-to-digital conversion, and control systems. Its ability to accurately process complex signals makes it a valuable component in both audio and industrial applications.

3. Parametric Highlights: Key specifications include a wide bandwidth (around 3 MHz), a high slew rate (approximately 13 V/µs), and the capacity to operate over various supply voltages. These attributes allow it to handle rapid signal changes efficiently.

4. Circuit Implementation – Analog Control System:

- Input Integration (Pins 3, 5, 10, 12): Connect control signal inputs to the non-inverting inputs of the amplifiers, setting the stage for signal processing.

- Feedback Loop Arrangement (Pins 2, 6, 9, 13): Develop feedback networks from the output pins to the inverting inputs, using resistors and capacitors to adjust the amplifiers' response to control signals.

- Power Supply Configuration (Pins 4 and 11): Link pin 4 to the negative power source and pin 11 to the positive, assuring a consistent dual-voltage operation.

- Output Delivery (Pins 1, 7, 8, 14): The processed control signals are extracted from these output pins, ready for further application.

5. Design Considerations:

- Management of Input Bias and Offset: Critical in control systems, minimizing input bias and offset is essential for accurate signal processing.

- Power Supply Stability: Maintaining a stable and noise-free power supply is crucial for the optimal performance of the op-amps.

- Noise Reduction Tactics: Implement strategies such as using bypass capacitors near the power supply pins to diminish noise.

- Thermal Stability: Pay attention to the TL084IDRG4's thermal behavior, especially in environments with fluctuating temperatures, to avoid performance drift.

In this application, the TL084IDRG4 is employed in an analog control system, using its four independent amplifiers to process multiple control signals effectively. Key aspects in designing such a circuit include meticulous control of input bias and offset, ensuring power supply stability, implementing noise reduction measures, and considering thermal factors to ensure reliable and precise control signal processing.
