Texas Instruments TL084CNG4

Part No.:: TL084CNG4

Manufacturer:: Texas Instruments

Package:: 14-DIP (0.300, 7.62mm)

Datasheet:: TL084CNG4.pdf

Description:: IC OPAMP JFET 4 CIRCUIT 14DIP

In Stock:: 3309

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TL084CNG4 Specifications

Package/Case:
14-DIP (0.300, 7.62mm)
Packaging:
Tube
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
J-FET
NumberofCircuits:
4
OutputType:
-
SlewRate:
13V/µs
GainBandwidthProduct:
3 MHz
-3dbBandwidth:
-
Current-InputBias:
30 pA
Voltage-InputOffset:
3 mV
Current-Supply:
1.4mA (x4 Channels)
Current-Output/Channel:
10 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Through Hole

TL084CNG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL084CNG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL084CNG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TL084CNG4 information

Views：

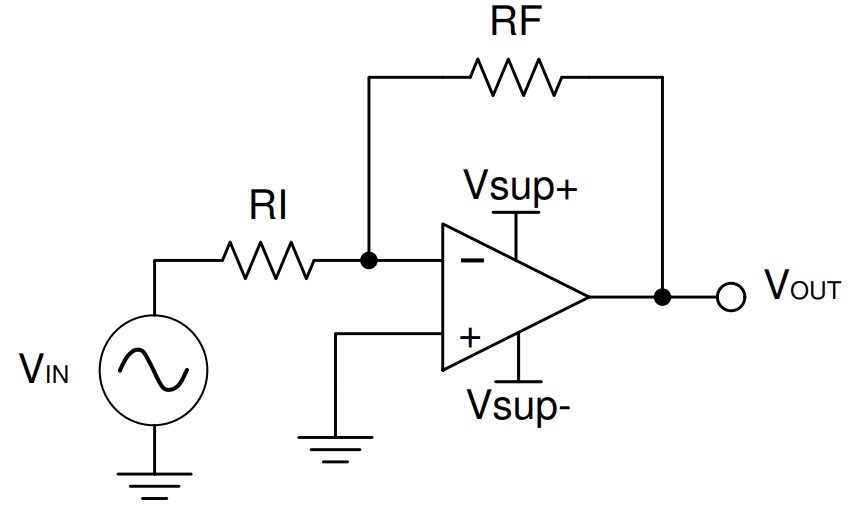

TL084CNG4 Typical application Circuitry

TL084CNG4

The TL084CNG4 is an integrated circuit functioning as a quad operational amplifier (op-amp) with JFET inputs. This chip is especially designed for a broad spectrum of electronic applications, leveraging its distinct operational characteristics.

1. Core Functionality of TL084CNG4: This device is distinguished by its four independent operational amplifiers, each featuring high input impedance and low input bias current. These qualities make it particularly suitable for precision applications where input signal fidelity is crucial.

2. Application Spectrum: The TL084CNG4 is widely utilized in fields like audio processing, active filtering, signal conditioning, and in analog-to-digital conversion systems. Its adeptness in handling intricate signal processing tasks makes it a preferred choice in both audio technology and control system applications.

3. Parametric Features: Essential attributes include an extensive bandwidth (typically around 3 MHz), a rapid slew rate (close to 13 V/µs), and the ability to function effectively across a wide range of supply voltages. These specifications empower it to adeptly handle quick and precise signal modifications.

4. Circuit Design – Multi-Channel Mixer:

- Signal Inputs (Pins 3, 5, 10, 12): Connect multiple audio sources to the non-inverting inputs of the amplifiers. These serve as the starting points for signal mixing.

- Feedback and Gain Control (Pins 2, 6, 9, 13): Establish feedback loops from the output pins to the inverting inputs, using resistors to set the desired gain for each channel.

- Power Supply Integration (Pins 4 and 11): Connect pin 4 to the negative power supply and pin 11 to the positive, ensuring stable dual-voltage operation.

- Mixed Output (Pins 1, 7, 8, 14): The mixed audio signals are retrieved from these output pins, each representing a different channel mix.

5. Design Considerations:

- Optimizing Input Bias and Offset: Minimizing bias and offset is vital in multi-channel audio mixing for accurate sound reproduction.

- Power Supply Stability: Ensuring a stable and clean power supply is critical for preventing noise interference in the audio output.

- Thermal Management: Be attentive to the thermal behavior of the TL084CNG4, especially in environments where temperature variations are prevalent.

In this application, the TL084CNG4 is used in a multi-channel audio mixer setup, taking advantage of its four independent amplifiers to mix multiple audio signals efficiently. Important considerations in this circuit design include meticulous management of input bias and offset, maintaining power supply integrity, and accounting for thermal conditions to ensure high-quality and consistent audio performance.
