Texas Instruments TL074CNSRG4

Part No.:: TL074CNSRG4

Manufacturer:: Texas Instruments

Package:: 14-SOIC (0.209, 5.30mm Width)

Datasheet:: TL074CNSRG4.pdf

Description:: IC OPAMP JFET 4 CIRCUIT 14SO

In Stock:: 3793

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TL074CNSRG4 Specifications

Package/Case:
14-SOIC (0.209, 5.30mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
J-FET
NumberofCircuits:
4
OutputType:
-
SlewRate:
13V/µs
GainBandwidthProduct:
3 MHz
-3dbBandwidth:
-
Current-InputBias:
65 pA
Voltage-InputOffset:
3 mV
Current-Supply:
1.4mA (x4 Channels)
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

TL074CNSRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL074CNSRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL074CNSRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TL074CNSRG4 information

Views：

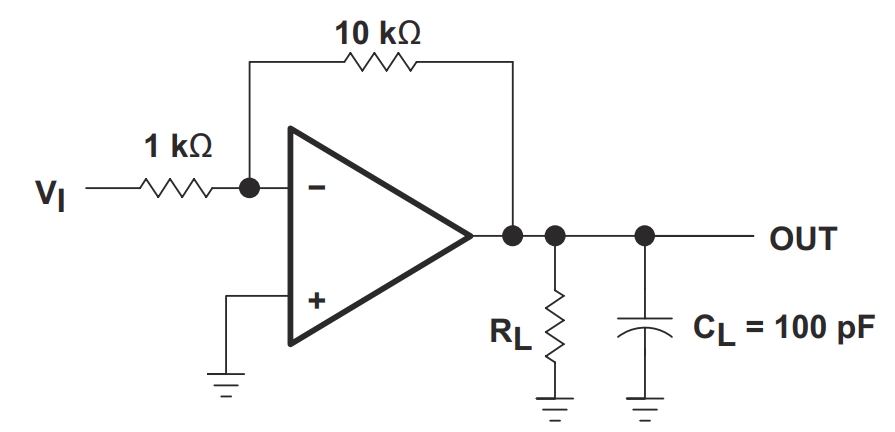

TL074CNSRG4 Typical application Circuitry

TL074CNSRG4

The TL074CNSRG4 is a quad operational amplifier (op-amp) chip, featuring four independent JFET-input amplifiers in a single package. It is renowned for having low noise, high input impedance, and low power consumption, which make it appropriate for a variety of analog signal processing applications.

TL074CNSRG4 Application Scenarios

- Audio Processing: Used in mixers, equalizers, and audio signal conditioning.

- Active Filters: Perfect for building different kinds of active filters for use in communication and audio systems.

- Oscillators: Employed in generating signal waveforms.

- Sensor Amplifiers: Amplifying signals from sensors in data acquisition systems.

TL074CNSRG4 Key Features

- Quad Op-Amp Configuration: Four independent op-amps in one package.

- Minimal Noise: Fit for applications requiring high fidelity in audio.

- High input impedance: lessens the TL074CNSRG4 impact of loading on the signal sources.

- Low Power Consumption: Efficient for battery-operated devices.

- Wide Bandwidth: Ensures a broad frequency response.

Circuit Integration: Multi-Channel Audio Mixer

1. Power Supply Connections:

- VCC+ (Pin 4): Connect to a positive power supply (e.g., +15V).

- VCC- (Pin 11): Connect to a negative power supply (e.g., -15V).

2. Channel Inputs:

- Non-Inverting Inputs (Pins 3, 5, 10, 12 for Amps 1-4): Connect to individual audio input sources.

- Inverting Inputs (Pins 2, 6, 9, 13 for Amps 1-4): Grounded or connected to the output through feedback resistors for gain control.

3. Output Stage:

- Outputs (Pins 1, 7, 8, 14 for Amps 1-4): Connect each output to a mixing resistor network, then combine to a common output node.

4. Gain Control:

- Use resistor networks between the outputs and inverting inputs to control the gain of each channel.

Design Considerations of TL074CNSRG4

- Power Supply Quality: Ensure a stable and noise-free power supply for optimal audio performance.

- Component Selection: To preserve signal integrity and precise gain control, use premium resistors and capacitors.

- Noise Reduction: To reduce noise, place bypass capacitors next to the pins of the power supply.

- Thermal Management: Consider heat dissipation in the design, especially in high-power applications.

- PCB Layout: Design the PCB to minimize noise coupling and signal interference, keeping signal paths short and isolated from power lines.

The TL074CNSRG4, with its quad op-amp configuration, is highly effective in applications like multi-channel audio mixers, where individual signal channel processing is required. Its low noise and high input impedance make it particularly suitable for audio applications. Successful circuit design with this chip involves careful attention to power supply regulation, precise component choice, noise management, thermal considerations, and strategic PCB layout, all critical for achieving high-quality performance and reliability in audio signal processing applications.
