Texas Instruments TL072CPWRE4

Part No.:: TL072CPWRE4

Manufacturer:: Texas Instruments

Package:: 8-TSSOP (0.173, 4.40mm Width)

Datasheet:: TL072CPWRE4.pdf

Description:: IC OPAMP JFET 2 CIRCUIT 8TSSOP

In Stock:: 3674

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TL072CPWRE4 Specifications

Package/Case:
8-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
J-FET
NumberofCircuits:
2
OutputType:
-
SlewRate:
13V/µs
GainBandwidthProduct:
3 MHz
-3dbBandwidth:
-
Current-InputBias:
65 pA
Voltage-InputOffset:
3 mV
Current-Supply:
1.4mA (x2 Channels)
Current-Output/Channel:
-
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
30 V
OperatingTemperature:
0°C ~ 70°C (TA)
MountingType:
Surface Mount

TL072CPWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TL072CPWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TL072CPWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TL072CPWRE4 information

Views：

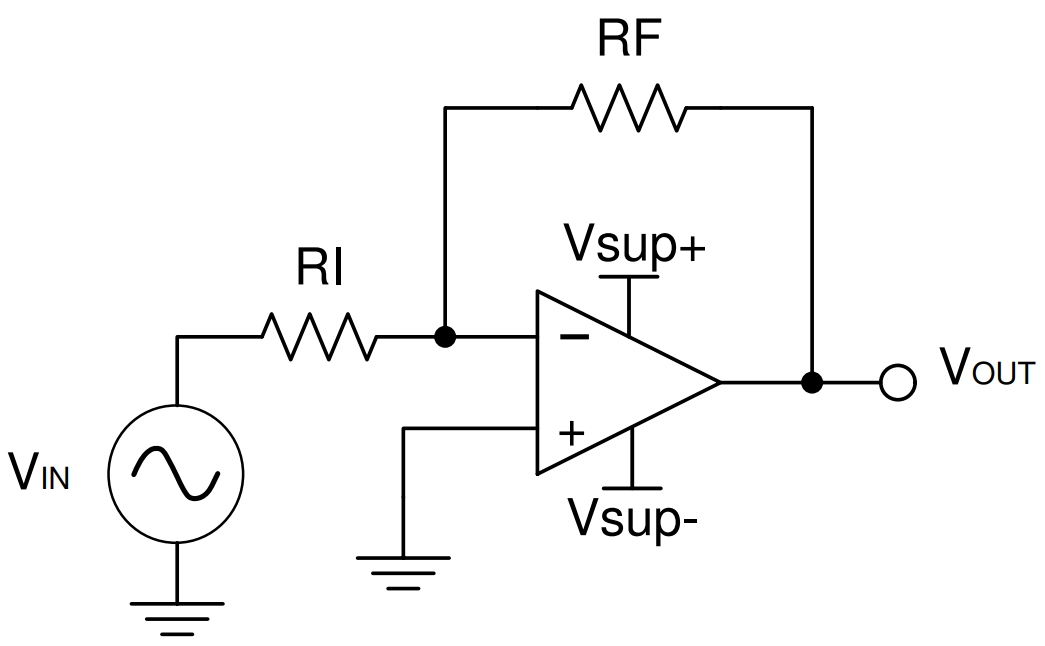

TL072CPWRE4 Typical application Circuitry

TL072CPWRE4

The TL072CPWRE4 is a dual low-noise JFET-input operational amplifier (op-amp), commonly used in applications where low power consumption, high input impedance, and low noise are crucial.

TL072CPWRE4 Application Scenarios

- Audio Processing: Used in audio mixers, guitar pedals, and preamplifiers for its low-noise characteristics.

- Active Filtering: Employed in building active filters for audio or signal processing.

- Sensor Signal Amplification: Ideal for amplifying low-level signals from various sensors.

- Voltage Follower: Utilized for buffering and impedance matching in complex circuits.

TL072CPWRE4 Main Elements

- Dual Op-Amp Configuration: This design houses two operational amplifiers in one housing.

- Low Noise Performance: Fit for applications requiring great quality in audio.

- High input impedance: Reduces input source loading.

- Low Power Consumption: Effective for gadgets running on batteries.

- Wide Bandwidth and High Slew Rate: Capable of handling fast signal variations.

Circuit Integration: Audio Pre-Amplifier

1. Power Supply Connections:

- VCC+ (Pin 8): Connect to the positive power supply, typically +15V.

- VCC- (Pin 4): Connect to the negative power supply, like -15V.

2. Input Stage:

- Non-Inverting Input (Pin 3 for Amp 1): Connect to the audio input source.

- Inverting Input (Pin 2 for Amp 1): Connect to the output through a feedback resistor for gain control.

3. Output Stage:

- Output (Pin 1 for Amp 1): Connect to the next stage in the audio processing chain.

4. Gain Setting:

- Use a resistor network between the output and inverting input to control the gain.

Design Considerations of TL072CPWRE4

- Power Supply Quality: Ensure a stable power supply for minimizing noise and distortion.

- Feedback Network Precision: Use high-quality resistors for accurate gain control.

- Noise Reduction: Implement bypass capacitors near the power pins to minimize electrical noise.

- Thermal Management: Adequately manage heat dissipation, especially in high-power applications.

- PCB Layout: Design the PCB to reduce noise coupling and signal interference, particularly in audio circuits.

The TL072CPWRE4 is an effective solution for audio pre-amplification and other signal processing applications requiring low noise and precision amplification. Its dual op-amp configuration and high input impedance make it versatile for various analog processing applications. Key considerations in circuit design include ensuring power supply stability, selecting precise components for the feedback network, managing noise effectively, and careful PCB layout to achieve optimal performance and reliability in the application.
