STMicroelectronics TJM4558CDT

Part No.:: TJM4558CDT

Manufacturer:: STMicroelectronics

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: TJM4558CDT.pdf

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 2110

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

TJM4558CDT Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
-
SlewRate:
2.2V/µs
GainBandwidthProduct:
5.5 MHz
-3dbBandwidth:
-
Current-InputBias:
50 nA
Voltage-InputOffset:
1 mV
Current-Supply:
2.3mA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
44 V
Voltage-SupplySpan(Max):
44 V
OperatingTemperature:
0°C ~ 70°C
MountingType:
Surface Mount

TJM4558CDT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including TJM4558CDT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for TJM4558CDT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

TJM4558CDT information

Views：

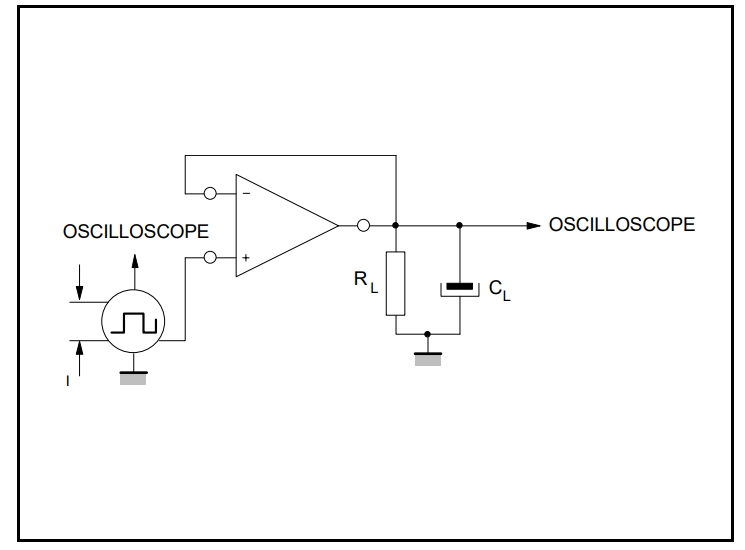

TJM4558CDT Typical application Circuitry

TJM4558CDT

The TJM4558CDT is a dual operational amplifier (op-amp) chip, widely used in various electronic circuits for signal amplification and conditioning. This chip is known for its versatility and cost-effectiveness.

1. Primary Functionality: The TJM4558CDT serves as an operational amplifier, performing tasks such as signal amplification, filtering, and other analog signal processing in a variety of electronic circuits.

2. Application Scenarios: Commonly used in audio processing equipment like mixers and preamplifiers, active filters, and signal conditioning circuits in measurement devices.

3. Key Features: The TJM4558CDT features dual op-amps in one package, a wide bandwidth, a high slew rate, and low noise operation, making it suitable for audio applications and general-purpose amplification.

4. Circuit Integration in Preamplifiers for Audio:

- VCC+ (Pin 8) and VCC- (Pin 4): Attach to the corresponding positive and negative power supply rails. For many audio applications, a bipolar power supply (e.g., ±15V) is used.

- Non-Inverting Input (Pin 3 for Amp 1, Pin 5 for Amp 2): Connect to the audio signal source.

- Inverting Input (Pin 2 for Amp 1, Pin 6 for Amp 2): Typically connected to the output through a feedback resistor to set the gain.

- Output (Pin 1 for Amp 1, Pin 7 for Amp 2): Connect to the next stage in the audio circuit, e.g., to an equalizer or an output stage.

- Ground (Pin 4): Connect to the system ground, which is common for both the signal and power supply.

5. Design Considerations:

- Power Supply Stability: Ensure a clean and stable power supply, particularly important in audio applications to reduce noise.

- Bypass Capacitors: Place capacitors close to the power supply pins to filter out noise.

- Feedback Network: Choose appropriate resistor values for the feedback network to set the desired gain while maintaining stability.

- Signal Integrity: Minimize the length of signal paths and avoid running signal lines near sources of noise or high power.

In conclusion, the TJM4558CDT op-amp is a highly effective component for a wide range of applications, especially in audio signal processing where its characteristics like low noise and high bandwidth are beneficial. In designing circuits with this op-amp, attention should be given to power supply quality, component placement, and signal path layout to achieve optimal performance. The TJM4558CDT, with its dual-amplifier configuration and reliable performance, remains a popular choice for both hobbyist and professional audio applications.
