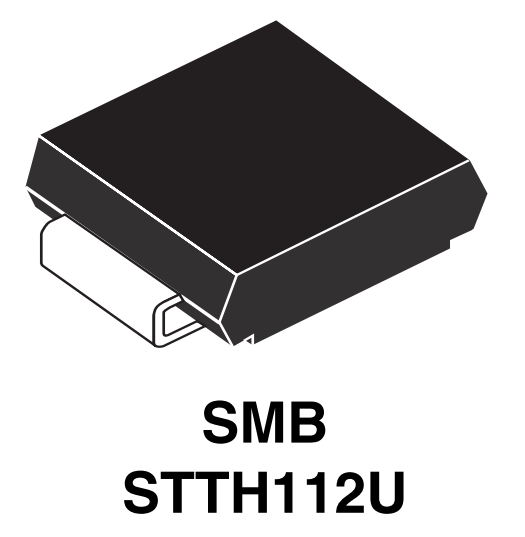

STMicroelectronics STTH112U

Part No.:: STTH112U

Manufacturer:: STMicroelectronics

Package:: DO-214AA, SMB

Datasheet:: STTH112U.pdf

Description:: DIODE GEN PURP 1.2KV 1A SMB

In Stock:: 3943

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STTH112U Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Standard
Part Status:
Active
Mounting Type:
Surface Mount
Capacitance @ Vr, F:
-
Reverse Recovery Time (trr):
75 ns
Current - Reverse Leakage @ Vr:
5 µA @ 1200 V
Voltage - DC Reverse (Vr) (Max):
1200 V
Current - Average Rectified (Io):
1A
Operating Temperature - Junction:
175°C (Max)
Voltage - Forward (Vf) (Max) @ If:
1.9 V @ 1 A
