Name: STPS1H100A
Brand: STMicroelectronics
SKU: STPS1H100A
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

STMicroelectronics STPS1H100A

Part No.:: STPS1H100A

Manufacturer:: STMicroelectronics

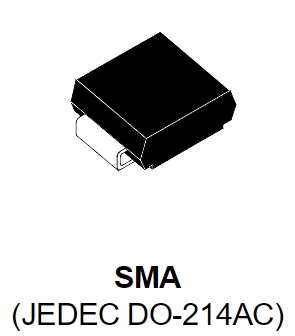

Package:: DO-214AC, SMA

Datasheet:: STPS1H100A.pdf

Description:: DIODE SCHOTTKY 100V 1A SMA

In Stock:: 10893

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STPS1H100A Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Schottky
Part Status:
Active
Mounting Type:
Surface Mount
Capacitance @ Vr, F:
-
Reverse Recovery Time (trr):
-
Current - Reverse Leakage @ Vr:
4 µA @ 100 V
Voltage - DC Reverse (Vr) (Max):
100 V
Current - Average Rectified (Io):
1A
Operating Temperature - Junction:
175°C (Max)
Voltage - Forward (Vf) (Max) @ If:
770 mV @ 1 A

STPS1H100A this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STPS1H100A price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STPS1H100A to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STPS1H100A information

Views：

STPS1H100A Typical application Circuitry

STPS1H100A

The STPS1H100A is a high voltage power Schottky rectifier, designed by STMicroelectronics. This type of rectifier is often used in power supply circuits for its ability to efficiently convert alternating current (AC) to direct current (DC), thanks to its low forward voltage drop and fast switching capabilities.

Application Scenarios of STPS1H100A:

1. Switched-Mode Power Supplies (SMPS): Commonly used for rectification in the power factor correction stages.

2. DC Power Systems: Employed in circuits that require efficient and fast rectification from AC to DC, such as battery chargers and DC power systems.

3. Solar Power Systems: Photovoltaic inverters may use the electrical power produced by these systems, which convert solar energy into power. Key Features:

1. High Reverse Voltage Capability: Able to withstand high reverse voltages, this product is appropriate for high voltage applications.

2. Low Forward Voltage Drop: Reduces losses during forward conduction to provide high power conversion efficiency.

3. Fast Switching Speed: Offers rapid transition from conducting to non-conducting state, enhancing the overall efficiency of the power conversion process.

Example Circuit Design - Rectification in a Switched-Mode Power Supply Using STPS1H100A:

Detailed Circuit Connection Guide:

1. AC Input Rectification:

- Power Conversion (Anode and Cathode Pins): Connect the anode of STPS1H100A to the AC input and the cathode to the next stage in the SMPS, typically a filter or smoothing capacitor. In this configuration, STPS1H100A rectifies the AC input into a pulsating DC.

2. Smoothing Voltage (After Rectification):

- Filtering Stage: To smooth the pulsating DC into a more steady DC voltage, place a capacitor across the DC output. The intended ripple and the properties of the load should be taken into consideration while selecting the capacitor's value.

3. Control of Heat:

- Diode Structure Thermal Adjustment: Install a heat sink on the STPS1H100A's body if significant heat dissipation is predicted. Appropriate thermal management is crucial to prevent overheating and provide consistent operation.

Circuit Design Considerations:

1. Reverse Voltage Protection: Ensure that the reverse voltage rating of STPS1H100A exceeds the maximum voltage expected in the circuit to prevent breakdown.

2. Forward Current Capability: Check that the diode can handle the expected forward current without exceeding its maximum rating.

3. Thermal Management: Consider power dissipation and ensure adequate heat sinking to maintain a safe operating temperature.

4. Load Characteristics: Understand the load requirements, especially the current and voltage specifications, to ensure compatibility with the STPS1H100A.

In conclusion, the STPS1H100A power Schottky rectifier is a vital component in circuits requiring efficient power rectification, such as switched-mode power supplies and solar power systems. When designing circuits with STPS1H100A, it's essential to focus on reverse voltage protection, forward current capability, thermal management, and load characteristics to ensure optimal performance and reliability. Proper application of STPS1H100A can significantly enhance the efficiency and durability of power electronics systems.
