Name: MUR420RLG
Brand: ON Semiconductor
SKU: MUR420RLG
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

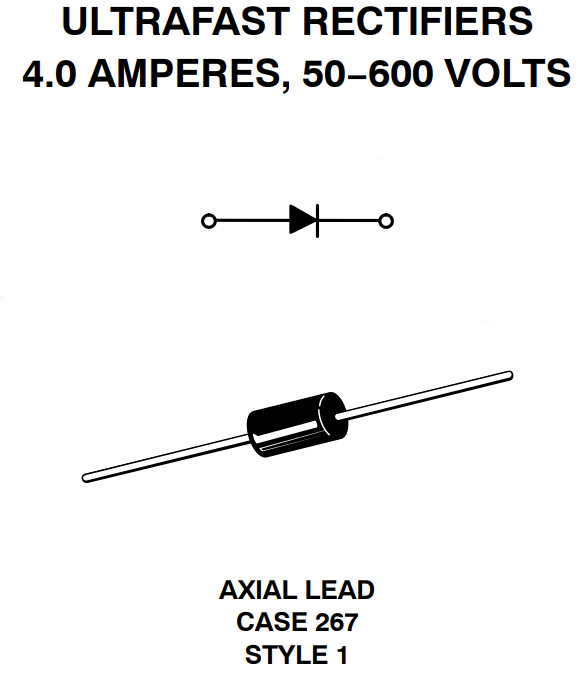

ON Semiconductor MUR420RLG

Part No.:: MUR420RLG

Manufacturer:: ON Semiconductor

Package:: DO-201AA, DO-27, Axial

Datasheet:: MUR420RLG.pdf

Description:: DIODE GEN PURP 200V 4A DO201AD

In Stock:: 6552

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

MUR420RLG Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT)
Series:
SWITCHMODE™
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Standard
Part Status:
Active
Mounting Type:
Through Hole
Capacitance @ Vr, F:
-
Reverse Recovery Time (trr):
35 ns
Current - Reverse Leakage @ Vr:
5 µA @ 200 V
Voltage - DC Reverse (Vr) (Max):
200 V
Current - Average Rectified (Io):
4A
Operating Temperature - Junction:
-65°C ~ 175°C
Voltage - Forward (Vf) (Max) @ If:
890 mV @ 4 A
