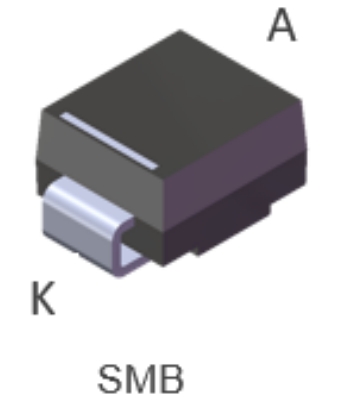

STMicroelectronics STPS3L60U

Part No.:: STPS3L60U

Manufacturer:: STMicroelectronics

Package:: DO-214AA, SMB

Datasheet:: STPS3L60U.pdf

Description:: DIODE SCHOTTKY 60V 3A SMB

In Stock:: 3356

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STPS3L60U Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Schottky
Part Status:
Active
Mounting Type:
Surface Mount
Capacitance @ Vr, F:
-
Reverse Recovery Time (trr):
-
Current - Reverse Leakage @ Vr:
150 µA @ 60 V
Voltage - DC Reverse (Vr) (Max):
60 V
Current - Average Rectified (Io):
3A
Operating Temperature - Junction:
150°C (Max)
Voltage - Forward (Vf) (Max) @ If:
620 mV @ 3 A

STPS3L60U this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STPS3L60U price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STPS3L60U to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STPS3L60U information

Views：

STPS3L60U Typical application Circuitry

STPS3L60U

The STPS3L60U is a Schottky barrier diode, designed for use in applications where efficient power rectification and fast switching are essential. This type of diode is characterized by its low forward voltage drop and rapid response capabilities, making it suitable for a variety of electronic circuits.

Application Scenarios

1. Switched-Mode Power Supplies (SMPS): Used in the rectification stage for efficient voltage conversion.

2. Voltage Clamping: Employed in circuits to protect sensitive components from voltage spikes.

3. Reverse Polarity Protection: Integrated into systems to prevent damage from incorrect power connections.

Parameter Features

- Maximum Reverse Voltage (V_R): Capable of handling reverse voltages up to 60V, suitable for numerous applications.

- Forward Current (I_F): Can efficiently conduct forward currents, fitting for medium-power demands.

- Thermal Efficiency: Performs reliably across a wide range of temperatures.

Circuit Design Example: SMPS Rectification

Objective: Incorporate the STPS3L60U in the rectification stage of an SMPS for an electronic device.

Circuit Description and Components:

1. AC Input Connection:

- Connect the AC input to the Anode (Pin 1) of the STPS3L60U.

- Ensure robust insulation and secure connections to handle alternating current safely.

2. Rectified DC Output:

- Link the Cathode (Pin 2) to the input of the DC filtering stage in the SMPS.

- Optimize this connection for efficient transfer of rectified current, minimizing losses.

3. Snubber Circuit:

- Consider adding a snubber circuit across the diode to protect against voltage spikes and improve reliability.

- This circuit typically includes a resistor-capacitor (RC) network.

4. Thermal Management:

- Implement a heat sink if the diode is expected to operate under high current conditions.

Design Considerations of the STPS3L60U:

- Voltage Rating: The AC input voltage should not exceed the diode's maximum reverse voltage rating.

- Current Handling: Align the expected power load with the diode's forward current capacity.

- PCB Layout: Design the PCB to reduce parasitic inductance, enhancing diode efficiency.

- Cooling Requirements: Assess if additional cooling is necessary, particularly at high power levels.

In conclusion, the STPS3L60U Schottky barrier diode is a crucial component in applications like SMPS for efficient power rectification. Designing circuits with this diode requires attention to voltage and current specifications, PCB layout optimization, thermal management, and protective measures against voltage spikes to ensure effective and reliable operation in electronic systems.
