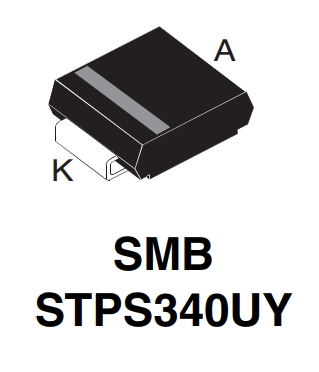

STMicroelectronics STPS340UY

Part No.:: STPS340UY

Manufacturer:: STMicroelectronics

Package:: DO-214AA, SMB

Datasheet:: STPS340UY.pdf

Description:: DIODE SCHOTTKY 40V 3A SMB

In Stock:: 3484

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STPS340UY Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
Automotive, AEC-Q101
RoHS:
RoHS
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
Diode Type:
Schottky
Part Status:
Active
Mounting Type:
Surface Mount
Capacitance @ Vr, F:
-
Reverse Recovery Time (trr):
-
Current - Reverse Leakage @ Vr:
20 µA @ 40 V
Voltage - DC Reverse (Vr) (Max):
40 V
Current - Average Rectified (Io):
3A
Operating Temperature - Junction:
-40°C ~ 150°C
Voltage - Forward (Vf) (Max) @ If:
630 mV @ 3 A
