STMicroelectronics STM809SWX6F

Part No.:: STM809SWX6F

Manufacturer:: STMicroelectronics

Package:: TO-236-3, SC-59, SOT-23-3

Datasheet:: STM809SWX6F.pdf

Description:: IC SUPERVISOR 1 CHANNEL SOT23-3

In Stock:: 3012

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM809SWX6F Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Simple Reset/Power-On Reset
NumberofVoltagesMonitored:
1
Voltage-Threshold:
2.93V
Output:
Push-Pull, Totem Pole
Reset:
Active Low
ResetTimeout:
140ms Minimum
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

STM809SWX6F this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM809SWX6F price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM809SWX6F to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

STM809SWX6F information

Views：

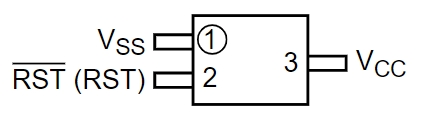

STM809SWX6F Typical application Circuitry

STM809SWX6F

The STM809SWX6F is a microprocessor reset circuit chip, designed primarily for monitoring power supply and system health in digital systems. This chip is part of STMicroelectronics' portfolio of reset circuits and is widely used in applications where reliable system behavior is critical, especially during power-up, power-down, or brown-out conditions.

Application Scenarios

A typical application of the STM809SWX6F is in embedded systems, such as microcontroller-based consumer electronics, where it ensures proper system reset during power fluctuations.

Parameter Features

- Precision monitoring of 3.08V power supply (V_th)

- Low power consumption

- Active-low, push-pull RESET output

- Reset pulse duration of 140 ms minimum

- Operating temperature range from -40°C to +85°C

Circuit Connection Example-Embedded System Reset Circuit

1. Power Supply Monitoring: Connect the VCC pin of STM809SWX6F to the power supply line (3.3V, for instance) that you want to monitor.

2. Reset Output: The RESET pin is the active-low output. Attach this pin to the microcontroller or system you are watching's reset input.

3. Ground Connection: Connect the GND pin to the system ground.

4. Bypass Capacitor: Place a small (e.g., 0.1 µF) ceramic capacitor close to the STM809SWX6F between VCC and GND to filter out voltage spikes and noise.

Design Considerations

1. Voltage Threshold Accuracy: Ensure the power supply voltage is within the threshold range of the STM809SWX6F for accurate monitoring.

2. Reset Signal Compatibility: The reset signal from STM809SWX6F must be compatible with the microcontroller or system it's connected to.

3. Power Supply Noise: Minimize noise on the power supply line to prevent false triggering of the reset circuit.

4. Placement and Routing: Place the STM809SWX6F close to the power entry point of the board and ensure minimal trace length to the monitored system for quick and reliable response.

In conclusion, the STM809SWX6F is an essential component for ensuring reliable system operation in digital systems, especially those susceptible to power supply irregularities.When designing a circuit utilizing this chip, factors including noise reduction, signal compatibility, voltage thresholds, and positioning must all be carefully considered.
