STMicroelectronics STM32WB55CGU6

Part No.:: STM32WB55CGU6

Manufacturer:: STMicroelectronics

Package:: 48-UFQFN Exposed Pad

Datasheet:: STM32WB55CGU6.pdf

Description:: ULTRA-LOW-POWER DUAL CORE ARM CO

In Stock:: 3090

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

STM32WB55CGU6 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including STM32WB55CGU6 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for STM32WB55CGU6 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

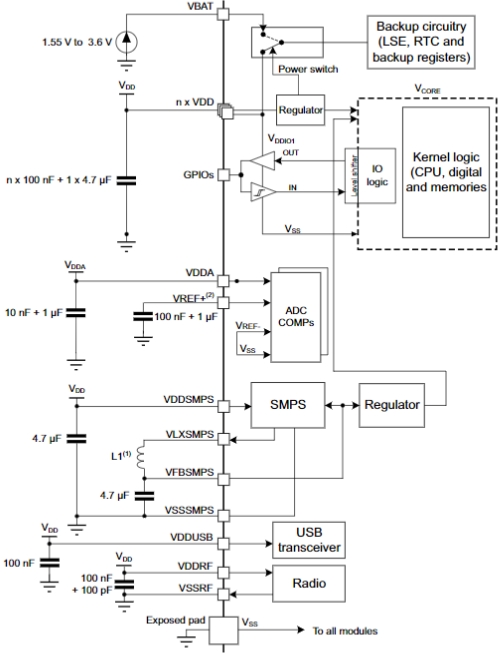

STM32WB55CGU6 Typical application Circuitry Schematics

The STM32WB55CGU6 is part of the STM32WB series, a dual-core, multi-protocol, ultra-low-power 2.4 GHz wireless microcontroller family from STMicroelectronics. When designing circuits around this MCU, it's crucial to consult its specific datasheet and reference manual. Below are some foundational guidelines to get you started:

1. Power Supply: - VDD/VSS: Connect VDD pins to the suitable power source (typically 3.3V but always verify with the datasheet) and VSS pins to the ground. Decoupling capacitors close to these pins can help in noise reduction.

2. Clock System: - Oscillator: For external oscillators, utilize OSC32_IN and OSC32_OUT pins for the Low-Speed External (LSE) oscillator and OSC_IN and OSC_OUT for the High-Speed External (HSE) oscillator. - Capacitors: Attach capacitors between the oscillator pins and ground, considering the oscillator manufacturer's recommendations.

3. Reset Circuit: - NRST Pin: For manual reset, connect a push-button to the NRST pin. Usually, a pull-up resistor and a debouncing capacitor are suggested.

4. Debugging and Programming: - SWD (Serial Wire Debug): Connect SWDIO and SWCLK pins to your debugger/programmer. Sometimes, pull-up resistors on these lines are beneficial.

5. I/O Pins: - GPIO: When connecting GPIO pins, take note of voltage levels and adhere to their current constraints. - Unused Pins: To prevent erratic behavior, assign a defined state to unused pins, either internally or by externally adding pull-up or pull-down resistors.

6. Communication: - USART/UART: Connect TX and RX lines and check voltage compatibility. - SPI: For SPI devices, connect MOSI, MISO, and SCK pins, and handle the CS (Chip Select) pin as required. - I2C: Attach SDA and SCL pins to I2C devices. I2C lines usually need pull-up resistors.

7. Analog: - ADC: Connect analog signals to ADC pins while being cautious about permissible voltage ranges. - VREF+: If an external voltage reference is necessary, connect it to this pin.

8. Wireless Connectivity: - RF Circuit: The RF pins would be used to connect to an antenna for Bluetooth or other 2.4 GHz wireless protocols. Proper RF layout practices should be followed.

9. External Interrupts: - For external interrupts, connect sources to appropriate GPIO pins. Be vigilant about voltage compatibility.

10. Indicators: - LEDs are great for debugging or indicating MCU status. When connecting LEDs to GPIO pins, always use current-limiting resistors.

Additional Recommendations: - Decoupling Capacitors: Crucial for noise management. - Protection: Consider ESD protection and other protective measures. - Thermal Management: If the MCU is used intensively, ensure heat can dissipate effectively. Software Tools: - STM32WB55CGU6: Useful for MCU configuration and initiating code. - HAL Libraries: These make peripheral interactions easier. To design a robust and efficient circuit with the STM32WB55CGU6, always refer to its datasheet and reference manual. These documents offer a comprehensive overview of its connections, features, and guidelines.
