Texas Instruments SN74HC573ANG4

Part No.:: SN74HC573ANG4

Manufacturer:: Texas Instruments

Package:: 20-DIP (0.300, 7.62mm)

Datasheet:: SN74HC573ANG4.pdf

Description:: IC LATCH OCT TRANSP D 3ST 20-DIP

In Stock:: 2303

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC573ANG4 Specifications

Packaging:
Tube
Series:
74HC
ProductStatus:
Discontinued at Mosen
LogicType:
D-Type Transparent Latch
Circuit:
8:8
OutputType:
Tri-State
Voltage-Supply:
2V ~ 6V
IndependentCircuits:
1
DelayTime-Propagation:
23ns
Current-OutputHighLow:
7.8mA, 7.8mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Through Hole

SN74HC573ANG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC573ANG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC573ANG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC573ANG4 information

Views：

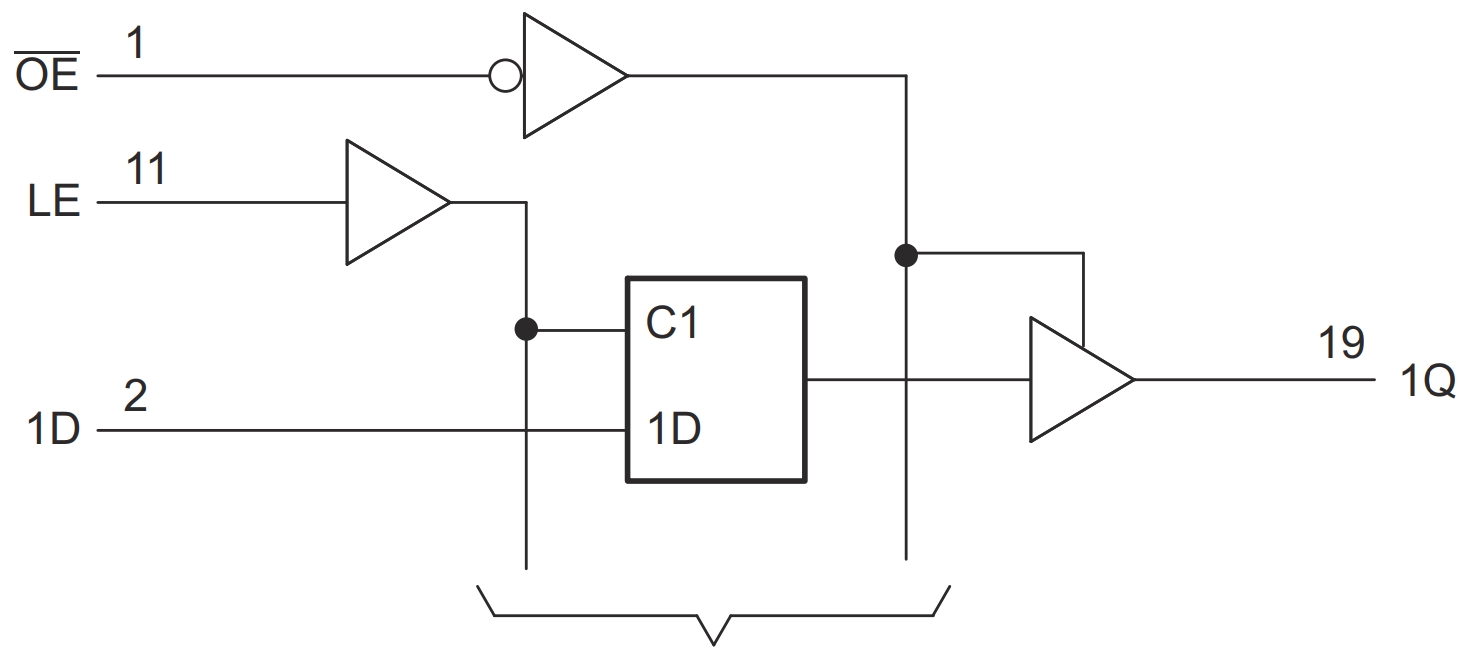

SN74HC573ANG4 Typical application Circuitry

SN74HC573ANG4

The SN74HC573ANG4 is an integrated circuit commonly used in digital electronics. Let's explore its functionality, applications, parameters, and a detailed usage scenario, focusing on specific pin connections and considerations for circuit design. The article will be structured to include the keyword "SN74HC573ANG4" multiple times and will be presented in English with varied sentence structures compared to the previous article.

The capabilities of SN74HC573ANG4:

A particular kind of latch, an octal D-type transparent latch with 3-state outputs, is the SN74HC573ANG4. This IC belongs to the 74HC family, known for its high-speed CMOS technology. The primary function of the SN74HC573ANG4 is to store data bits (8 bits, in this case) when the latch enable (LE) input is high, and retain the stored data when LE is low.

Applications of SN74HC573ANG4:

The SN74HC573ANG4 is versatile and finds applications in various fields such as:

- Data storage and buffering

- Interface for peripheral devices

- Microprocessor systems

- Digital signal processing

Parameter Features of SN74HC573ANG4:

The SN74HC573ANG4's important features are as follows:

- Eight D-type latches with three-state outputs

- Broad range of working voltage (2 V to 6 V)

- Three-state outputs with high current can drive up to fifteen LSTTL loads.

- Low power consumption

Application Scenario and Circuit Connection:

Scenario: Using SN74HC573ANG4 in a Microprocessor Interface:

Detailed Connection:

1. Power Supply: Connect pin 20 (Vcc) to a +5V supply, and pin 10 (GND) to ground.

2. Latch Enable (LE): Pin 11 controls the latching action. Connect it to a control signal (high to store data, low to retain data).

3. Data Inputs (D0 to D7): Pins 2, 3, 4, 5, 6, 7, 8, and 9 are data inputs. Connect these to the microprocessor's data output lines.

4. Output Enable (OE): Pin 1, when low, enables the outputs. Connect it to another control signal from the microprocessor.

5. Outputs (Q0 to Q7): Pins 18, 17, 16, 15, 14, 13, 12, and 19 are outputs. Connect these to the next stage of the circuit, like a display or another IC.

Considerations for Circuit Design:

When utilizing the SN74HC573ANG4 in circuit design, take into account the following:

- Power Supply Stability: Make sure the power supply is steady, as variations may affect how well an integrated circuit performs.

- Input Signals: Ensure that the LE and OE control signals are timed correctly to prevent data corruption.

- Decoupling Capacitors: To reduce voltage spikes, place decoupling capacitors next to the power supply pins.

In summary, the SN74HC573ANG4 is a powerful component for data latching applications, providing stable, high-speed operation in a variety of digital systems. Its proper integration into a circuit, considering the specific requirements of power, timing, and connectivity, enables efficient and reliable performance.
