NXP USA Inc. 74HC573DB-Q100118

Part No.:: 74HC573DB-Q100118

Manufacturer:: NXP USA Inc.

Package:: 20-SSOP (0.209, 5.30mm Width)

Datasheet:: 74HC573DB-Q100118.pdf

Description:: BUS DRIVER, HC/UH SERIES, 8-BIT

In Stock:: 2448

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

74HC573DB-Q100118 Specifications

Packaging:
Bulk
Series:
Automotive, AEC-Q100, 74HC
ProductStatus:
Obsolete
LogicType:
D-Type Transparent Latch
Circuit:
1:8
OutputType:
Tri-State
Voltage-Supply:
2V ~ 6V
IndependentCircuits:
1
DelayTime-Propagation:
14ns
Current-OutputHighLow:
7.8mA, 7.8mA
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

74HC573DB-Q100118 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including 74HC573DB-Q100118 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for 74HC573DB-Q100118 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

74HC573DB-Q100118 information

Views：

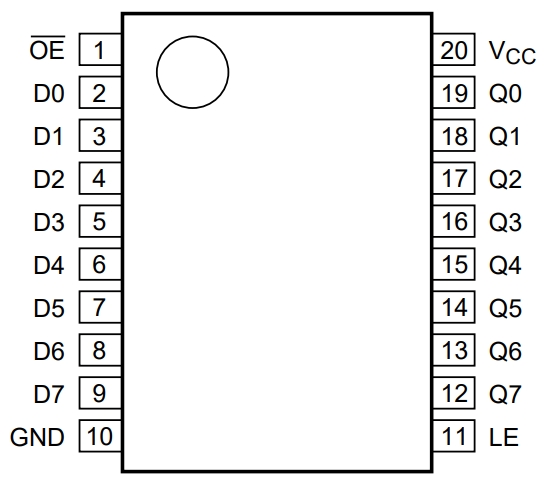

74HC573DB-Q100118 Typical application Circuitry

74HC573DB-Q100118

The 74HC573DB-Q100118 is an octal D-type transparent latch with tri-state outputs, belonging to the high-speed CMOS family. When the latch-enable (LE) input is high, this device reads the data from its D inputs and holds it at the Q outputs. When LE is low, changes at the D inputs have little effect on the Q outputs, which remain constant. The output enable (OE) input can set the outputs to a high-impedance state, ideal for bus-oriented applications.

Applications for the 74HC573DB-Q100118 include data buffering, storage, and interfacing in digital systems.

Key Parameters:

- Supply Voltage Range: 2.0 to 6.0 V

- Maximum Clock Frequency: 100 MHz

- Output Current: ±7.8 mA

- Logic 1 requires a high-level input voltage of at least 2.0 V.

- Low-Level Input Voltage: 0.8 V maximum for logic 0

Let's consider an application scenario where the 74HC573DB-Q100118 is used to interface a microcontroller with a set of LED displays.

1. Connect the LEDs:

- The anodes of the LEDs should be connected to Vcc through current-limiting resistors.

- The cathodes of the LEDs should be connected to Q0 to Q7 pins on the 74HC573DB-Q100118.

2. Connect the Microcontroller:

- Output pins from the microcontroller should be connected to the D0 to D7 inputs on the 74HC573DB-Q100118.

3. Latch Enable (LE) and Output Enable (OE):

- A control pin from the microcontroller should be connected to the LE input on the 74HC573DB-Q100118.

- The OE input should be connected to ground to enable the outputs.

4. Power Supply and Ground:

- The Vcc and GND pins on the 74HC573DB-Q100118 should be connected to the corresponding pins on the microcontroller.

Design Considerations:

1. Power Ratings:

- Ensure that the current-limiting resistors are rated correctly to protect the LEDs.

2. Microcontroller Compatibility:

- Verify that the microcontroller's output pins are compatible with the input pins of the 74HC573DB-Q100118.

3. Timing:

- Ensure the LE signal is synchronized with the microcontroller's output update to prevent data corruption.

In conclusion, the 74HC573DB-Q100118 is a multifunctional device suitable for a variety of applications requiring data storage, buffering, and interfacing. By understanding the device's parameters and adhering to the design considerations, you can efficiently integrate this chip into your digital systems.
