What is the Additional Feature ?

Name: SN74HC573ADWR
Brand: Texas Instruments
SKU: SN74HC573ADWR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74HC573ADWR

Part No.:: SN74HC573ADWR

Manufacturer:: Texas Instruments

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: SN74HC573ADWR.pdf

Description:: IC OCT D-TYPE LATCH 20-SOIC

In Stock:: 3190

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74HC573ADWR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74HC
ProductStatus:
Active
LogicType:
D-Type Transparent Latch
Circuit:
8:8
OutputType:
Tri-State
Voltage-Supply:
2V ~ 6V
IndependentCircuits:
1
DelayTime-Propagation:
23ns
Current-OutputHighLow:
7.8mA, 7.8mA
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74HC573ADWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74HC573ADWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74HC573ADWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74HC573ADWR information

Views：

SN74HC573ADWR Typical application Circuitry

SN74HC573ADWR

The SN74HC573ADWR is an integrated circuit that serves as an octal D-type transparent latch with 3-state outputs. This type of chip is commonly used in various digital applications, particularly where there is a need to control data flow between different bus systems or between different components within a system.

Key Features of the SN74HC573ADWR:

- Latch Type: Octal D-type transparent latch.

- Logic Family: HC.

- Output Type: 3-state outputs.

- Pin Count: 20.

- Voltage Range: The standard operating voltage is between 2 and 6 volts.

- Data Retention Capability: Ensures data is held stable even during power transitions.

Application Scenario and Circuit Connection:

Consider a scenario where the SN74HC573ADWR is used to interface a microcontroller with a set of LEDs for display purposes. The microcontroller has limited output pins, and the SN74HC573ADWR is employed to expand the output capabilities.

Detailed Circuit Connection:

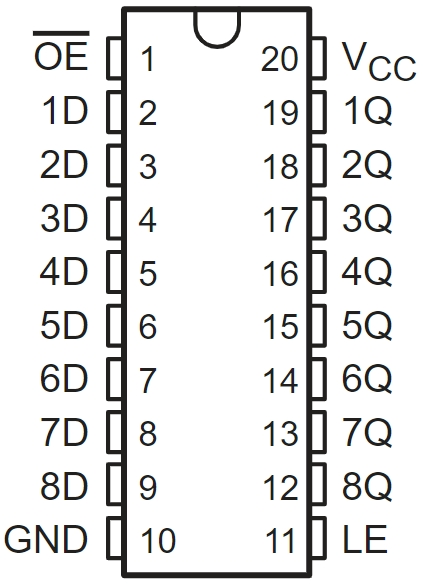

1. Power Connections: Attach pin 20 (VCC) to a 5V source and pin 10 (GND) to ground.

2. Input Data Lines: Connect the microcontroller outputs to the data inputs D0 to D7 (pins 2, 3, 4, 5, 6, 7, 8, 9).

3. Output to LEDs: Connect the outputs Q0 to Q7 (pins 18, 17, 16, 15, 14, 13, 12, 11) to LEDs through current-limiting resistors.

4. Latch Enable (LE - pin 1): Connect to a control output of the microcontroller. When LE is high, the data present at the inputs D0-D7 is latched.

5. Output Enable (OE - pin 19): Connect to another control output of the microcontroller. OE is used to control the state of the outputs. When OE is low, the outputs are active; when high, they are in a high-impedance state.

Design Considerations:

- Power Supply Stability: Ensure a stable 5V supply to avoid data corruption.

- Input Data Timing: Align the microcontroller output data timing with the LE signal to ensure correct latching.

- Output Load: Consider the current driving capability of the outputs if driving LEDs or other loads.

- Decoupling Capacitors: To reduce noise, place decoupling capacitors next to the pins of the power supply.

- Signal Integrity: Keep trace lengths short and well-routed to avoid crosstalk and signal degradation.

By incorporating the SN74HC573ADWR in this manner, you can efficiently expand the output capabilities of a microcontroller system, ensuring effective data transfer and control over external components like LEDs. This approach demonstrates the versatility and utility of the SN74HC573ADWR in digital systems.

SN74HC573ADWR FAQ

1. How to order SN74HC573ADWR on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that SN74HC573ADWR is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the SN74HC573ADWR. All suppliers must pass our qualification reviews before they can publish their products including SN74HC573ADWR on icwhale.com; we pay more attention to the channels and quality of SN74HC573ADWR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the SN74HC573ADWR price and inventory displayed accurate?

The price and inventory of SN74HC573ADWR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of SN74HC573ADWR?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the SN74HC573ADWR we delivered, we will accept the replacement or return of the SN74HC573ADWR only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of SN74HC573ADWR.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
