NXP USA Inc. SA5212AD/01,112

Part No.:: SA5212AD/01,112

Manufacturer:: NXP USA Inc.

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: SA5212AD/01,112.pdf

Description:: IC TRANSIMPEDANCE 1 CIRCUIT 8SO

In Stock:: 3309

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SA5212AD/01,112 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Obsolete
AmplifierType:
Transimpedance
NumberofCircuits:
1
OutputType:
Differential
SlewRate:
-
GainBandwidthProduct:
-
-3dbBandwidth:
140 MHz
Current-InputBias:
-
Voltage-InputOffset:
-
Current-Supply:
26mA
Current-Output/Channel:
4 mA
Voltage-SupplySpan(Min):
4.5 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SA5212AD/01,112 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SA5212AD/01,112 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SA5212AD/01,112 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SA5212AD/01,112 information

Views：

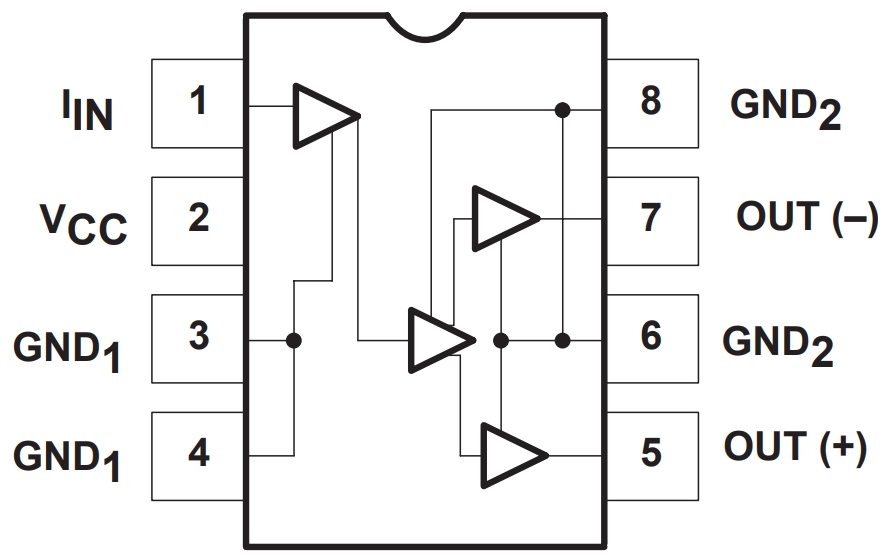

SA5212AD/01,112 Typical application Circuitry

SA5212AD 01,112

The SA5212AD/01,112 is a specialized integrated circuit with specific features and a range of applications. Here's a detailed analysis:

Chip Features:SA5212AD/01,112

- Transimpedance Amplifier: The SA5212A's primary use is as a wideband, low noise differential,14kΩ transimpedance output amplifier.

- Low Noise: It has an extremely low noise level of 2.5pA/√Hz.

- Power Supply: Operates on a single 5V supply.

- Bandwidth: Boasts a large bandwidth of 140MHz.

- Output: Designed with differential outputs.

- Impedances: It has low input/output impedances.

- Differential Transresistance: Features 14kΩ differential transresistance.

- ESD Hardened: Offers electrostatic discharge protection.

Applications:

- Fiber-Optic Receivers: Both analog and digital fiber-optic receivers use this chip for signal recovery.

- Current-to-Voltage Converters: Common in various electrical systems.

- Wideband Gain Block: For applications requiring wide frequency range amplification.

- Medical and Scientific Instrumentation: Due to its precision and low noise.

- Sensor Preamplifiers: Enhances sensor signals in different applications.

- Single-Ended to Differential Conversion: Useful in signal processing.

- Low Noise RF Amplifiers and RF Signal Processing: Utilized in radio frequency systems.

Circuit Design Considerations:

When designing a circuit with the SA5212AD/01,112, specific considerations should be taken into account:

1. Power Supply Stability: Verify that there is no noise and that the 5V supply is steady.

2. Signal Integrity: Preserving signal integrity is essential because of its low noise characteristic.

3. Impedance Matching: Proper impedance matching with the source and load is necessary for optimal performance.

4. ESD Precautions: Although the chip is ESD hardened, additional ESD protection in the circuit design may be beneficial.

5. Thermal Management: Depending on the application, ensuring adequate heat dissipation could be vital.

Specific Circuit Example: Fiber Optic Receiver

- Input Connection: Connect the high-impedance signal source to the input pins of the SA5212AD/01,112.

- Power Supply: Attach a stable 5V power supply to the designated power supply pin.

- Output Configuration: Utilize the differential outputs for signal processing or conversion.

- ESD Protection: Add external ESD protection components if necessary.

- Heat Dissipation: Incorporate heat sinks or other thermal management solutions if the application involves high power levels or prolonged operation.

Conclusion:

The SA5212AD/01,112 chip's low noise, wide bandwidth, and differential output features make it ideal for applications like fiber-optic receivers and RF signal processing. Designing a circuit with this chip requires careful consideration of power supply stability, signal integrity, and impedance matching.
