Texas Instruments PCM3168APAP

Part No.:: PCM3168APAP

Manufacturer:: Texas Instruments

Package:: 64-PowerTQFP

Datasheet:: PCM3168APAP.pdf

Description:: IC CODEC AUDIO 24 BIT 64HTQFP

In Stock:: 565

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PCM3168APAP this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PCM3168APAP price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PCM3168APAP to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

Views：

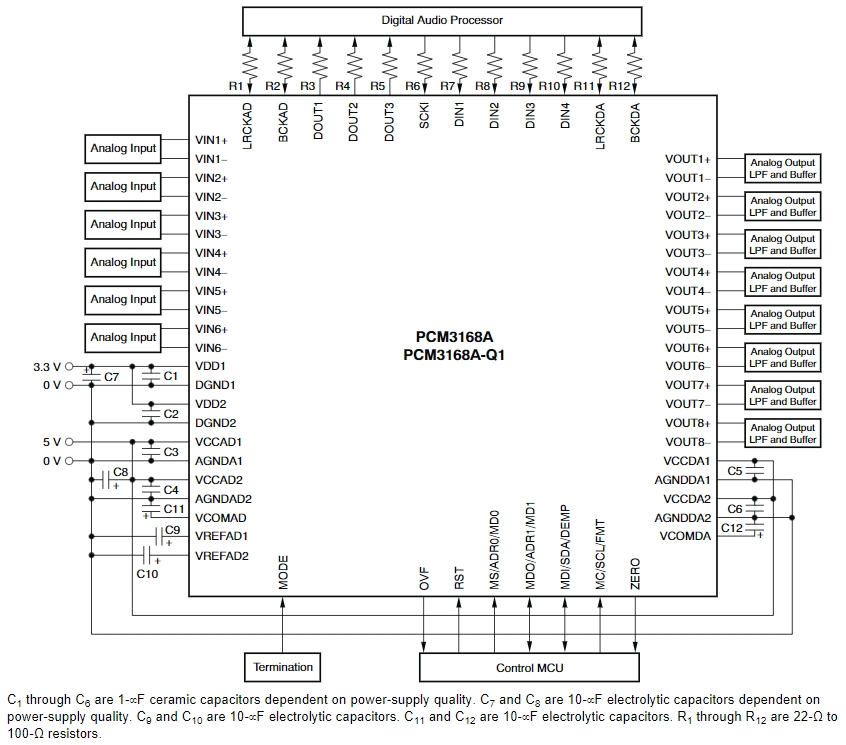

PCM3168APAP Typical application Circuitry

PCM3168APAP

The PCM3168APAP is a high-performance, highly integrated audio codec featuring both analog-to-digital (ADC) and digital-to-analog (DAC) converters designed for premium audio applications. This chip supports up to 24-bit resolution and sampling rates up to 192 kHz, offering six ADC and eight DAC channels, making it an excellent choice for multi-channel audio systems like home theater systems, digital mixing consoles, and multi-track recording systems.

Application Scenario: Multi-Channel Audio Recording Interface

Integrating the PCM3168APAP into a multi-channel audio recording interface illustrates its capability to handle simultaneous recording and playback of multiple audio channels with high fidelity.

Analog Inputs Connection

- Microphone and Instrument Inputs: Connect microphones and instruments to the ADC analog inputs (AIN1 to AIN6) through appropriate preamplifiers to match the input levels. Capacitive coupling may be used to eliminate DC offsets, ensuring clean signal acquisition. To reduce noise and interference in the signal stream, grounding and shielding procedures are crucial.

Digital Audio Interface Configuration

- Setting Up the Serial Audio Data Interface: Configure the serial audio interface pins (BCK, LRCK, DIN, DOUT) for communication with the digital audio processor or USB audio interface IC. This involves selecting the appropriate mode (I2S, left-justified, right-justified) and configuring the PCM3168APAP for either master or slave operation, depending on the system design requirements.

Analog Outputs Connection

- Connecting to Monitoring and Playback Devices: Route the DAC outputs (DOUT1 to DOUT8) to the analog input stages of amplifiers or active speakers, using capacitive coupling where necessary to remove DC bias. Implementing low-pass filters can help to suppress out-of-band noise and improve sound quality.

Power Supply and Grounding

- Ensuring Clean Power and Effective Grounding: The PCM3168APAP requires both analog and digital power supplies, necessitating careful decoupling and filtering to provide clean power. The performance of the system can be enhanced and ground loop noise reduced by using separate ground planes for the analog and digital portions that are connected at a single point.

Control Interface Setup

- Control and Configuration via SPI/I2C: Utilize the SPI or I2C interface for chip configuration, including setting up digital filters, volume control, and operational modes. This allows for dynamic control of the audio processing parameters directly from a microcontroller or digital signal processor.

Design Considerations with PCM3168APAP

When designing with the PCM3168APAP, several key factors should be taken into account:

- Signal Integrity for High-Quality Audio: Maintain short, direct signal paths for both analog and digital signals, and use differential signaling where possible to enhance noise immunity.

- Thermal Management: Although the PCM3168APAP is not known for high thermal output, ensuring adequate thermal management can help maintain stable operation and extend the chip's lifespan.

- Flexibility in Digital Audio Formats: Leverage the PCM3168APAP's support for multiple digital audio formats to ensure compatibility with various digital audio sources and destinations.

- Component Selection for the Analog Path: Choose high-quality passive components for the analog signal path to preserve audio quality, especially for capacitors in signal coupling and filtering applications.

- PCB Layout: Implement a thoughtful PCB layout that separates analog and digital domains, uses proper decoupling techniques, and minimizes interference between channels.

Integrating the PCM3168APAP into a multi-channel audio recording interface enables the creation of a versatile, high-quality audio capture and playback system. This system can accommodate a wide range of professional and consumer audio applications, taking full advantage of the PCM3168APAP's advanced audio processing capabilities and flexible interfacing options.

PCM3168APAP information

PCM3168APAP Specifications

Package/Case:
64-PowerTQFP
Packaging:
Tray
Series:
-
ProductStatus:
Active
Type:
Audio
DataInterface:
Serial
Resolution(Bits):
24 b
NumberofADCs/DACs:
6 / 8
SigmaDelta:
Yes
S/NRatioADCs/DACs(db)Typ:
107 / 112 (Differential), 104 / 112 (Single-Ended)
DynamicRangeADCs/DACs(db)Typ:
107 / 112 (Differential), 104 / 112 (Single-Ended)
Voltage-SupplyAnalog:
4.5V ~ 5.5V
Voltage-SupplyDigital:
3V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount
