Texas Instruments OPA827AIDRG4

Part No.:: OPA827AIDRG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA827AIDRG4.pdf

Description:: IC OPAMP JFET 1 CIRCUIT 8SOIC

In Stock:: 3704

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA827AIDRG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
J-FET
NumberofCircuits:
1
OutputType:
-
SlewRate:
28V/µs
GainBandwidthProduct:
22 MHz
-3dbBandwidth:
-
Current-InputBias:
15 pA
Voltage-InputOffset:
75 µV
Current-Supply:
4.8mA
Current-Output/Channel:
30 mA
Voltage-SupplySpan(Min):
8 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OPA827AIDRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA827AIDRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA827AIDRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA827AIDRG4 information

Views：

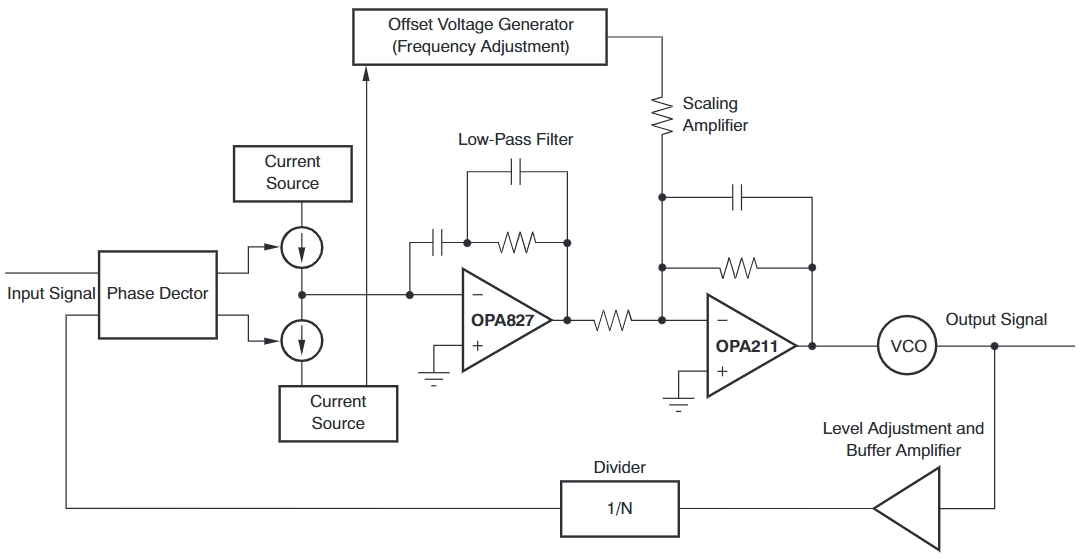

OPA827AIDRG4 Typical application Circuitry

OPA827AIDRG4

The OPA827AIDRG4 is a precision operational amplifier known for its low noise, high speed, and wide bandwidth, making it exceptionally suitable for a variety of applications including but not limited to precision instrumentation, active filtering, and data acquisition systems.

Application Scenario: High-Precision Data Acquisition System

In this scenario, we will detail the integration of the OPA827AIDRG4 in a high-precision data acquisition system, emphasizing how to achieve precise signal amplification with minimal distortion.

Input Signal Conditioning:

The input signal is conditioned before being fed into the OPA827AIDRG4. A resistor and capacitor filter network can be used to limit the bandwidth and remove high-frequency noise. This network is connected to the non-inverting input (Pin 3), ensuring that only the desired signal frequencies are amplified.

Gain Configuration:

A feedback resistor network between the inverting input (Pin 2) and the output (Pin 6) of the OPA827AIDRG4 determines the gain of the device. The closed-loop gain is set by another resistor that runs from the inverting input to ground. To maintain the required gain accuracy, these resistors' precision is essential.

Energy Source and Disconnection:

Using two power supplies, the OPA827AIDRG4 maximizes its dynamic range. To reduce noise and ripple from the power supply lines and ensure steady operation, decoupling capacitors must be positioned as close as possible to the power supply pins (V+ at Pin 7 and V- at Pin 4).

Output Stage:

To protect the OPA827AIDRG4's output from potential damage caused by short circuits or excessive loads, a series resistor may be added at the output. This resistor also helps in stabilizing the amplifier with capacitive loads.

Thermal Management:

Given the OPA827AIDRG4 may operate in high-speed or high-gain settings, it's essential to consider thermal management. Proper heat sinking or thermal vias in the PCB design can help dissipate heat away from the chip, maintaining performance across its operating temperature range.

Design Considerations:

When designing with the OPA827AIDRG4, particular attention should be given to layout to minimize noise and interference. Short, direct signal paths and grounding techniques reduce the pickup of extraneous signals. The designer should also consider the OPA827AIDRG4's input bias current and input offset voltage in the circuit's overall error budget to optimize performance.

Utilizing the OPA827AIDRG4 in a data acquisition system allows for high-precision signal amplification, crucial for accurate data capture. The OPA827AIDRG4's low noise and high fidelity make it an excellent choice for applications requiring meticulous signal processing, ensuring that the data collected is both accurate and reliable.
