Texas Instruments OPA602AU/2K5G4

Part No.:: OPA602AU/2K5G4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA602AU/2K5G4.pdf

Description:: IC OPAMP GP 1 CIRCUIT 8SOIC

In Stock:: 2881

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA602AU/2K5G4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR)
Series:
Difet®
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
-
SlewRate:
35V/µs
GainBandwidthProduct:
6.5 MHz
-3dbBandwidth:
-
Current-InputBias:
2 pA
Voltage-InputOffset:
1 mV
Current-Supply:
3mA
Current-Output/Channel:
20 mA
Voltage-SupplySpan(Min):
10 V
Voltage-SupplySpan(Max):
36 V
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

OPA602AU/2K5G4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA602AU/2K5G4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA602AU/2K5G4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA602AU/2K5G4 information

Views：

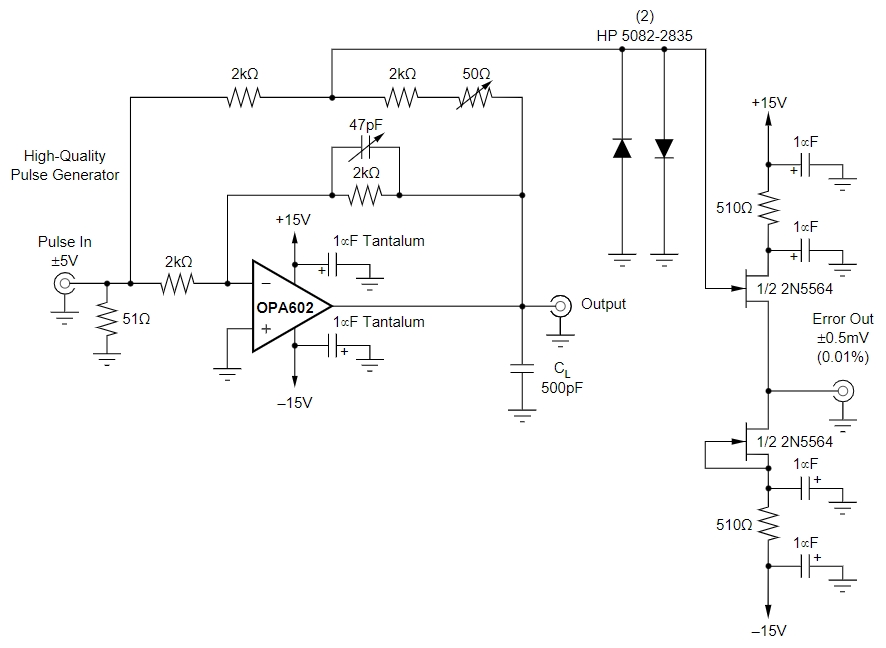

OPA602AU/2K5G4 Typical application Circuitry

OPA602AU 2K5G4

The OPA602AU/2K5G4 is a high-precision operational amplifier (op-amp) designed for applications that require fast settling times, low distortion, and high bandwidth. This op-amp is ideal for use in high-speed data acquisition systems, active filtering, precision instrumentation, and other scenarios where signal integrity is paramount.

Key Features and Specifications

- High-Speed Performance: The OPA602AU/2K5G4 offers a fast slew rate and wide bandwidth, essential for applications requiring quick response times.

- Low Distortion: Its low harmonic distortion makes it appropriate for precision measuring systems and high-fidelity audio applications.

- Broad Supply Voltage Range: This feature increases the device's adaptability to various circuit designs by enabling it to operate across a wide range of supply voltages.

- Precision Signal Processing: Designed for applications that demand high accuracy, ensuring minimal signal degradation.

- Stable with Capacitive Loads: Exhibits stability even with capacitive loads, making it adaptable to a variety of output conditions.

Application Scenario: Precision Data Acquisition System

One practical application of the OPA602AU/2K5G4 is in a precision data acquisition system (DAS), where it can be used to amplify and condition sensor signals before they are digitized.

Circuit Connection Details

- Sensor Signal Input: Attach the sensor's output to Pin 3, the OPA602AU/2K5G4 device's non-inverting input. This connection is critical for high-impedance signal sourcing, ensuring minimal loading on the sensor.

- Feedback Network for Gain Control: To establish the appropriate gain, connect resistors (R1 and R2) in a feedback loop between the inverted input (Pin 2) and the output (Pin 6). The precise control of gain is essential for signal conditioning tailored to the sensor's output range.

- Power Supply Connections: Within the broad supply voltage range of the op-amp, provide a positive voltage to Pin 7 (V+) and a negative voltage to Pin 4 (V-pin). Stable supply voltages are crucial for maintaining the accuracy of the amplified signal.

- Output Filtering: To remove any high-frequency noise, connect a capacitor (C1) in parallel with R1 in the feedback loop. This acts as a low-pass filter, ensuring clean signal processing.

- Decoupling Capacitors for Stability: To reduce noise and guarantee steady functioning of the OPA602AU/2K5G4, use bypass capacitors close to the power supply pins. In applications requiring precision, power stability is critical.

Design Considerations

When integrating the OPA602AU/2K5G4 into a precision DAS, several key factors must be considered:

- Power Supply Quality: A clean and stable power supply is essential, as any noise can directly affect the signal integrity. Implementing robust decoupling and using low-noise power sources are recommended.

- Thermal Management: While the OPA602AU/2K5G4 is designed for efficiency, managing heat in high-performance applications is important to ensure consistent operation.

- Signal Integrity: Careful routing of signal paths and shielding may be necessary to prevent interference in sensitive applications. Minimizing noise pickup is crucial for maintaining signal fidelity.

- Protection Features: Incorporating protection mechanisms for overvoltage, electrostatic discharge (ESD), and reverse polarity can enhance circuit reliability, especially in environments with variable conditions.

Utilizing the OPA602AU/2K5G4 in a precision data acquisition system takes advantage of its high-speed, low-distortion characteristics, and stability with capacitive loads, making it ideal for accurately amplifying and conditioning sensor signals prior to digitization. Attention to power supply integrity, thermal management, signal integrity, and protective measures ensures the successful implementation and reliability of the system.
