Texas Instruments OPA365AIDBVRG4

Part No.:: OPA365AIDBVRG4

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: OPA365AIDBVRG4.pdf

Description:: IC OPAMP GP 1 CIRCUIT SOT23-5

In Stock:: 3613

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA365AIDBVRG4 Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
25V/µs
GainBandwidthProduct:
50 MHz
-3dbBandwidth:
-
Current-InputBias:
0.2 pA
Voltage-InputOffset:
100 µV
Current-Supply:
4.6mA
Current-Output/Channel:
65 mA
Voltage-SupplySpan(Min):
2.2 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OPA365AIDBVRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA365AIDBVRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA365AIDBVRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA365AIDBVRG4 information

Views：

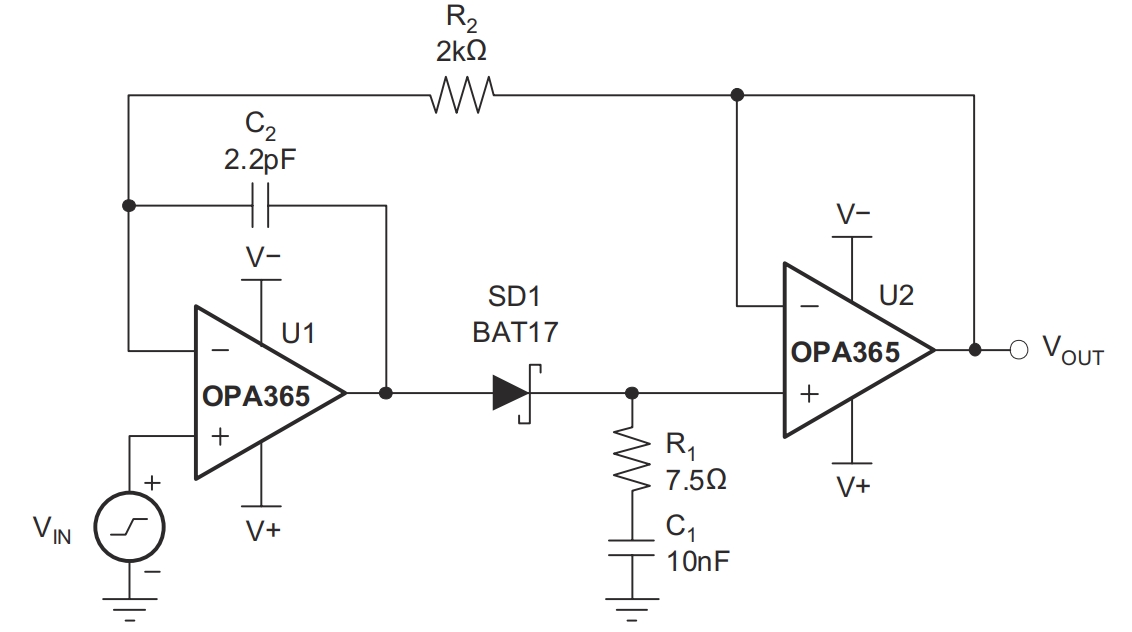

OPA365AIDBVRG4 Typical application Circuitry

OPA365AIDBVRG4

The OPA365AIDBVRG4 is a high-speed, precision operational amplifier (op-amp) notable for its wide bandwidth, rail-to-rail input and output, and single-supply operation. It is particularly suitable for applications that require fast and accurate signal processing, such as in test and measurement equipment, audio processing, and active filters.

Key Features of OPA365AIDBVRG4:

- High-Speed Operation: Ideal for applications requiring rapid signal processing.

- Wide Bandwidth: Suitable for handling a broad range of frequencies.

- Rail-to-Rail Input/Output: Maximizes the dynamic range in single-supply operations.

- Single Supply Operation: Efficient in low-voltage and battery-powered applications.

Application Scenario - Active Filter in a Signal Processing Circuit:

A practical application for the OPA365AIDBVRG4 is in an active filter within a signal processing circuit, commonly used in communication systems and audio equipment.

Circuit Design Details:

1. Power Supply Connections: Connect Pin 5 (V+) of the OPA365AIDBVRG4 to a positive power source, such as +5V, and Pin 4 (V-) to the ground. This single-supply configuration is typical for signal processing applications.

2. Signal Input: Attach the input signal to Pin 3 (non-inverting input) of the OPA365AIDBVRG4.

3. Active Filter Configuration: Implement an active filter by connecting components (resistors R1, R2, and capacitors C1, C2) between Pin 1 (output), Pin 2 (inverting input), and Pin 3. This configuration sets the filter's characteristics - cutoff frequency and gain.

4. Filtered Signal Output: The output at Pin 1 provides the filtered signal, ready for further processing or analysis.

5. Bypass Capacitor: Include a bypass capacitor close to Pin 5 (V+) to stabilize the power supply and reduce noise.

6. Grounding and Decoupling: Ensure proper grounding (Pin 4). Use decoupling capacitors near the power supply pins to minimize noise and power supply fluctuations.

Design Considerations with OPA365AIDBVRG4:

- Stable Power Source: A stable power supply is crucial for consistent performance in signal processing applications.

- Noise Management: Implement strategies to minimize noise, leveraging the high-speed feature of OPA365AIDBVRG4.

- Thermal Management: Consider heat dissipation, especially in compact electronic systems.

- Efficient PCB Layout: Design the PCB to minimize noise and ensure signal integrity, particularly in applications like active filters using OPA365AIDBVRG4.

In summary, the OPA365AIDBVRG4 operational amplifier is highly suitable for signal processing applications where high-speed, precision, and efficient power consumption are required. Designing circuits with the OPA365AIDBVRG4 should focus on a stable power supply, effective noise reduction, thermal management, and an efficient PCB layout to fully utilize the amplifier's capabilities.
