Texas Instruments OPA364IDBVRG4

Part No.:: OPA364IDBVRG4

Manufacturer:: Texas Instruments

Package:: SC-74A, SOT-753

Datasheet:: OPA364IDBVRG4.pdf

Description:: IC OPAMP GP 1 CIRCUIT SOT23-5

In Stock:: 2781

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA364IDBVRG4 Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
1
OutputType:
Rail-to-Rail
SlewRate:
5V/µs
GainBandwidthProduct:
7 MHz
-3dbBandwidth:
-
Current-InputBias:
1 pA
Voltage-InputOffset:
500 µV
Current-Supply:
1.1mA
Current-Output/Channel:
85 mA
Voltage-SupplySpan(Min):
1.8 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

OPA364IDBVRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA364IDBVRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA364IDBVRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA364IDBVRG4 information

Views：

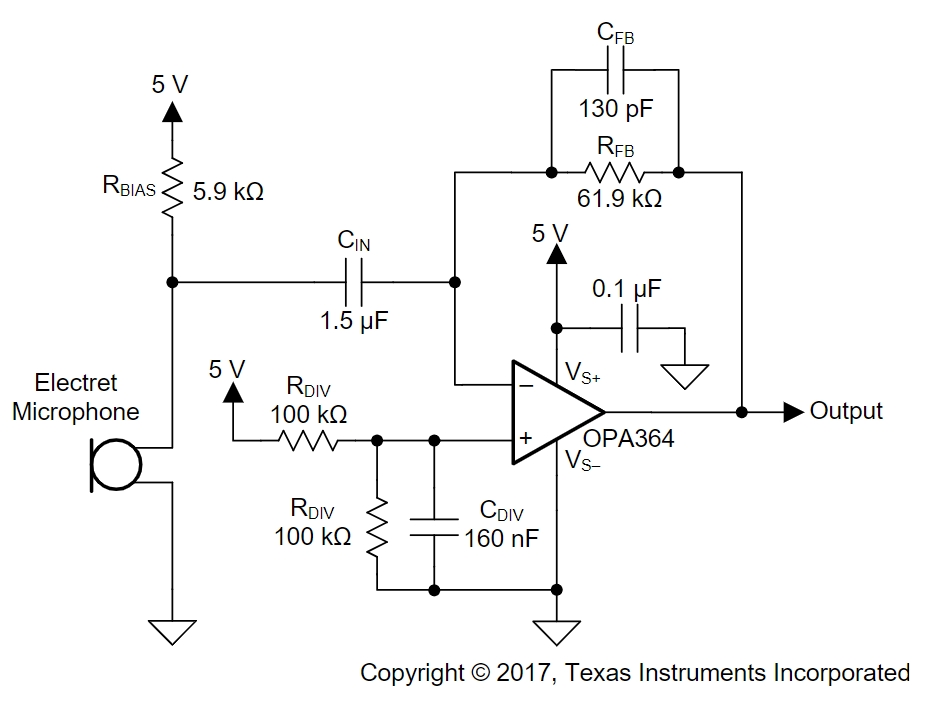

OPA364IDBVRG4 Typical application Circuitry

OPA364IDBVRG4

The OPA364IDBVRG4 is a low-power, rail-to-rail output operational amplifier (op-amp) designed for single-supply operations. It is known for its high performance, including low noise and low distortion, making it ideal for precision applications in battery-powered devices, sensor interfaces, and portable medical equipment.

Aspects Crucial to OPA364IDBVRG4:

- Low Power Consumption: Ideal for portable and battery-powered devices.

- Rail-to-Rail Output: In single-supply operations, maximizes dynamic range.

- High Precision: Ensures accurate signal amplification.

- Single Supply Operation: Efficient in low-voltage environments.

Application Scenario - Portable Electrocardiogram (ECG) Monitor:

A practical application for the OPA364IDBVRG4 is in a portable Electrocardiogram (ECG) monitor, commonly used in healthcare and fitness devices.

Circuit Design Details:

1. Power Supply Connections: Connect Pin 5 (V+) of the OPA364IDBVRG4 to a positive power source, such as a 3V battery, and Pin 4 (V-) to the ground. This single-supply configuration is typical for portable medical devices.

2. ECG Signal Input: Attach the ECG sensor's output to Pin 3 (non-inverting input) of the OPA364IDBVRG4 for accurate signal amplification.

3. Gain Configuration: To provide feedback, connect a resistor (R1) between Pin 2 (the inverted input) and Pin 1 (the output). A second resistor (R2), connected from Pin 2 to the ground, determines the input impedance and gain.

4. Signal Output: The amplified ECG signal is available at Pin 1, ready for further processing or display.

5. Bypass Capacitor: Include a bypass capacitor between Pin 5 (V+) and Pin 4 (V-) near the op-amp to stabilize the power supply and filter out noise.

6. Grounding and Decoupling: Ensure proper grounding (Pin 4). Use decoupling capacitors near the power supply pins to minimize noise and fluctuations.

Design Considerations with OPA364IDBVRG4:

- Stable Power Source: A stable power supply is crucial, especially in portable medical devices where power efficiency is key.

- Noise Management: Implement strategies to minimize noise, taking advantage of the low power feature of OPA364IDBVRG4.

- Thermal Management: Pay attention to heat dissipation in compact devices.

- Efficient PCB Layout: Design the PCB to minimize noise and ensure signal integrity, particularly in applications like portable ECG monitors using OPA364IDBVRG4.

In summary, the OPA364IDBVRG4 operational amplifier is highly suitable for portable medical applications such as ECG monitors, where low power consumption, small size, and efficient signal processing are required. Designing circuits with the OPA364IDBVRG4 should focus on a stable power supply, effective noise reduction, thermal management, and an efficient PCB layout to fully utilize the amplifier's capabilities.
