Texas Instruments OPA2683IDCNR

Part No.:: OPA2683IDCNR

Manufacturer:: Texas Instruments

Package:: SOT-23-8

Datasheet:: OPA2683IDCNR.pdf

Description:: IC OPAMP CFA 2 CIRCUIT SOT23-8

In Stock:: 3470

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2683IDCNR Specifications

Package/Case:
SOT-23-8
Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
AmplifierType:
Current Feedback
NumberofCircuits:
2
OutputType:
Differential
SlewRate:
540V/µs
GainBandwidthProduct:
200 MHz
-3dbBandwidth:
-
Current-InputBias:
3 µA
Voltage-InputOffset:
1.5 mV
Current-Supply:
1.88mA (x2 Channels)
Current-Output/Channel:
150 mA
Voltage-SupplySpan(Min):
5 V
Voltage-SupplySpan(Max):
12 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OPA2683IDCNR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2683IDCNR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2683IDCNR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2683IDCNR information

Views：

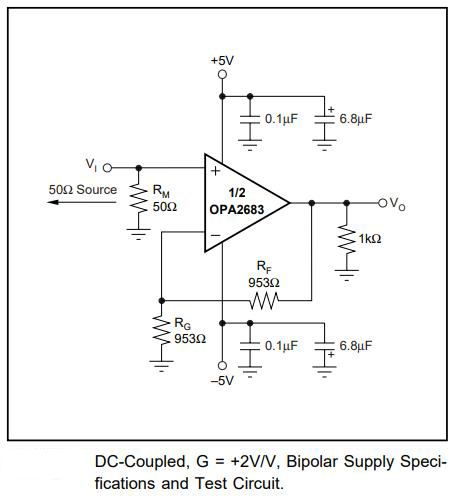

OPA2683IDCNR Typical application Circuitry

OPA2683IDCNR

The OPA2683IDCNR is a high-speed, dual, current-feedback operational amplifier developed by Texas Instruments. It provides high performance for video, communications, and imaging applications due to its wide bandwidth and high slew rate.

Characteristics of OPA2683IDCNR:

1. Wide Bandwidth: The OPA2683IDCNR offers a large bandwidth of 270MHz. This allows the chip to process high-frequency signals effectively.

2. High Slew Rate: With a slew rate of 1600 V/µs, the OPA2683IDCNR is capable of driving large changes in output voltage with minimal delay.

3. Low Distortion: The amplifier exhibits low distortion, making it a good choice for applications where signal integrity is important.

4. Dual Amplifiers: The device consists of two operational amplifiers, facilitating use in differential or stereo signal paths.

Application Scenarios of OPA2683IDCNR:

The OPA2683IDCNR is commonly utilized in applications like video and RGB amplification, test instrumentation, differential line driving, and communications systems.

Circuit Connection - Differential Line Driver:

Let's consider a differential line driver as an application scenario for the OPA2683IDCNR:

1. Power Supply Pins (V+ Pin 8, V- Pin 4): These pins are connected to the power supply, ideally a dual power supply for operation in the first and third quadrants.

2. Non-Inverting Inputs (IN+ Pin 3 for Amplifier A, Pin 5 for Amplifier B): These pins receive the input signals that need to be amplified.

3. Inverting Inputs (IN- Pin 2 for Amplifier A, Pin 6 for Amplifier B): These pins are connected to the output pins through feedback resistors, forming a closed-loop system.

4. Output Pins (OUT Pin 1 for Amplifier A, Pin 7 for Amplifier B): These pins provide the amplified output signals.

5. Feedback Resistors (Connected between the output and inverting input pins of each amplifier): These resistors control the gain of the operational amplifiers.

Design Considerations with OPA2683IDCNR:

1. Bypass Capacitors: Placing bypass capacitors close to the power supply pins is crucial to filter high-frequency power supply noise.

2. Gain Selection: The gain of the amplifier must be set correctly using suitable feedback resistor values to avoid signal distortion.

3. Termination Resistors: Proper termination resistors should be used at the output to match the impedance of the connected cables or devices.

4. Thermal Management: Despite its high efficiency, suitable thermal management techniques should be applied for the OPA2683IDCNR for reliable operation over time.

In conclusion, the OPA2683IDCNR is a highly capable, dual, current-feedback operational amplifier. With its high slew rate and wide bandwidth, it caters to a variety of high-speed signal processing applications, ensuring high-quality output signals.
