Texas Instruments OPA2604AUE4

Part No.:: OPA2604AUE4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:

Description:: IC OPAMP GP 2 CIRCUIT 8SOIC

In Stock:: 2920

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2604AUE4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
-
ProductStatus:
Discontinued at Mosen
AmplifierType:
General Purpose
NumberofCircuits:
2
OutputType:
Differential
SlewRate:
25V/µs
GainBandwidthProduct:
20 MHz
-3dbBandwidth:
-
Current-InputBias:
100 pA
Voltage-InputOffset:
1 mV
Current-Supply:
10.5mA (x2 Channels)
Current-Output/Channel:
35 mA
Voltage-SupplySpan(Min):
9 V
Voltage-SupplySpan(Max):
48 V
OperatingTemperature:
-25°C ~ 85°C
MountingType:
Surface Mount

OPA2604AUE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2604AUE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2604AUE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2604AUE4 information

Views：

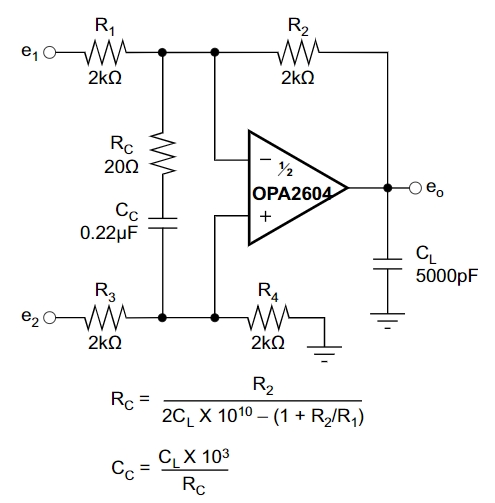

OPA2604AUE4 Typical application Circuitry

OPA2604AUE4

The OPA2604AUE4 is a high-performance audio operational amplifier (op-amp) known for its exceptional sound quality, making it well-suited for audio applications that demand high fidelity. This dual op-amp is recognized for its wide bandwidth, low distortion, and the ability to operate with a wide range of power supplies.

Key Features of OPA2604AUE4:

- High Fidelity Audio Performance: Ideal for use in applications where audio quality is paramount.

- Wide Bandwidth: Enables the op-amp to handle a broad range of audio frequencies effectively.

- Low Distortion: Ensures clean and accurate audio signal reproduction.

- Dual Op-Amp Configuration: Offers the flexibility of two operational amplifiers in a single package.

Application Scenario - High-End Headphone Amplifier:

A practical application for the OPA2604AUE4 is in a high-end headphone amplifier, commonly used in audiophile setups and professional audio studios.

Circuit Design Details:

1. Power Supply Connections: Connect Pin 8 (V+) of the OPA2604AUE4 to a positive power source, such as ±15V, and Pin 4 (V-) to the negative power supply. The ability to operate with dual supplies is typical in high-end audio applications for improved performance.

2. Audio Input Connection: Attach the audio input source (e.g., digital audio player, mixer output) to Pin 3 (non-inverting input of the first amplifier) of the OPA2604AUE4.

3. Gain Setting: Place a resistor (R1) between Pin 1 (output of the first amplifier) and Pin 2 (inverting input of the first amplifier) to set the gain. Include another resistor (R2) from Pin 2 to ground to adjust the input impedance.

4. Audio Output: The processed audio signal is available at Pin 1, which can be connected to the headphone jack or further audio processing stages.

5. Utilizing the Second Amplifier: Employ the second amplifier within the OPA2604AUE4 (Pins 5, 6, and 7) for an additional audio channel or for a balanced headphone output.

6. Grounding and Decoupling: Ensure that Pin 4 is properly grounded. Reducing noise and enhancing audio quality can be achieved by decoupling capacitors close to the power supply pins.

OPA2604AUE4 Design Considerations:

- Consistent Power Source: To get the best audio performance, make sure the power supply is steady and clean.

- Noise Reduction: Implement strategies to minimize noise, leveraging the low distortion feature of the OPA2604AUE4.

- Thermal Management: Be mindful of heat dissipation, as high-performance op-amps can generate significant heat.

- Efficient PCB Layout: Design the PCB to minimize noise and ensure signal integrity, especially important in high-fidelity audio applications like headphone amplifiers using OPA2604AUE4.

In summary, the OPA2604AUE4 operational amplifier is highly suitable for high-fidelity audio applications such as high-end headphone amplifiers. When designing circuits with the OPA2604AUE4, focusing on a stable power supply, effective noise reduction, thermal management, and an efficient PCB layout is essential to fully utilize the amplifier's capabilities.
