Texas Instruments OPA2350UAG4

Part No.:: OPA2350UAG4

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: OPA2350UAG4.pdf

Description:: IC CMOS 2 CIRCUIT 8SOIC

In Stock:: 2912

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

OPA2350UAG4 Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tube
Series:
MicroAmplifier™
ProductStatus:
Discontinued at Mosen
AmplifierType:
CMOS
NumberofCircuits:
2
OutputType:
Rail-to-Rail
SlewRate:
22V/µs
GainBandwidthProduct:
38 MHz
-3dbBandwidth:
-
Current-InputBias:
0.5 pA
Voltage-InputOffset:
150 µV
Current-Supply:
5.2mA (x2 Channels)
Current-Output/Channel:
40 mA
Voltage-SupplySpan(Min):
2.7 V
Voltage-SupplySpan(Max):
5.5 V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

OPA2350UAG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including OPA2350UAG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for OPA2350UAG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

OPA2350UAG4 information

Views：

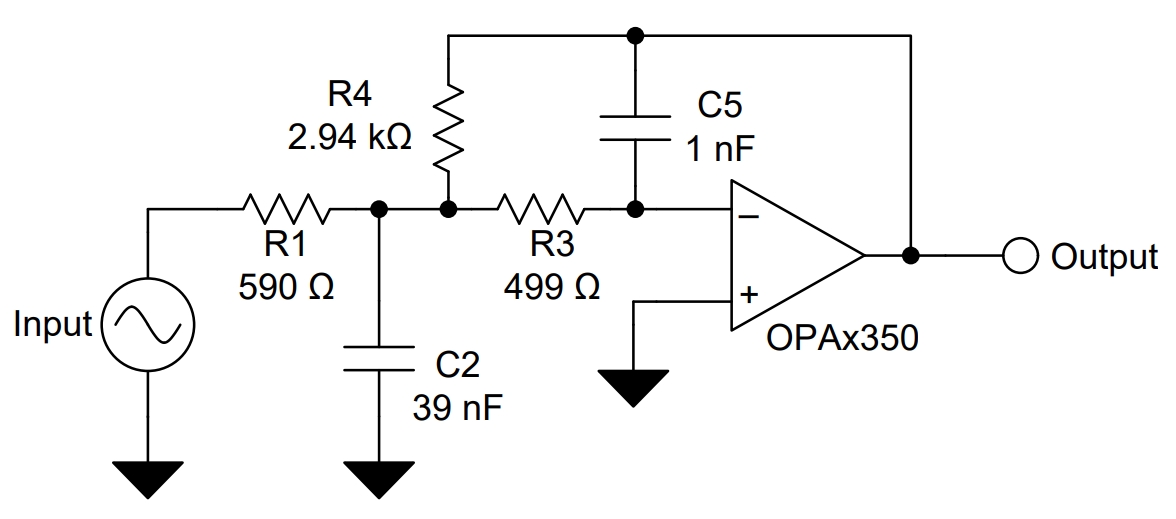

OPA2350UAG4 Typical application Circuitry

OPA2350UAG4

The OPA2350UAG4 is a dual, high-speed operational amplifier (op-amp) known for its wide bandwidth and rail-to-rail input/output capabilities. It is especially well-suited for high-speed signal processing, ADC drivers, active filters, and other applications that demand quick response times and a broad dynamic range.

Principal attributes of OPA2350UAG4:

- High-Speed Operation: Fit for uses where quick signal processing is necessary.

- Wide Bandwidth: Ideal for handling high-frequency signals.

- Rail-to-Rail Input/Output: Facilitates full dynamic range usage, beneficial in low-voltage applications.

- Dual Op-Amp Configuration: Provides the advantage of two operational amplifiers in one package.

Application Scenario - High-Speed Data Acquisition System:

A practical application for the OPA2350UAG4 is in a high-speed data acquisition system, commonly used in scientific research and industrial automation.

Circuit Design Details:

1. Power Supply Connections: Connect Pin 8 (V+) of the OPA2350UAG4 to a positive power source, such as a 5V supply, and Pin 4 (V-) to the ground. This setup is typical for high-speed electronics.

2. Signal Input Connection: Attach the input signal (e.g., from a sensor) to Pin 3 (non-inverting input of the first amplifier) of the OPA2350UAG4. This configuration allows for the initial amplification stage of the signal.

3. Gain Control: Place a resistor (R1) between Pin 1 (output of the first amplifier) and Pin 2 (inverting input of the first amplifier) to set the gain. Include another resistor (R2) from Pin 2 to the ground to adjust the input impedance.

4. Signal Output: The processed signal is available at Pin 1, which can be directed to an analog-to-digital converter or further processing units.

5. Second Amplifier Utilization: Use the second amplifier in the OPA2350UAG4 (Pins 5, 6, and 7) for additional signal processing or for handling another channel.

6. Grounding Protocol: Ensure that Pin 4 is properly grounded to minimize noise and stabilize the operation.

Design Considerations with OPA2350UAG4:

- Stable Power Source: A stable and clean power supply is crucial for the optimal performance of OPA2350UAG4, especially in high-speed applications.

- Noise Management: Implement noise reduction strategies, making the most of the high-speed and wide bandwidth features of OPA2350UAG4.

- Thermal Stability: Be aware of the thermal environment, as temperature changes can affect the performance of high-speed op-amps.

- Efficient PCB Layout: Design the PCB to minimize noise and ensure signal integrity, particularly important in high-precision applications like data acquisition systems using OPA2350UAG4.

In summary, the OPA2350UAG4 operational amplifier is highly suitable for high-speed, high-precision applications such as data acquisition systems. When designing circuits with the OPA2350UAG4, focusing on a stable power supply, effective noise reduction, thermal management, and an efficient PCB layout is essential to fully harness the capabilities of the amplifier.
